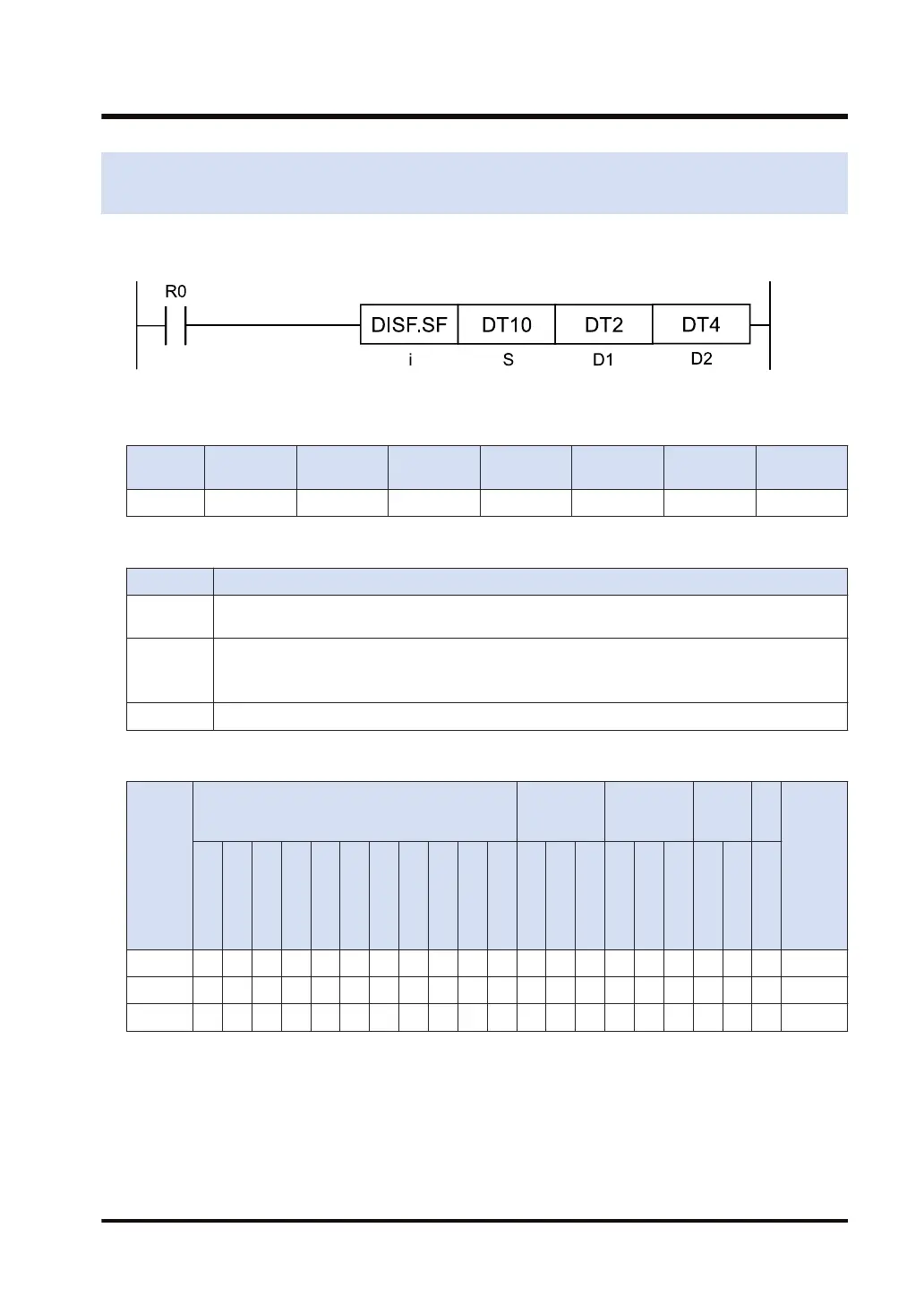

Panasonic FP7 Series Command Reference Manual

11.24 DISF (Separation of Mantissa and Exponent of Single-precision
or Double-precision Real Number Data)
■
Ladder diagram
■
Available operation units (●: Available)
Operatio
n unit
bit US SS UL SL SF DF
i ● ●
■
List of operands
Operand Description
S
Starting address of the device where the target data to be separated is stored or the constant
(data format: according to the operation unit)
D1
Starting address of the device where mantissa is stored (data format: according to the operation
unit)
Range (common to SF and DF): 0.5 or more, and less than 1.0 as absolute value)
D2 Starting address of the device where exponent is stored (data format: signed 32-bit integer)
■
Available devices (●: Available)
Operan
d
16-Bit device:
32-Bit
device:
Integer
Real
numbe
r
St
rin
g
Index
modifie
r
(Note 1)
W
X
W
Y
W
R
W
L
W
S
S
D
D
T
L
D
U
M
WI
W
O
TS
C
S
TE
C
E
IX
(N
ote
2)
K Ｕ H
SF
(N
ote
3)
D
F
(N
ote
4)
" "
S ● ● ● ● ● ● ● ● ● ● ● ● ● ● ●
D1 ● ● ● ● ● ● ● ● ● ● ● ●
D2 ● ● ● ● ● ● ● ● ● ● ● ●
(Note 1) Only 16-bit devices, and 32-bit devices can be modified (real number constants cannot be specified).
(Note 2) Index register (I0 to IE)
(Note 3) Can be specified only when the operation unit is a single-precision floating point real number (SF).
(Note 4) Can be specified only when the operation unit is a double-precision floating point real number (DF).
11.24 DISF (Separation of Mantissa and Exponent of Single-precision or
Double-precision Real Number Data)
WUME-FP7CPUPGR-12 11-49
