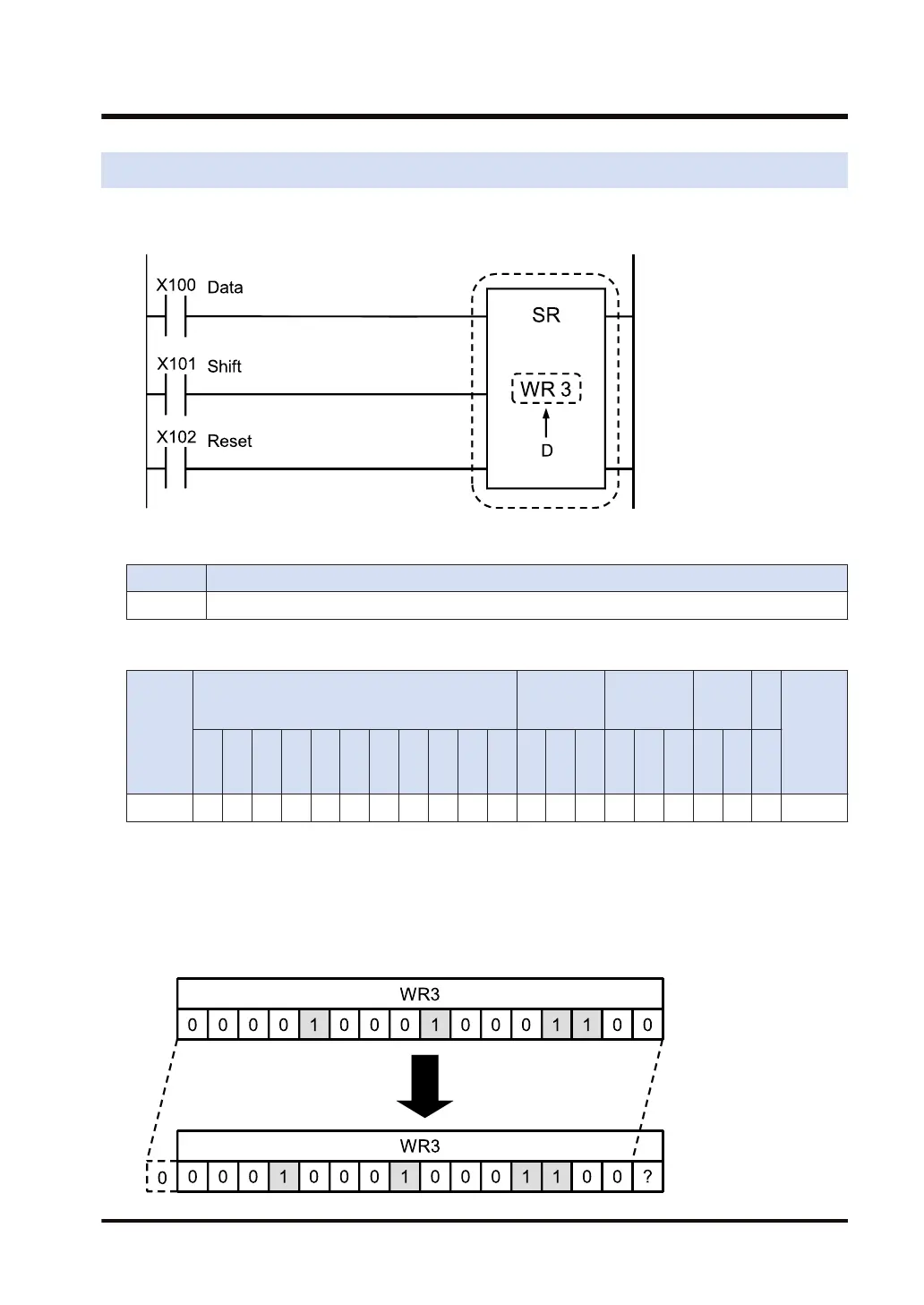

3.23 SR (Shift Register)
Ladder diagram
List of operands
Operand Description
D Shifted device
Devices that can be specified (indicated by ●)
Operan
d
16-Bit device:
32-Bit
device:
Integer
Real
numbe
r
St
rin
g
Index
modifie
r
W
X
W
Y
W
R
W
L
W
S
S
D
D
T
L
D
U
M
WI
W
O
TS
C
S
TE
C
E
IX K H SF
D
F
" "
D
Outline of operation
This instruction moves (i.e., shifts) the contents of the specified register WR (specified
operation unit) to the left by one bit.
1) When the shift input turns ON (rises), shifts the contents of WR to the left by one
bit.
3.23 SR (Shift Register)
WUME-FP7CPUPGR-12 3-69
