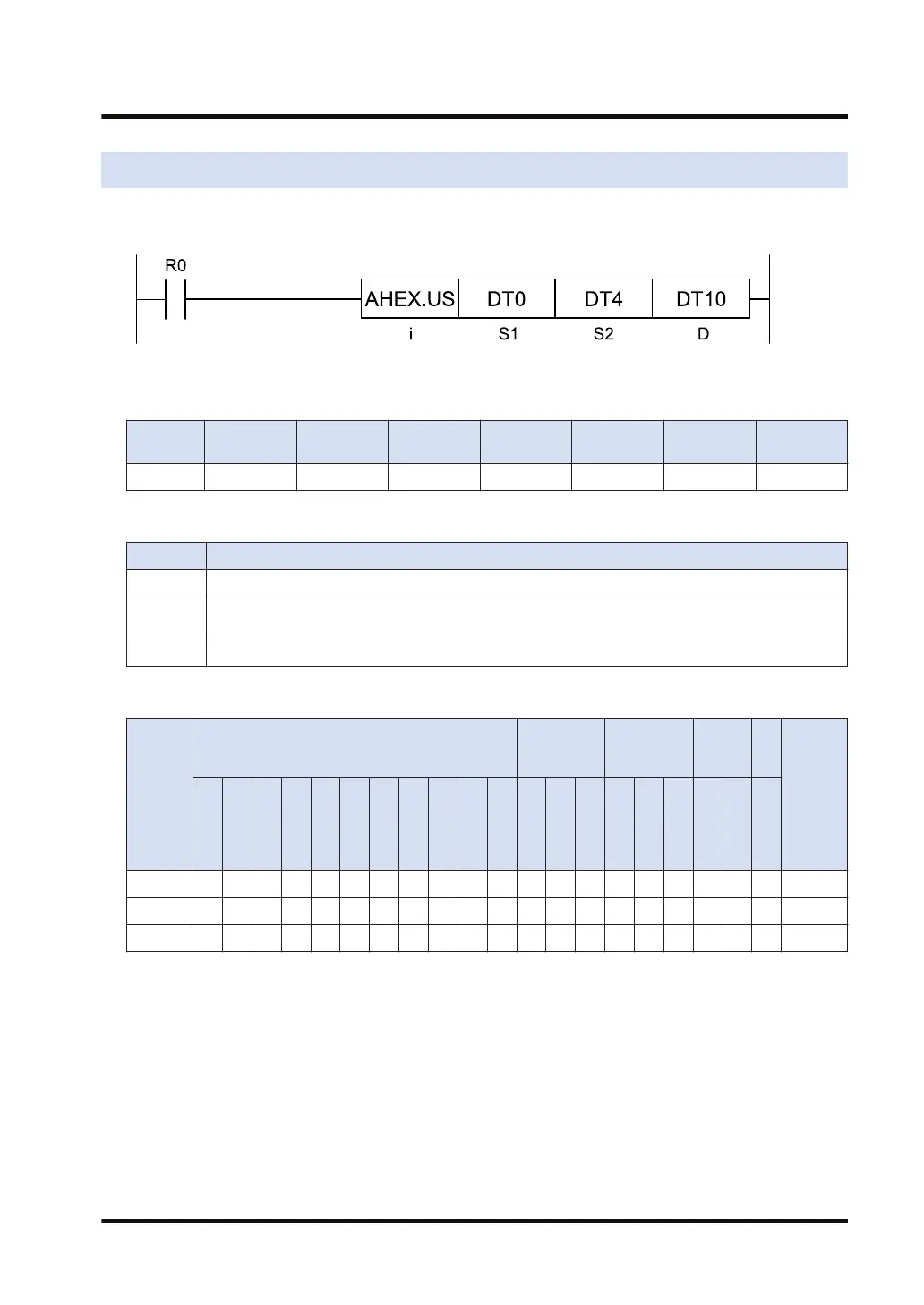

14.4 AHEX (Conversion: Hexadecimal ASCII → HEX)
■
Ladder diagram
■
Available operation units (●: Available)
Operatio
n unit
bit US SS UL SL SF DF
i ● ● ● ●
■
List of operands
Operand Description
S1 Starting number of the area that stores an ASCII code
S2
The area that stores the number of ASCII codes (number of characters) to be converted, or the
constant
D Starting number of the area that stores the hexadecimal figure as the conversion result
■
Available devices (●: Available)
Operan
d
16-Bit device:
32-Bit
device:
Integer
Real
numbe
r
St
rin
g
Index
modifie
r
W
X
W
Y
W
R
W
L
W
S
S
D
D
T
L
D
U
M
WI
W
O
TS
C
S
TE
C
E
IX
K
(N
ote
1)
Ｕ
(N
ote
2)
H SF
D
F
" "
S1 ● ● ● ● ● ● ● ● ●
S2 ● ● ● ● ● ● ● ● ● ●
D ● ● ● ● ● ● ●
(Note 1) Can be specified only when the operation unit is signed integer (SS, SL).
(Note 2) Can be specified only when the operation unit is unsigned integer (US, UL).
■
Outline of operation
● This instruction converts the ASCII code string into a hexadecimal figure.
● The ASCII code stored in the area specified by [S1] is converted into a hexadecimal figure
and stored in the area specified by [D].
● The number of ASCII codes (number of characters) to be converted is specified by [S2].
● The conversion results are stored in byte units.
● If the number of characters to be converted is an odd number, Bits 0 to 3 of the final data
(bytes) of the conversion result are padded with '0'.
14.4 AHEX (Conversion: Hexadecimal ASCII → HEX)
WUME-FP7CPUPGR-12 14-13
