Panasonic FP7 Series Command Reference Manual

3.9 ANS (AND stack)
■

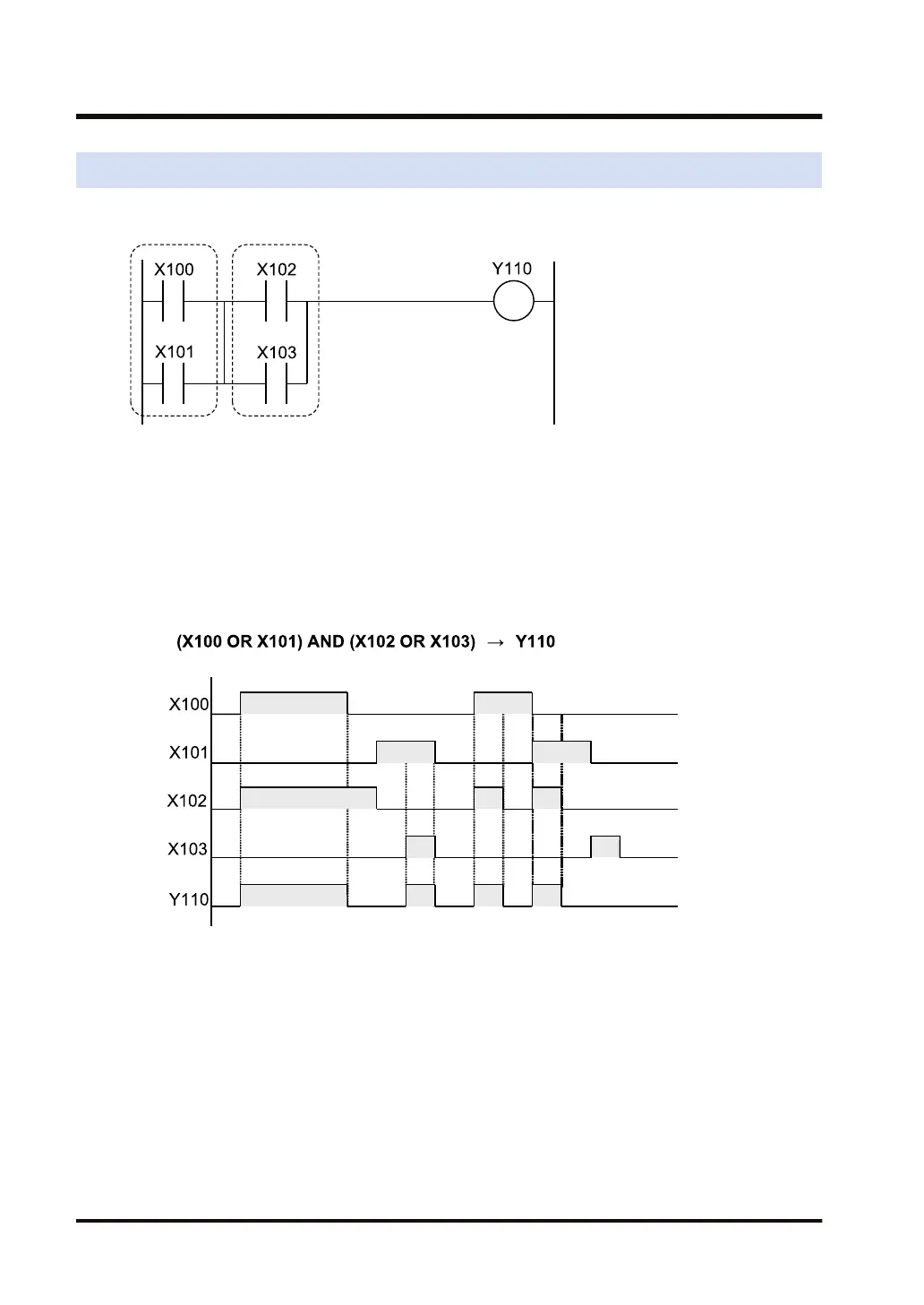

Ladder diagram
■
Outline of operation
● Blocks that were connected in parallel are connected in series.
● Each block should start with the ST instruction.
■
Operation Example
In the above ladder diagram, when X100 or X101 is ON and X102 or X103 is ON, the signal is
output to Y110.
■
When blocks are consecutive
● When blocks are consecutive, consider a block division as follows.
3.9 ANS (AND stack)
3-18 WUME-FP7CPUPGR-12
