Panasonic FP7 Series Command Reference Manual

5.16 LCWT (Specified PB Local Device Write)
■

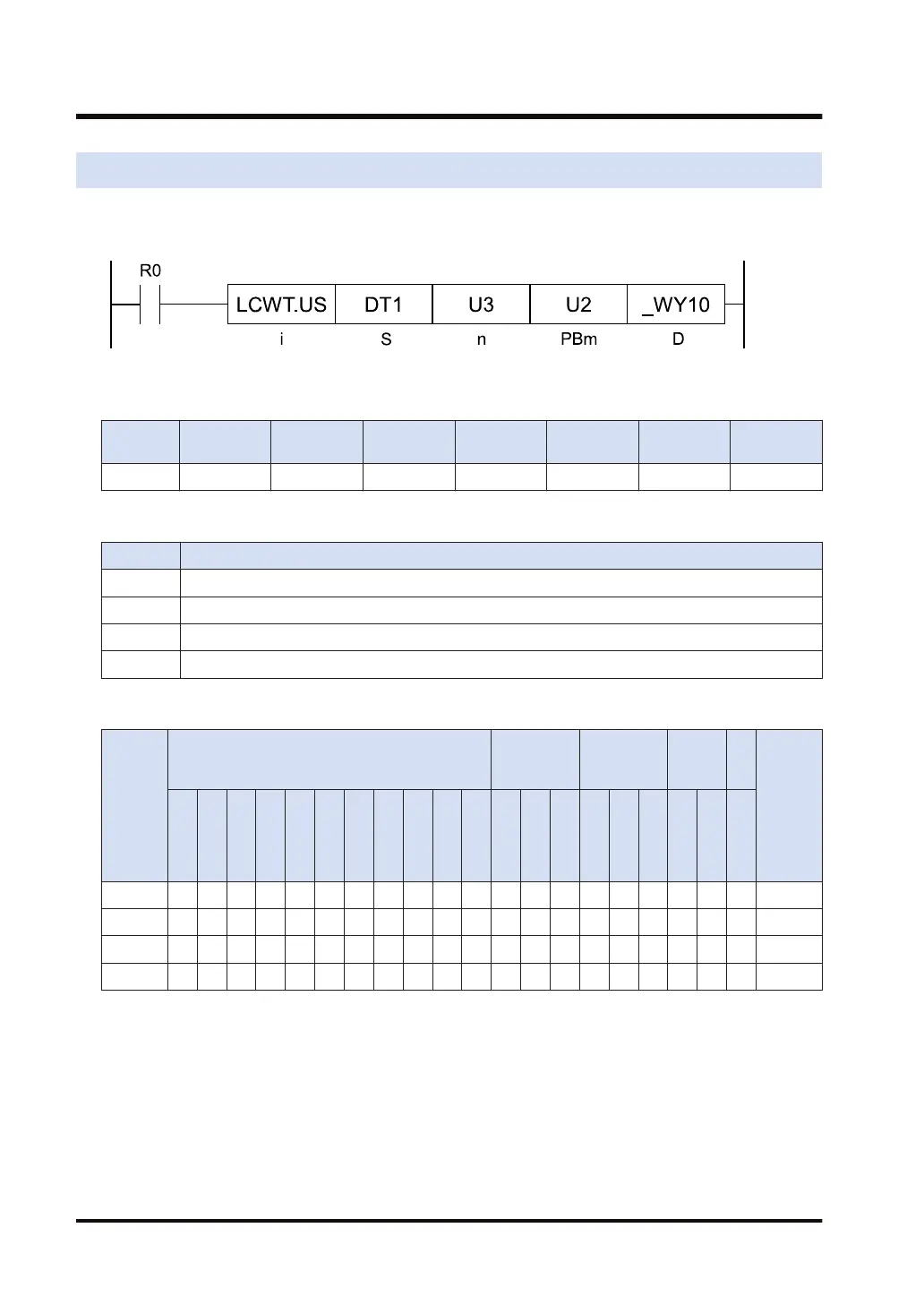

Ladder diagram
■
Available operation units (●: Available)
Operatio
n unit
bit US SS UL SL SF DF
i ● ● ● ●
■
List of operands
Operand Description
S Starting address of a source device
n Number of written devices (Available range: 1 to 65535)
PBm Destination PB number (Available range: 1 to Max. number of PB)
D The starting address of a destination local device
■
Available devices (●: Available)
Operan
d
16-Bit device:
32-Bit
device:
Integer
Real
numbe
r
St
rin
g
Index
modifie
r
(Note 1)
W
X
W
Y
W
R
W
L
W
S
S
D
D
T
L
D
U
M
WI
W
O
TS
C
S
TE
C
E
IX
(N
ote
2)
K Ｕ H SF
D
F
" "
S ● ● ● ● ● ● ● ● ● ●
n ● ● ● ● ● ● ● ● ●
PBm ● ● ● ● ● ● ● ● ●
D ● ● ● ● ● ● ● ●
(Note 1) Only 16-bit devices and 32-bit devices can be modified. (Integer constants cannot be specified.)
(Note 2) Index register (I0 to IE)
■
Outline of operation
● This instruction writes the data for [n] from the area specified by [S] to the area specified by
[PBm]:[D] (local device) and subsequent areas all at once.
● Either a global device or a local device (of the PB in which this instruction is executed) can
also be specified for [S].
5.16 LCWT (Specified PB Local Device Write)
5-36 WUME-FP7CPUPGR-12
