13.9 WDTRES (Watchdog Timer Reset)

■

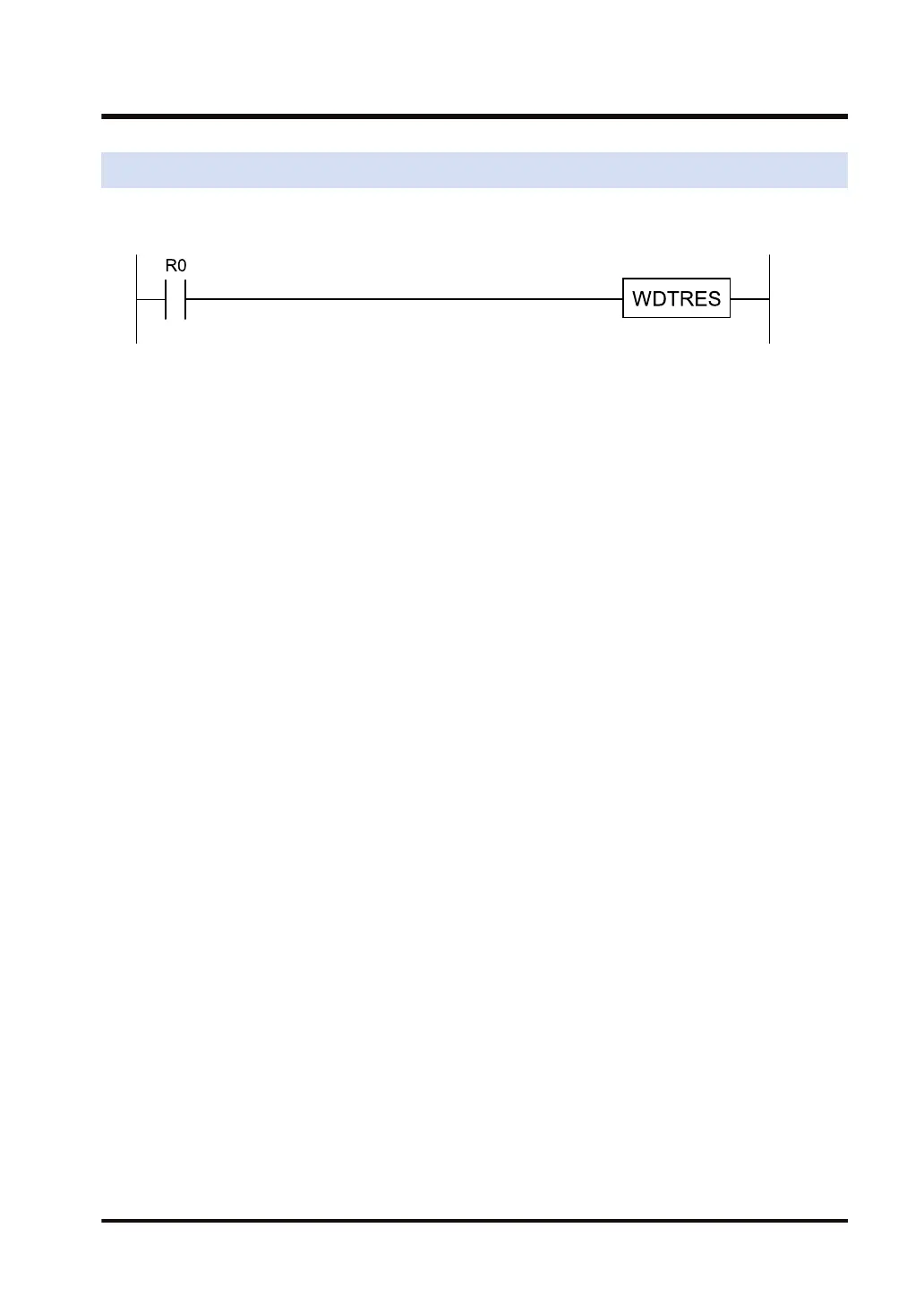

Ladder diagram

■

Outline of operation

The watchdog timer is reset.

■

Flag operations

No change occurs.

13.9 WDTRES (Watchdog Timer Reset)

WUME-FP7CPUPGR-12 13-15
