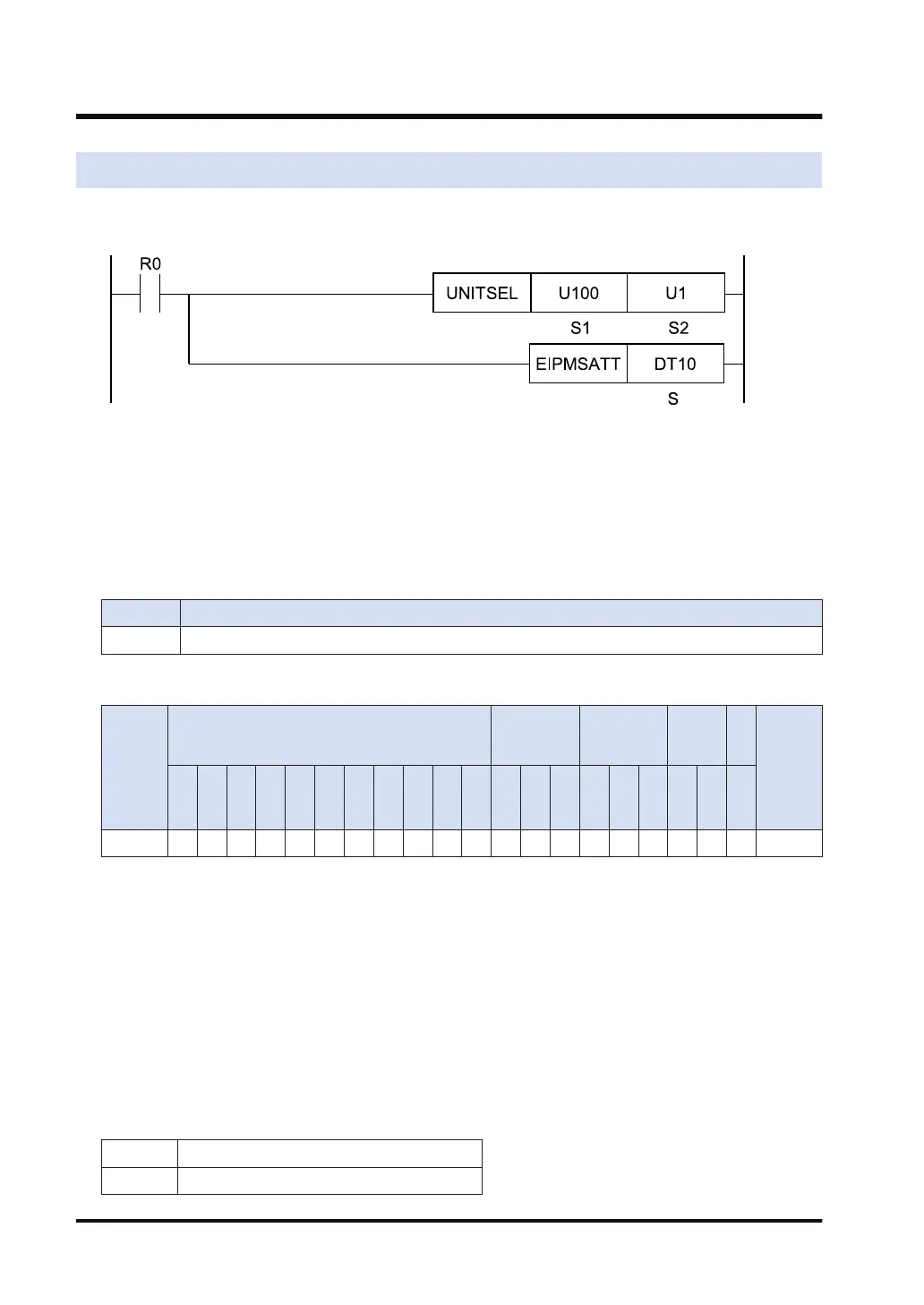

17.30 EIPMSATT (EIP Message Send Destination Setting)
Ladder diagram
(Note 1) The above figure shows the case that S1=U100 (built-in ET-LAN in the CPU unit) and S2=U1
(connection number 1) are specified by the UNITSEL instruction.
Available operation units
No operation unit.
List of operands
Operand Description
S Specify the starting device number that stores the message communication targets.
Devices that can be specified (indicated by ●)
Operan
d
16-Bit device:
32-Bit
device:
Integer
Real
numbe
r
St
rin
g
Index
modifie
r
W
X
W
Y
W
R
W
L
W
S
S
D
D
T
L
D
U
M
WI
W
O
TS
C
S
TE
C
E
IX K H SF
D
F
" "
S
Outline of operation
This instruction specifies the Ethernet unit to be targeted by the UNITSEL instruction.
It sets the destination data of EIPMSEND instruction in the send buffer.
The EIPMBODY instruction is used in combination with the EIPMSATT and EIPMSEND
instruction.
When this instruction is called while message communication is being performed, no
operation is performed.
Processing
Sets the destination data specified by [S] in the send buffer.
Destination data
S 1st byte of IP address
S+1 2nd byte of IP address
17.30 EIPMSATT (EIP Message Send Destination Setting)
17-152 WUME-FP7CPUPGR-12
