Panasonic FP7 Series Command Reference Manual

17.36 EIPSTOP (Cyclic Communication Stop Request)
■

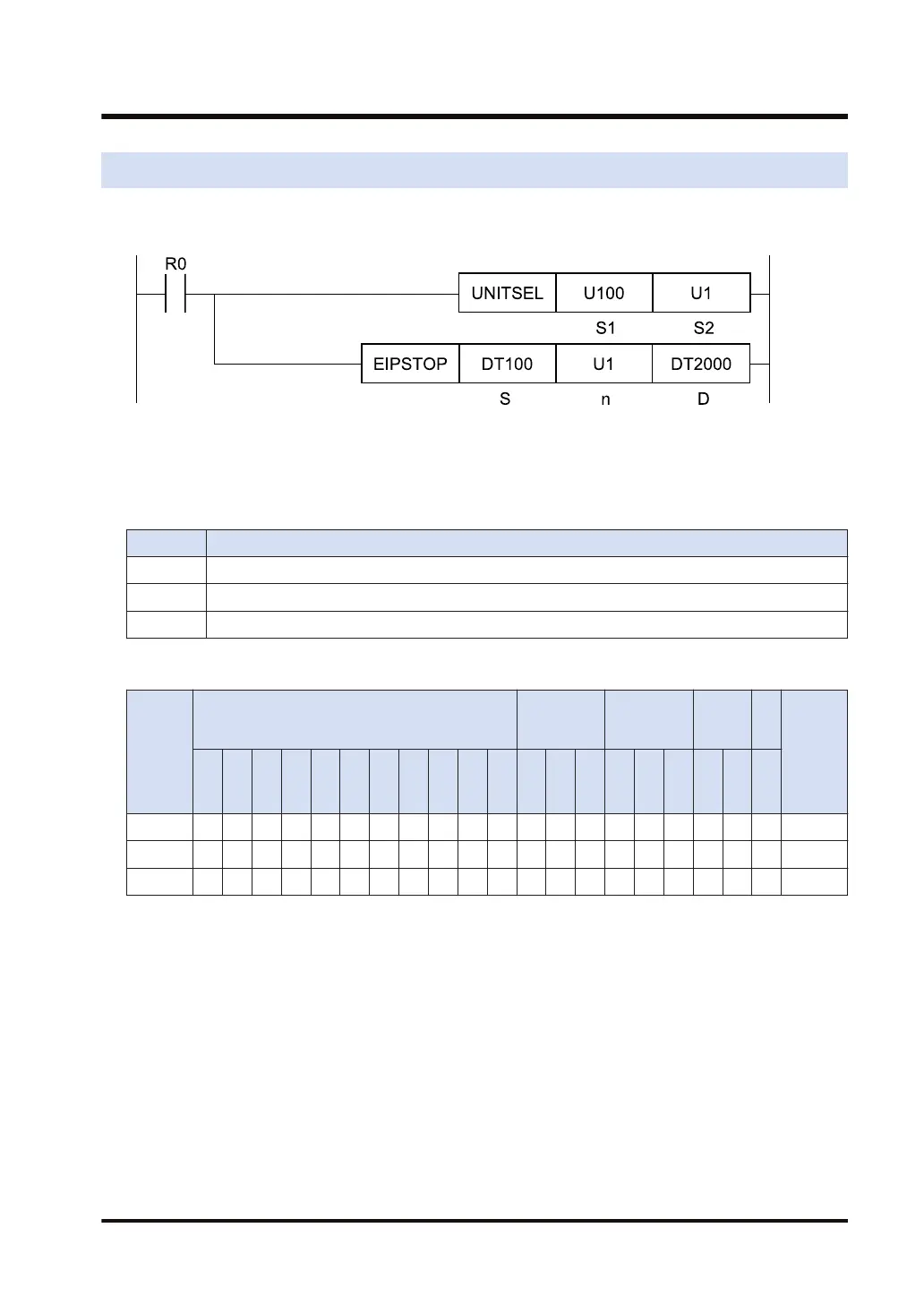

Ladder diagram
(Note 1) The above figure shows the case that S1=U100 (built-in ET-LAN in the CPU unit) and S2=U1
(connection number 1) are specified by the UNITSEL instruction.
■
List of operands
Operand Description
S Specify the starting address of the device area that stores the stop request node number table.
n Specify the device address storing the maximum node number (1 to 256) or a constant.
D Specify the device address storing execution results.
■
Devices that can be specified (indicated by ●)
Operan
d
16-Bit device:
32-Bit
device:
Integer
Real
numbe
r
St
rin
g
Index
modifie
r
W
X
W
Y
W
R
W
L
W
S
S
D
D
T
L
D
U
M
WI
W
O
TS
C
S
TE
C
E
IX K Ｕ H SF
D
F
" "
S1 ● ● ● ● ● ● ●
S2 ● ● ● ● ● ● ● ● ●
D ● ● ● ● ● ● ●
■
Processing
● The instruction requests the stopping of the EtherNet/IP cyclic communication according to
the stop request node number table that is stored in the area that starts from [S].
● For [n], specify the maximum node number among the nodes to which the stop of the
EtherNet/IP cyclic communication is requested.
● The execution result is stored in [D].
■
Operand [S] setting
● Specify the starting address of the device area that stores the stop request node number
table.
● Use a user program to create the stop request node number table. Turn ON the bits (that is,
set the bits to 1) that correspond to the node numbers to which the stop request is made.
Example) When [S] is set to WR100 and the stop request is made to nodes number 1 and 2
17.36 EIPSTOP (Cyclic Communication Stop Request)
WUME-FP7CPUPGR-12 17-183
