Panasonic FP7 Series Command Reference Manual

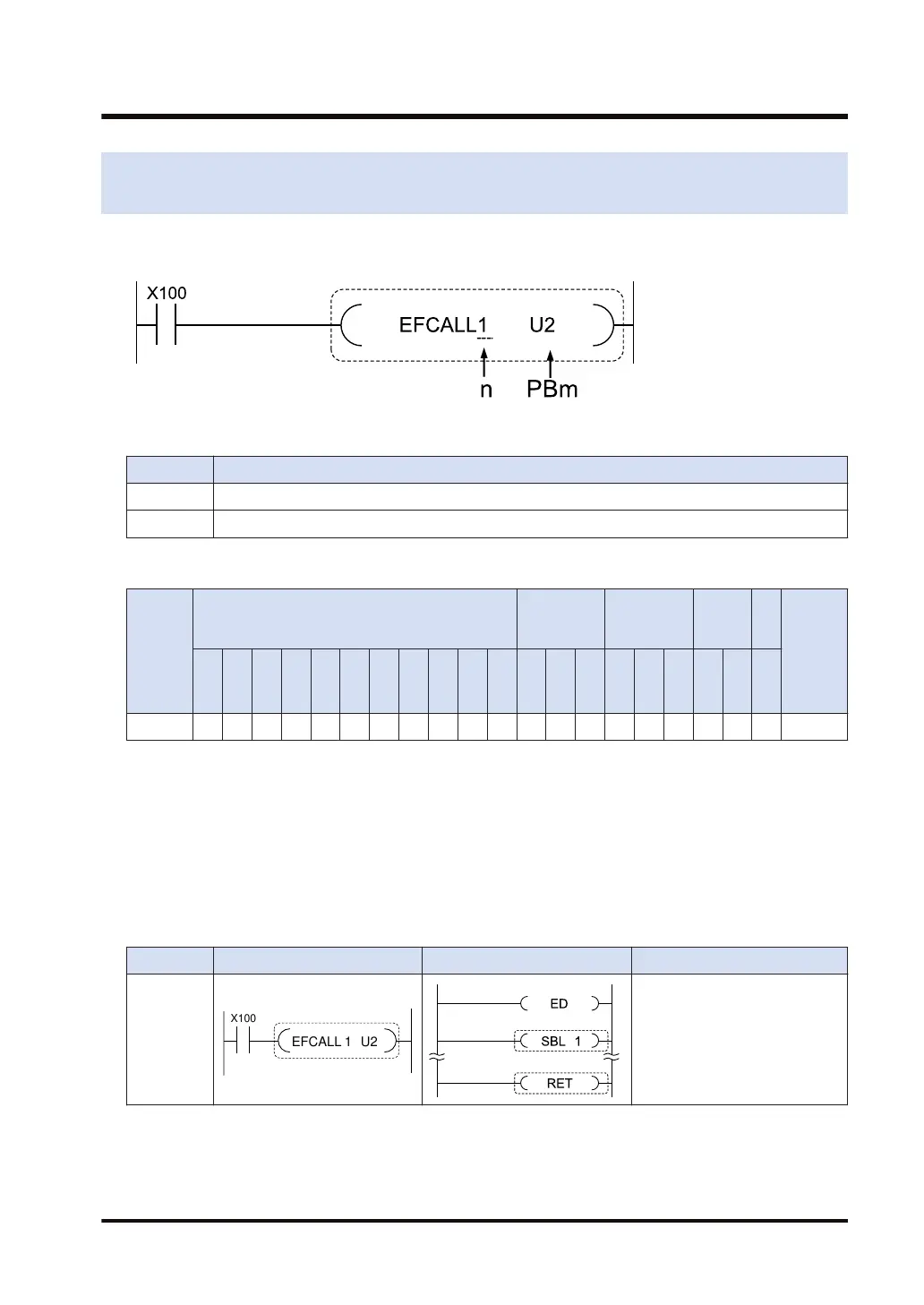

3.38 EFCALL (Forced Output OFF Type Subroutine Call (with PB No.
Specification))
■
Ladder diagram
■
List of operands
Operand Description
n Subroutine number: 0 to 65535/1 PB
PBm Target PB number: The number of PB where the subroutine specified by n is stored
■
Devices that can be specified (indicated by ●)
Operan
d
16-Bit device:
32-Bit
device:
Integer
Real
numbe
r
St
rin
g
Index
modifie
r
W
X
W
Y
W
R
W
L
W
S
S
D
D
T
L
D
U
M
WI
W
O
TS
C
S
TE
C
E
IX K Ｕ H SF
D
F
" "
PBm ● ● ● ● ● ● ●
■
Outline of operation
● When the execution condition is ON, the SBLn subroutine of PBm is called.
● When the subroutine program is processed up to the "RET" instruction, the program will
return to the address next to the "EFCALL" instruction in the main program, and continue
with processing of the main program.
● The local device of the called PBm is used as the local device in the called subroutine.
■
Operation Example
PB PB1 program PB2 program Description
Program
example
X100
EFCALL 1 U2
● Instructions between SBL
and RET are called and
executed when the EFCALL
instruction is executed.
● When RET is executed,
program returns to the
calling EFCALL instruction.
3.38 EFCALL (Forced Output OFF Type Subroutine Call (with PB No.
Specification))
WUME-FP7CPUPGR-12 3-115
