17.34 CIPMGET (CIP Message Data Getting)
■

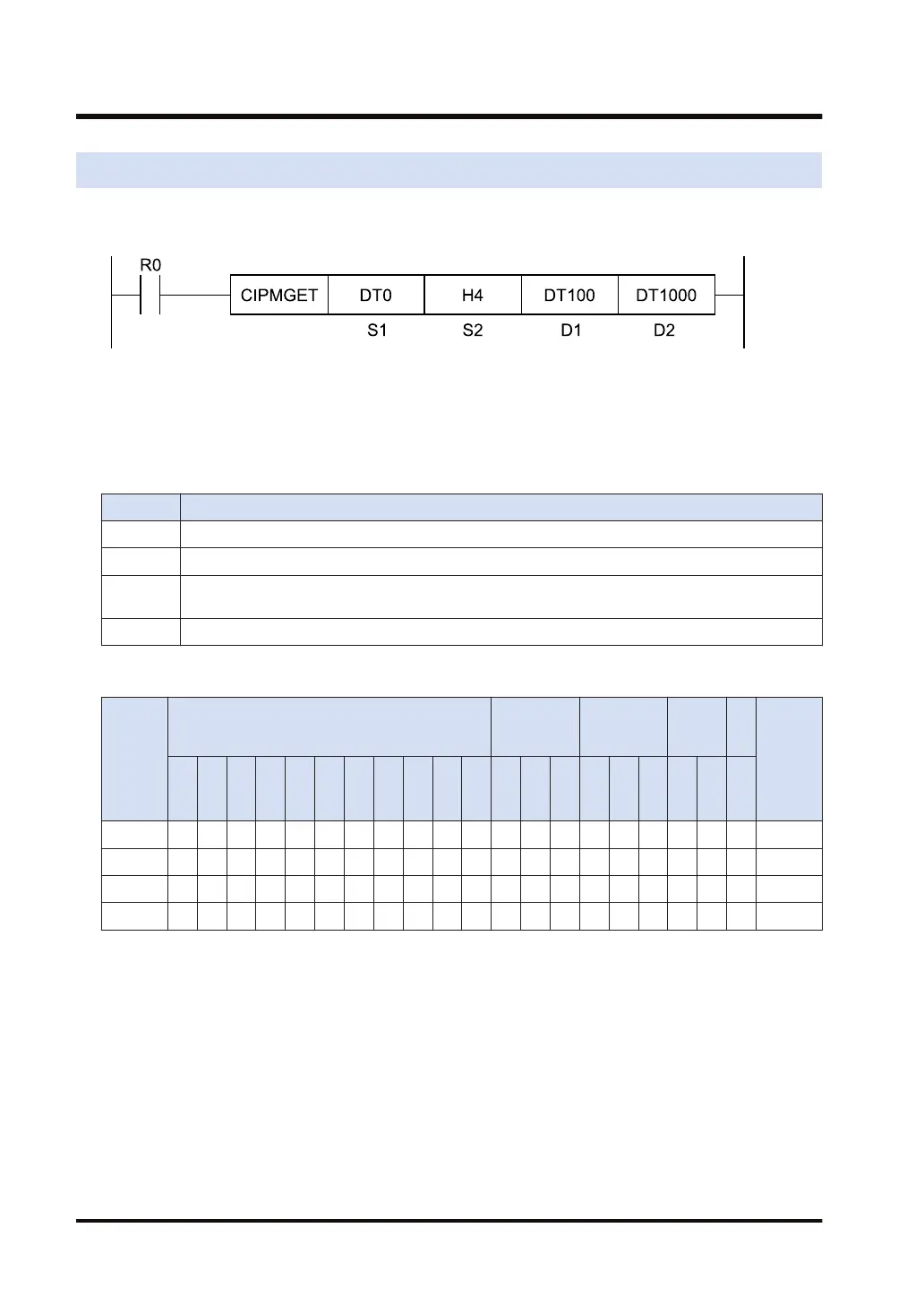

Ladder diagram
■
Available operation units
No operation unit.
■
List of operands
Operand Description
S1 Specify the starting device of received data (CIP data type).
S2 Specify the data format of acquired data or the device storing it.
D1
Specify the device storing the byte offset position from the beginning of the received data which
specifies the acquisition position.
D2 Specify the starting device of the device storing acquired data.
■
Devices that can be specified (indicated by ●)
Operan
d
16-Bit device:
32-Bit
device:
Integer
Real
numbe
r
St
rin
g
Index
modifie
r
W
X
W
Y
W
R
W
L
W
S
S
D
D
T
L
D
U
M
WI
W
O
TS
C
S
TE
C
E
IX K Ｕ H SF
D
F
" "
S1 ● ● ● ● ● ● ●
S2 ● ● ● ● ● ● ● ● ●
D1 ● ● ● ● ● ● ●
D2 ● ● ● ● ● ● ●
■
Outline of operation
● This instruction acquires string data and numerical data from the data received in the
message communication of CIP.
● Data other than string data is read from lower bytes.
■
Processing
● Data is separated and transferred to the memory specified by [D2] according to the number
of data specified by [S2] from the position shifted by the offset of [D1] from the CIP message
receive data specified by [S1].
S1: Specify the starting device of CIP message receive data.
Example) S1 = DT0
