13.14 PERRD (Acquiring Error/Warning in the Positioning Unit)
■

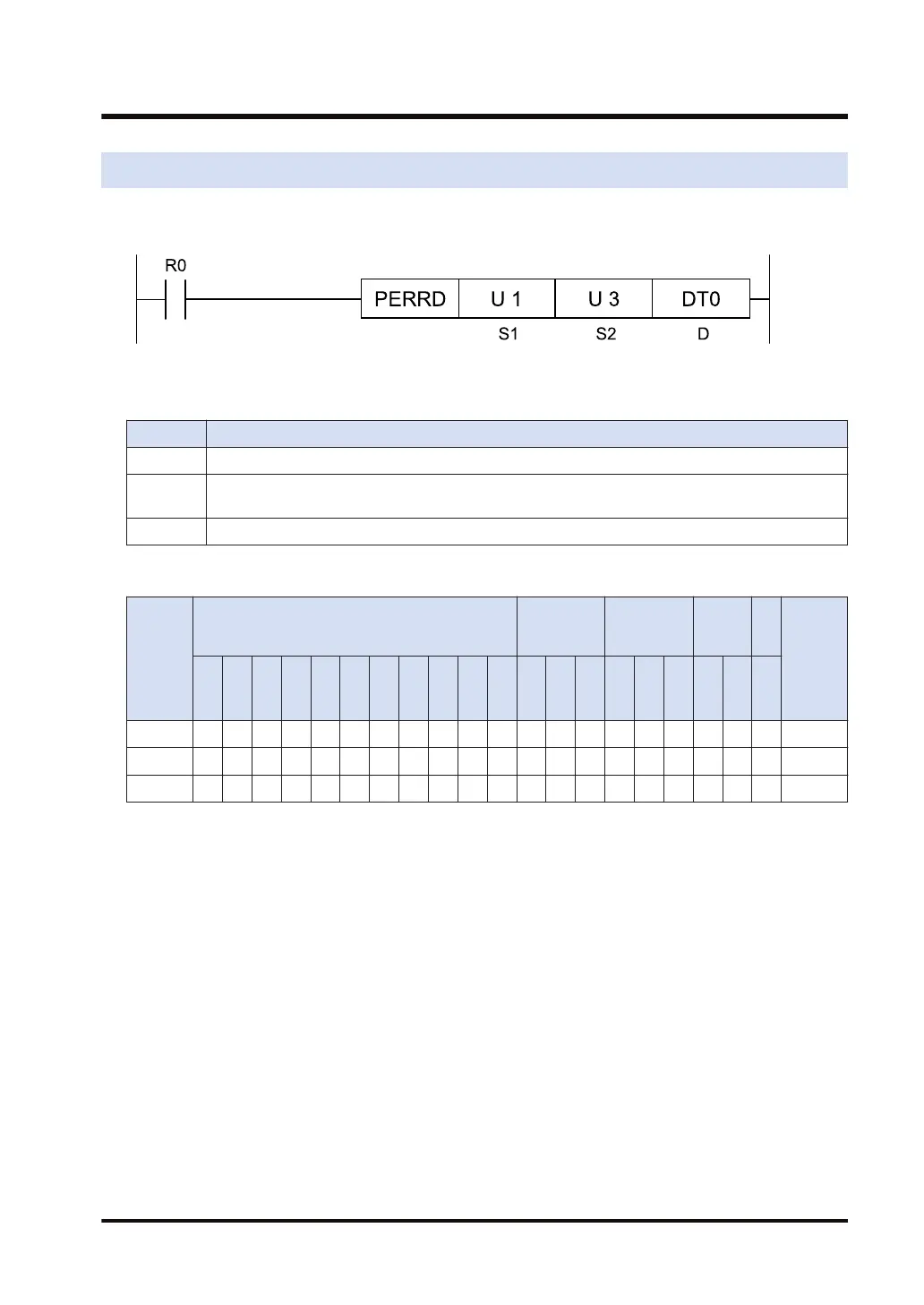

Ladder diagram
■
List of operands
Operand Description
S1 Slot number where the positioning unit is attached (unsigned 16-bit integer)
S2
Axis number to read the error/warning information (unsigned 16-bit integer); 1 to 4: Axis 1 to 4; 8:
Virtual axis
D Device address to store the error/warning code (unsigned 16-bit integer)
■
Available devices (●: Available)
Operan
d
16-Bit device:
32-Bit
device:
Integer
Real
numbe
r
St
rin
g
Index
modifie
r
W
X
W
Y
W
R
W
L
W
S
S
D
D
T
L
D
U
M
WI
W
O
TS
C
S
TE
C
E
IX K Ｕ H SF
D
F
" "
S1 ● ● ● ● ● ● ● ● ● ● ● ●
S2 ● ● ● ● ● ● ● ● ● ● ● ●
D ● ● ● ● ● ● ● ● ●
■
Outline of operation
● For the axis number of the positioning units specified by [S1] and [S2], the error codes and
warning codes stored in each annunciation buffer 1 are acquired.
● The error codes are stored in the area specified by [D], and warning codes in the area
specified by [D+1].
■
Example of processing
● Error codes and warning codes for the third axis of the positioning unit attached to the slot
number 1 are read.
13.14 PERRD (Acquiring Error/Warning in the Positioning Unit)
WUME-FP7CPUPGR-12 13-23
