Panasonic FP7 Series Command Reference Manual

10.1 SRC (Data Search)
■

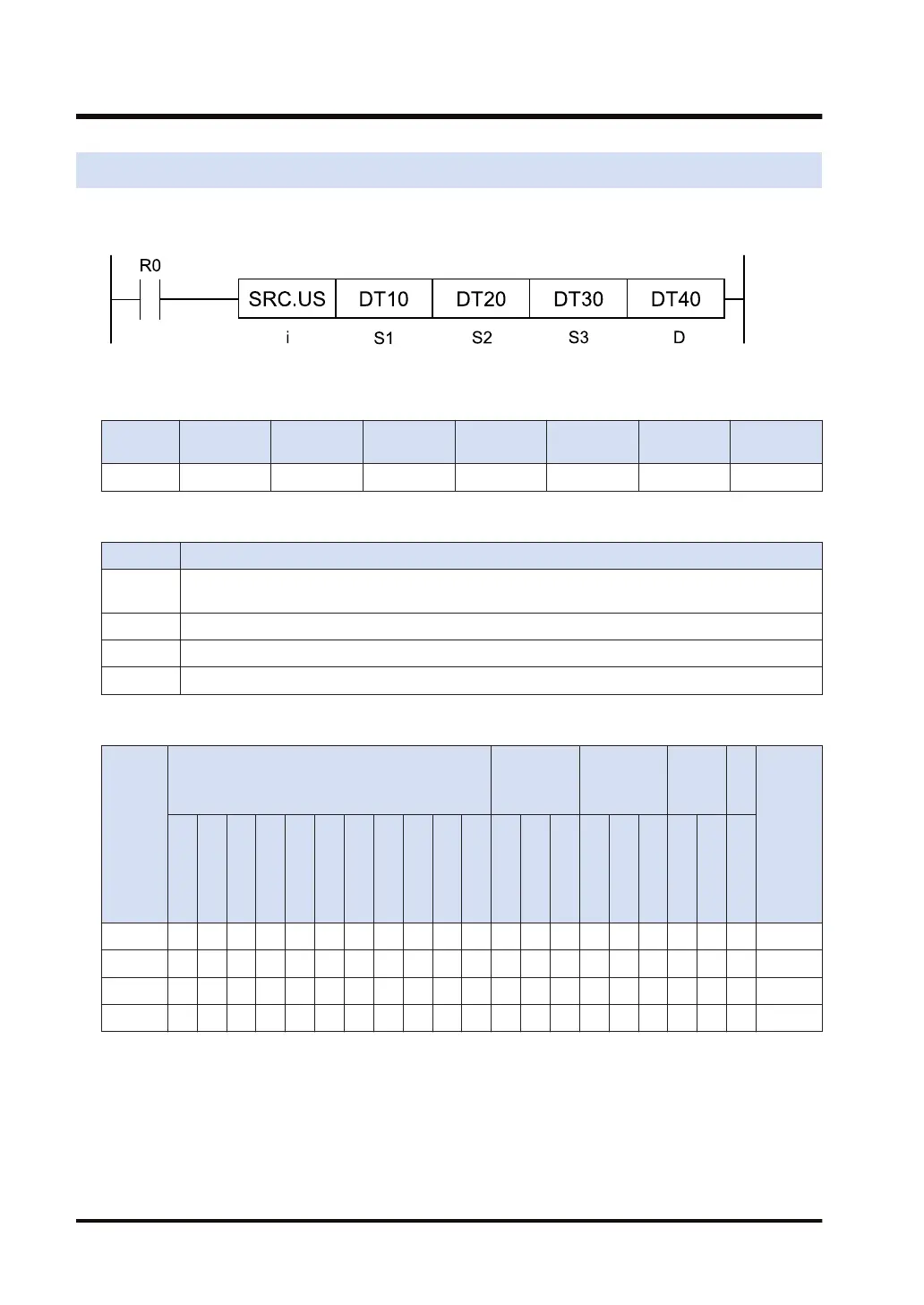

Ladder diagram
■
Available operation units (●: Available)
Operatio
n unit
bit US SS UL SL SF DF
i ● ● ● ● ● ●
■
List of operands
Operand Description
S1
Device address where the search data is stored, or the constant (data format: according to the
operation unit)
S2 Starting position of the search range (data format: according to the operation unit)
S3 End position of the search range (data format: according to the operation unit)
D Device address to store the search result (data format: unsigned 32-bit integer)
■
Available devices (●: Available)
Operan
d
16-Bit device:
32-Bit
device:
(Note 1)
Integer
Real
numbe
r
St
rin
g
Index
modific
ation
(Note 2)
W
X
W
Y
W
R
W
L
W
S
S
D
D
T
L
D
U
M
WI
W
O
TS
C
S
TE
C
E
IX
(N
ote
3)
K
(N
ote
4)
Ｕ
(N
ote
5)
H
(N
ote
6)
SF
(N
ote
7)
D
F
(N
ote
8)
" "
S1 ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ●
S2 ● ● ● ● ● ● ● ● ● ● ● ● ●
S3 ● ● ● ● ● ● ● ● ● ● ● ● ●
D ● ● ● ● ● ● ● ● ● ● ● ●
(Note 1) Cannot be specified when the operation unit is 16-bit integer (SS, US).
(Note 2) Only 16-bit devices, 32-bit devices, and integer constants can be modified. (Real number constants,
and character constants cannot be specified.)
(Note 3) Index register (I0 to IE)
(Note 4) Can be specified only when the operation unit is signed integer (SS, SL).
(Note 5) Can be specified only when the operation unit is unsigned integer (US, UL).
(Note 6) Can be specified only when the operation unit is integer (US, SS, UL, SL).
