Panasonic FP7 Series Command Reference Manual

7.14 GRY (Conversion: Binary → Gray Code)
■

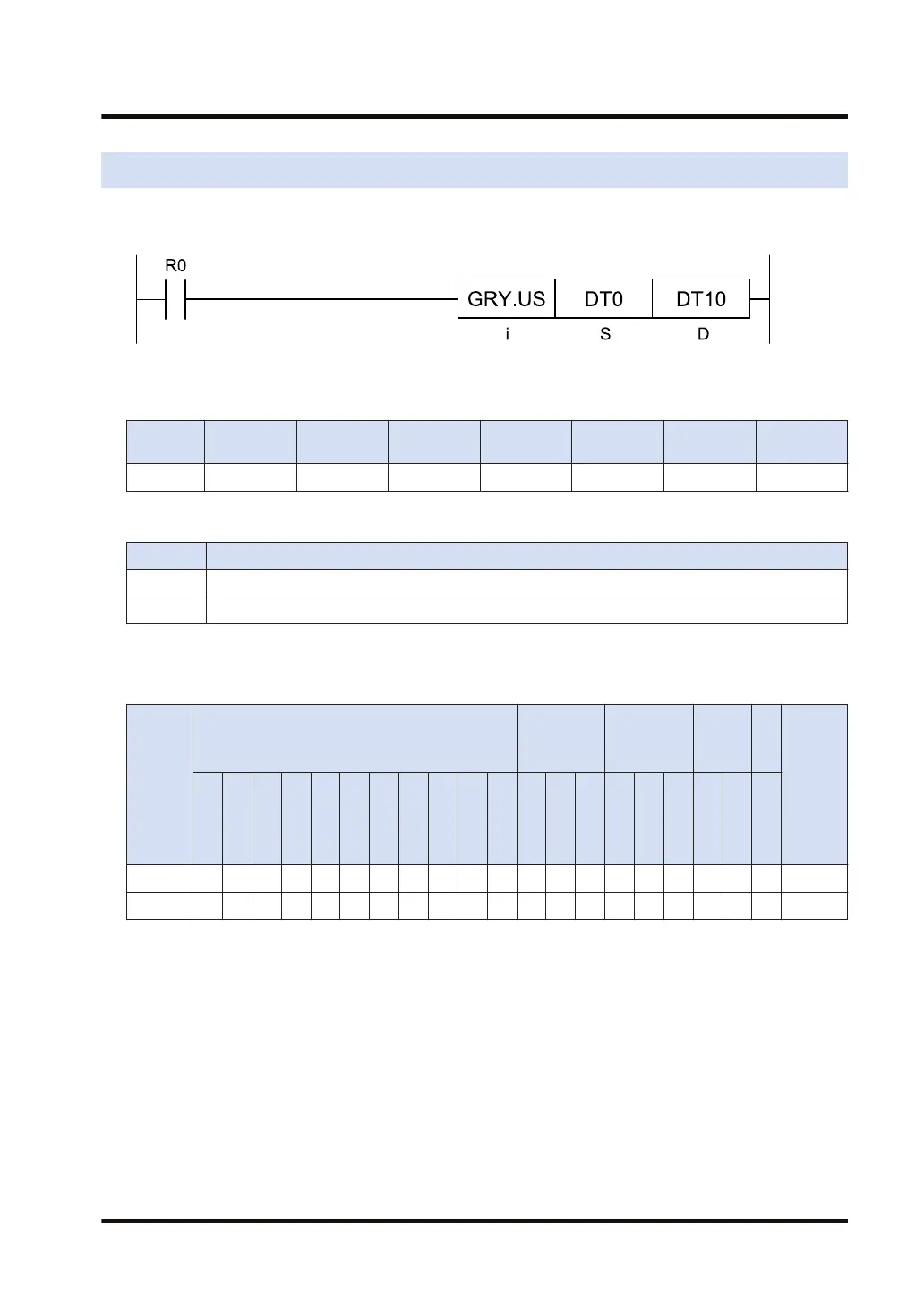

Ladder diagram
■
Available operation units (●: Available)
Operatio
n unit
bit US SS UL SL SF DF
i ● ●
■
List of operands
Operand Description
S The device address where the data for conversion are stored, or the constant
D Storage device address
(Note 1) For gray codes, refer to the "Correspondence Table: BIN / Gray Code."
■
Available devices (●: Available)
Operan
d
16-Bit device:
32-Bit
device:
(Note 1)
Integer
Real
numbe
r
St
rin
g
Index
modifie
r
(Note 2)
W
X
W
Y
W
R
W
L
W
S
S
D
D
T
L
D
U
M
WI
W
O
TS
C
S
TE
C
E
IX
(N
ote
3)
K Ｕ H SF
D
F
" "
S ● ● ● ● ● ● ● ● ● ● ● ● ● ●
D ● ● ● ● ● ● ● ● ●
(Note 1) Cannot be specified when the operation unit is 16-bit integer (US).
(Note 2) Only 16-bit devices, and integer constants can be modified. (32-bit devices, real number constants,
and character constants cannot be specified.)
(Note 3) Index register (I0 to IE)
■
Outline of operation
● This instruction converts a value of the device address or the constant specified by [S] to
gray code, and stores it in the device address specified by [D].
7.14 GRY (Conversion: Binary → Gray Code)
WUME-FP7CPUPGR-12 7-31
