Panasonic FP7 Series Command Reference Manual

■

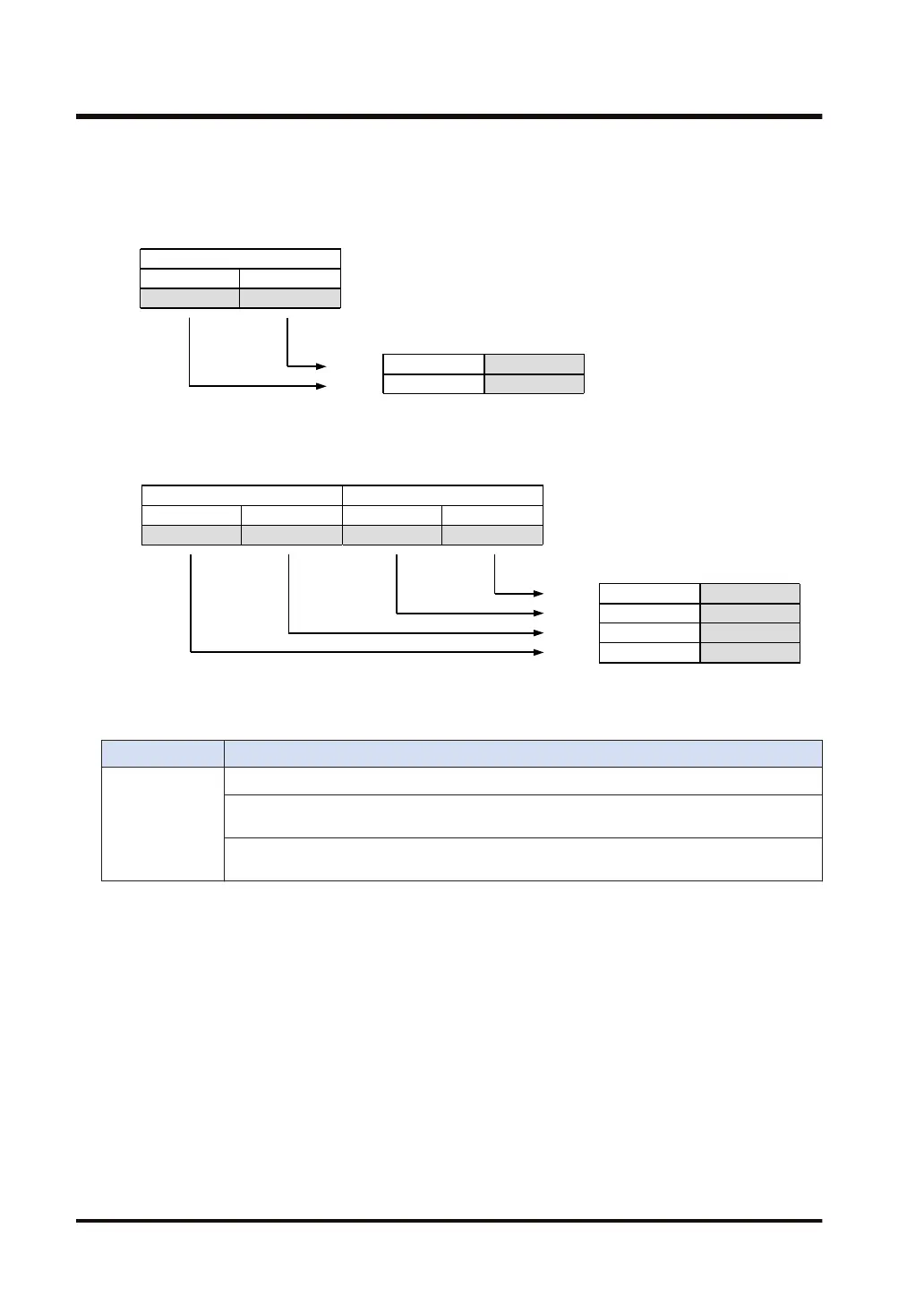

Processing
00010001
00010001
00010010
00000000
00000000
DT20
DT21
15・・・・・・8
00010010
7・・・・・・0
DT10
Example 1)
00010011
00010011 00010010
00010010
00010010
00010011
00000000
00000000
00000000
DT21
DT22
31・・・・・・24
00010010
23・・・・・・16
DT11
Example 2)
00000000
DT23
00010011
15・・・・・・8 7・・・・・・0
DT10
DT20
[S]…DT10 [n]…U2 [D]…DT20
[S]…DT10 [n]…U4 [D]…DT20
■
Flag operations
Name Description
SR7
SR8
(ER)
To be set in the case of out-of-range in indirect access (index modification).
To be set when [n], the number into which the data is broken down, is out of the specified
range.
To be set when, if data equivalent to [n] is transferred from the address specified by [D], it
exceeds the device address.
7.13 BDIS (Byte Data Disintegration)
7-30 WUME-FP7CPUPGR-12
