13.2 LOGED (Logging Trace Stop Request)
■

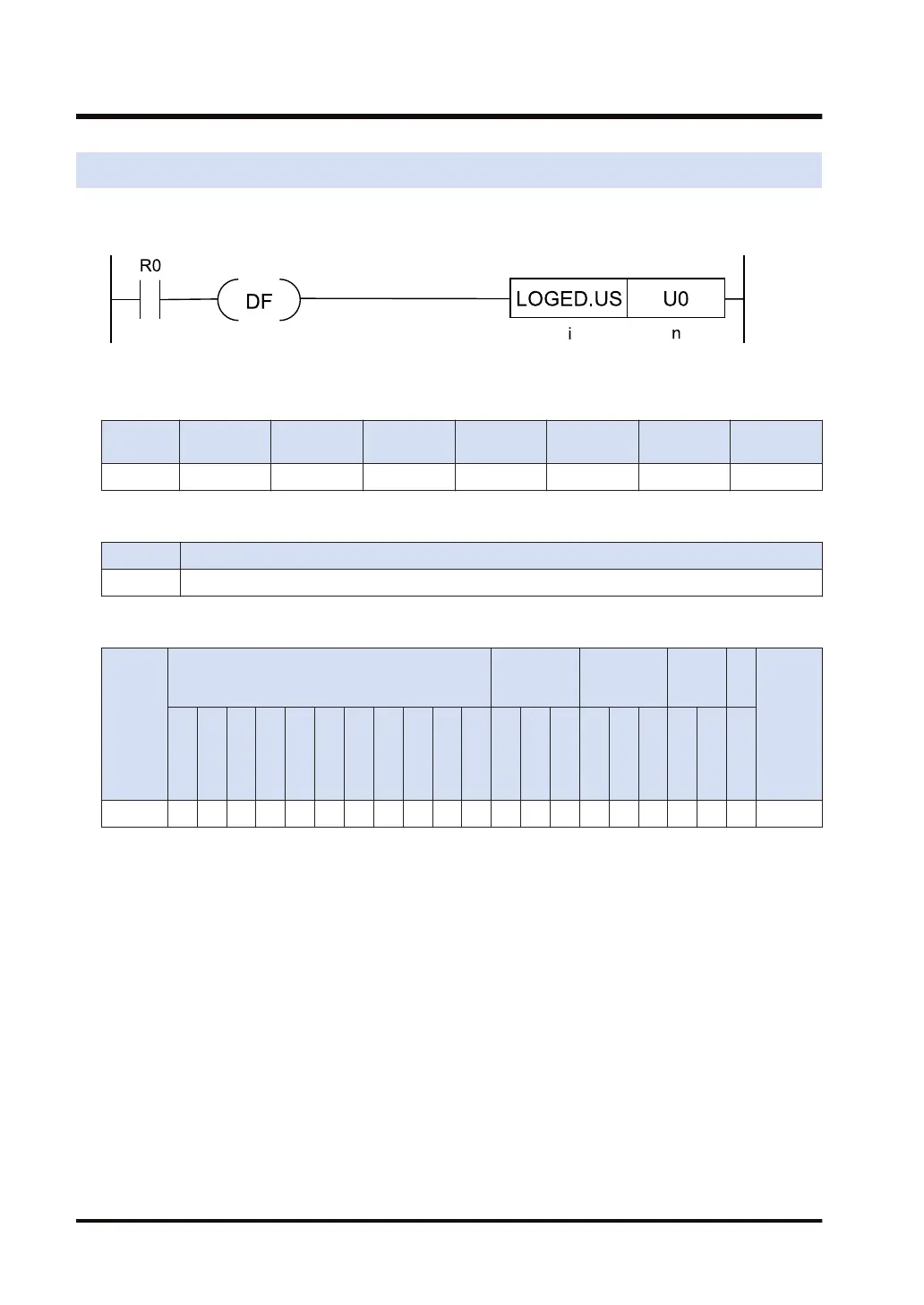

Ladder diagram
■
Available operation units (●: Available)
Operatio
n unit
bit US SS UL SL SF DF
i ● ●
■
List of operands
Operand Description
n Number of logging trace requested to stop
■
Available devices (●: Available)
Operan
d
16-Bit device:
32-Bit
device:
Integer
Real
numbe
r
St
rin
g
Index
modifie
r
(Note 3)
W
X
W
Y
W
R
W
L
W
S
S
D
D
T
L
D
U
M
WI
W
O
TS
C
S
TE
C
E
IX
K
(N
ote
1)
Ｕ
(N
ote
2)
H SF
D
F
" "
n ● ● ● ● ● ● ● ● ● ●
(Note 1) Can be specified only when the operation unit is signed integer (SS).
(Note 2) Can be specified only when the operation unit is an unsigned integer (US).
(Note 3) Only 16-bit devices, 32-bit devices, and integer constants can be modified. (Real number constants,
and character constants cannot be specified.)
■
Outline of operation
● This instruction requests to stop the logging trace function for the number specified by [n].
● There is no problem even if the logging trace stop request is made while the logging trace is
being stopped or the logging trace stop is being processed.
● For stopping the logging trace with the tool software FPWIN GR7, there is no need to
execute the LOGED instruction.
● In case of the trace function, when the trace condition set with the tool software FPWIN GR7
(memory buffer full or bit device ON) is not met, the trace operation will not be completed.
