Panasonic FP7 Series Command Reference Manual

4.2 WIN (Band Compare)
■

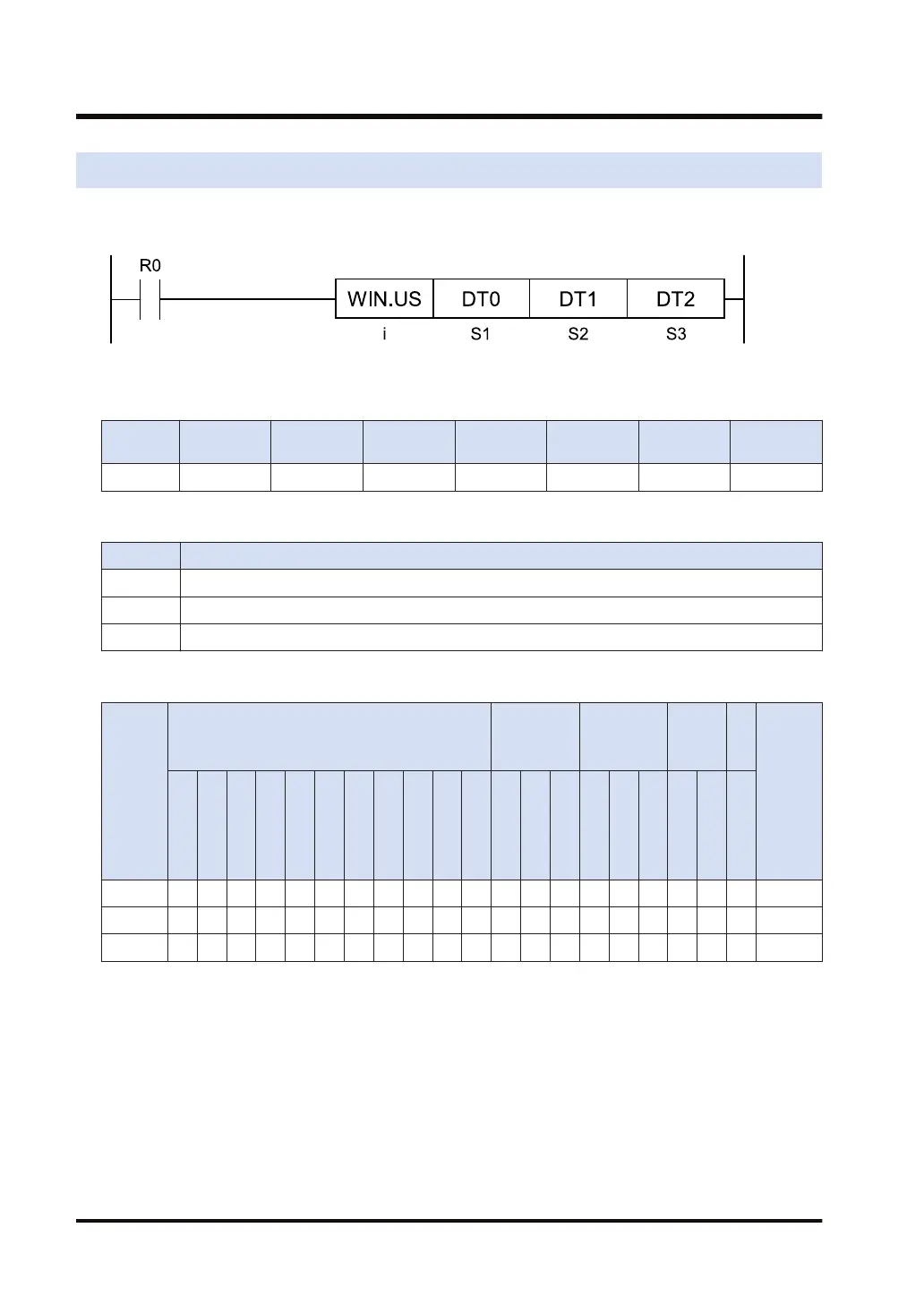

Ladder diagram
■
Available operation units (●: Available)
Operatio
n unit
bit US SS UL SL SF DF
i ● ● ● ● ● ●
■
List of operands
Operand Description
S1 Comparison data (device address or constant)
S2 Lower limit (device address or constant)
S3 Upper limit (device address or constant)
■
Available devices (●: Available)
Operan
d
16-Bit device:
32-Bit
device:
(Note 1)
Integer
Real
numbe
r
St
rin
g
Index
modifie
r
(Note 2)
W
X
W
Y
W
R
W
L
W
S
S
D
D
T
L
D
U
M
WI
W
O
TS
C
S
TE
C
E
IX
(N
ote
3)
K
(N
ote
4)
Ｕ
(N
ote
5)
H
(N
ote
6)
SF
(N
ote
7)
D
F
(N
ote
8)
" "
S1 ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ●
S2 ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ●
S3 ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ●
(Note 1) Cannot be specified when the operation unit is 16-bit integer (SS, US).
(Note 2) Only 16-bit devices, 32-bit devices, and integer constants can be modified. (Real number constants,
and character constants cannot be specified.)
(Note 3) Index register (I0 to IE)
(Note 4) Can be specified only when the operation unit is signed integer (SS, SL).
(Note 5) Can be specified only when the operation unit is unsigned integer (US, UL).
(Note 6) Can be specified only when the operation unit is integer (US, SS, UL, SL).
(Note 7) Can be specified only when the operation unit is a single-precision floating point real number (SF).
(Note 8) Can be specified only when the operation unit is a double-precision floating point real number (DF).
