Panasonic FP7 Series Command Reference Manual

10.18 FILTR (Time Constant Processing)
■

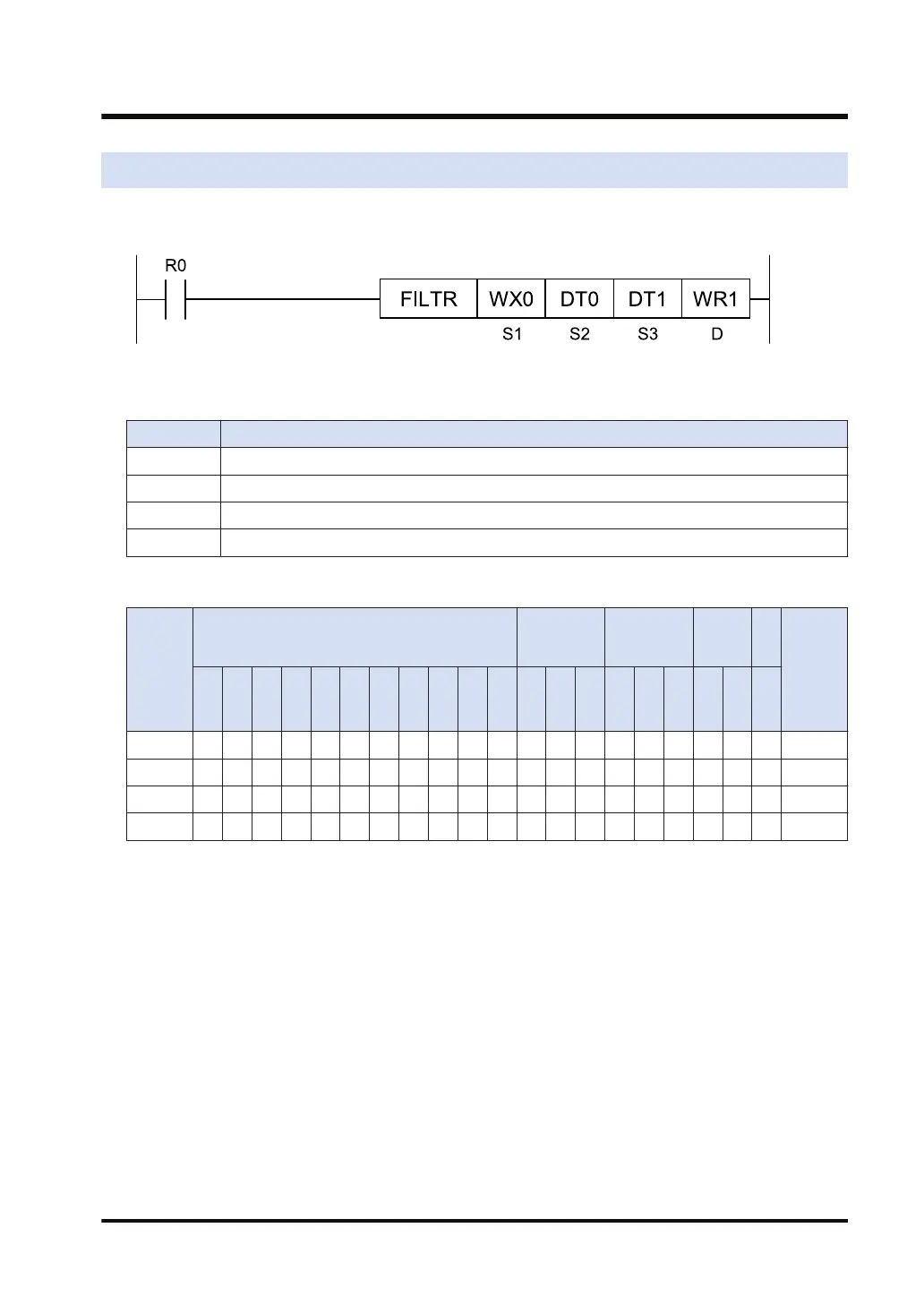

Ladder diagram
■
List of operands
Operand Description
S1 Filtering targeted data (device address)
S2 Filtering targeted bit (device address or constant) (data available range: H0000 to HFFFF)
S3 Filtering time (device address or constant) (data available range: 0 to 30000, in ms)
D Filtering result (device address)
■
Available devices (●: Available)
Operan
d
16-Bit device:
32-Bit
device:
Integer
Real
numbe
r
St
rin
g
Index
modifie
r
(Note 1)
W
X
W
Y
W
R
W
L
W
S
S
D
D
T
L
D
U
M
WI
W
O
TS
C
S
TE
C
E
IX K Ｕ H SF
D
F
" "
S1 ● ● ● ● ● ● ●
S2 ● ● ● ● ● ● ● ● ●
S3 ● ● ● ● ● ● ● ● ●
D ● ● ● ● ● ● ●
(Note 1) Only 16-bit devices, 32-bit devices, and integer constants can be modified. (Real number constants,
and character constants cannot be specified.)
■
Outline of operation
● Among data specified by [S1], bits specified by [S2] with the value 0 are directly output, and
those with the value 1 are filtered and output.
● Filtering is carried out for the targeted bits within the time specified by [S3] (in 0 to 30000
ms). The result is output to the area specified by [D].
● When the execution condition is switched on, all input bits specified by [S1] are directly
output without conditions.
● It is possible that a delay of up to one scan may be caused in the filtering time.
■
Processing
Among targeted data, specified bits with the value 0 are directly output, and those with the
value 1 are filtered and output. Filtering is carried out within the specified time and the result is
output.
10.18 FILTR (Time Constant Processing)
WUME-FP7CPUPGR-12 10-67
