Panasonic FP7 Series Command Reference Manual

5.8 DGT (Digit Data Transfer)
■

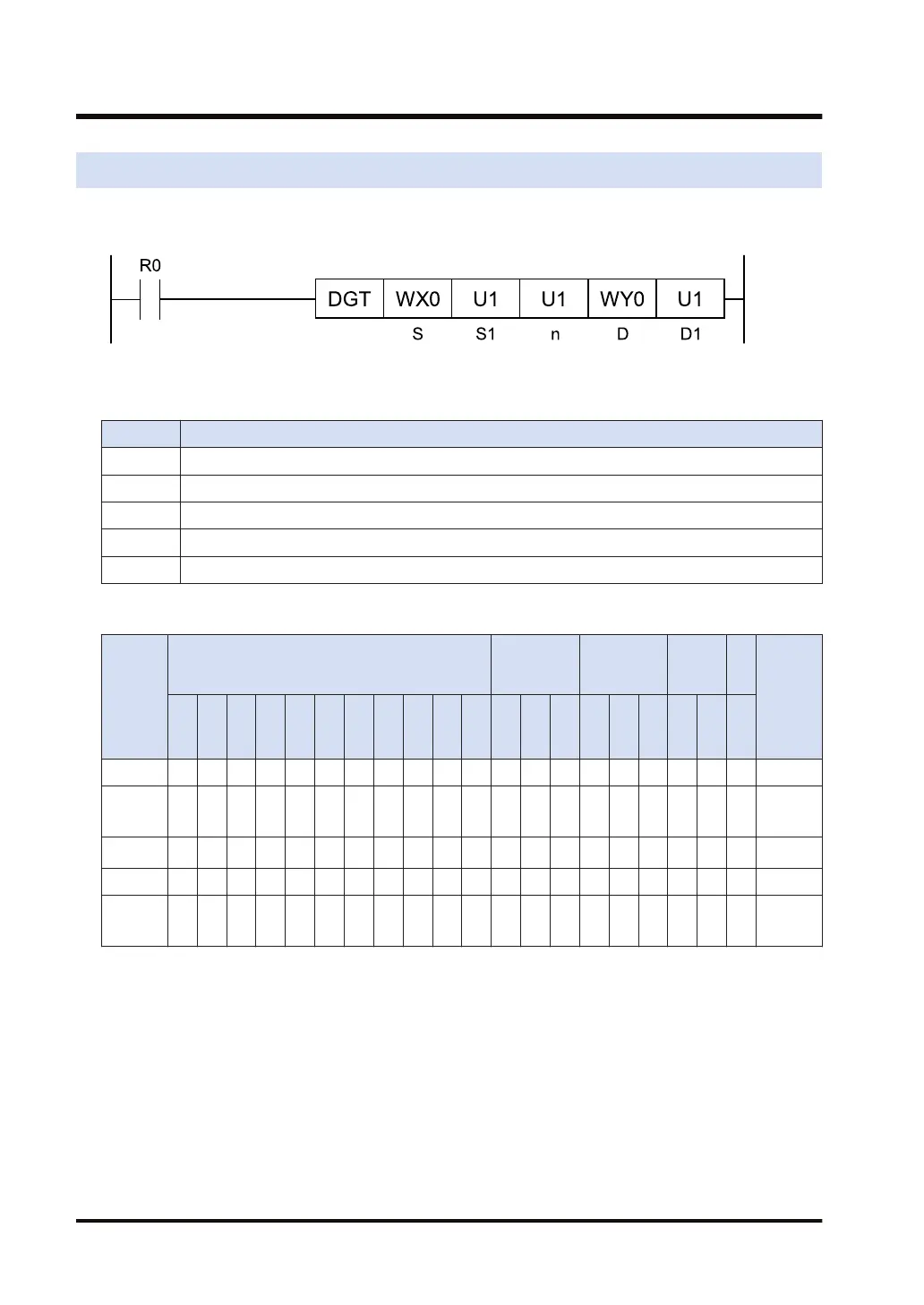

Ladder diagram
■
List of operands
Operand Description
S The device address or the constant of the source data
S1 Transfer starting digit in the source (Available data range: 0 to 3)
n Digits to be transferred (Available data range: 1 to 4)
D The device address of the destination data
D1 Transfer starting digit in the destination (Available data range: 0 to 3)
■
Available devices (●: Available)
Operan
d
16-Bit device:
32-Bit
device:
Integer
Real
numbe
r
St
rin
g
Index
modifie
r
W
X
W
Y
W
R
W
L
W
S
S
D
D
T
L
D
U
M
WI
W
O
TS
C
S
TE
C
E
IX K Ｕ H SF
D
F
" "
S ● ● ● ● ● ● ● ● ● ● ● ● ● ● ●
S1
(Note
1)
● ● ● ● ● ● ● ● ● ● ● ●
n
(Note 1)
● ● ● ● ● ● ● ● ● ● ● ●
D ● ● ● ● ● ● ● ● ●
D1
(Note
1)
● ● ● ● ● ● ● ● ● ● ● ●
(Note 1) To be handled as a 16-bit unsigned integer (US), regardless of operation unit.
■
Outline of operation
● This instruction transfers [n] digits from the [S1]th digit of the area specified by [S], to the [D1]
digit of the 16-bit data specified by [D].
● Transfer starts with the 0th digit, 1st digit, 2nd digit, and 3rd digit by every four bits from the
lower level.
5.8 DGT (Digit Data Transfer)
5-18 WUME-FP7CPUPGR-12
