Panasonic FP7 Series Command Reference Manual

16.2 RECV (When FP7 Multi-wire Link Unit Is Used)
■

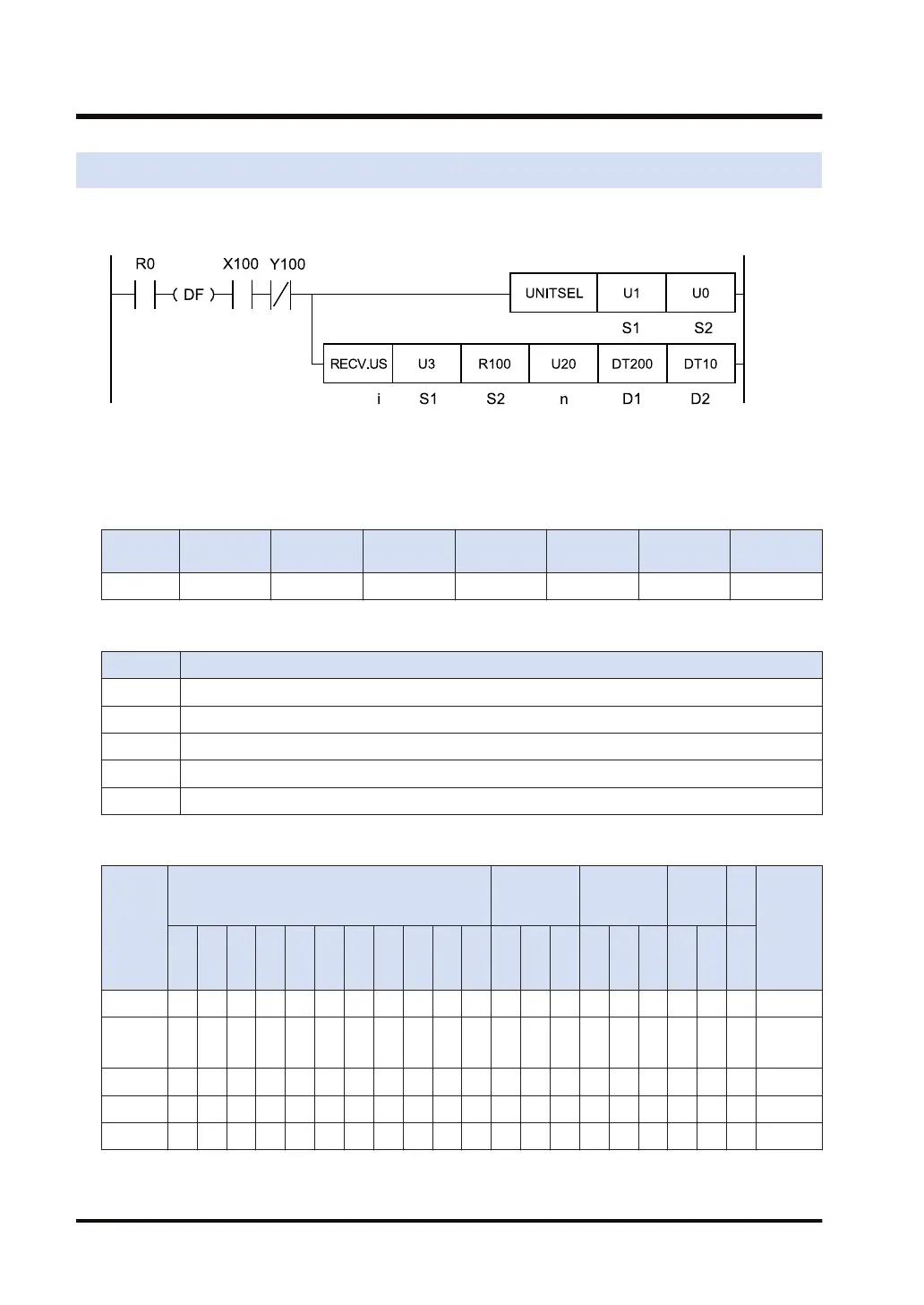

Ladder diagram
(Note 1) The above figure shows the case that the FP7 multi-wire link unit for S1=U1 (slot number 1) is
specified by the UNITSEL instruction.
■
Available operation units (●: Available)
Operatio
n unit
bit US SS UL SL SF DF
i ● ●
■
List of operands
Operand Description
S1 Partner station number
S2 Starting address of the device in the sender data area of the partner unit
n Number of received data
D1 Starting address of the device in the receiver data area of the master unit
D2 Starting address of the device area of the master unit that stores the execution result code (1 word)
■
Available word devices (●: Available)
Operan
d
16-Bit device:
32-Bit
device:
Integer
Real
numbe
r
St
rin
g
Index
modifie
r
W
X
W
Y
W
R
W
L
W
S
S
D
D
T
L
D
U
M
WI
W
O
TS
C
S
TE
C
E
IX K Ｕ H SF
D
F
" "
S1 ● ● ● ● ● ● ● ● ●
S2
(Note
1)
● ● ● ● ● ● ●
n ● ● ● ● ● ● ● ● ●
D1 ● ● ● ● ● ● ●
D2 ● ● ● ● ● ● ●
(Note 1) When the source unit is FP7, only global devices can be specified. (Local devices cannot be
specified.)
