Panasonic FP7 Series Command Reference Manual

2.5.8 P Pulse relay
■
How pulse relay (P) works
● Pulse relay is a relay that is only turned ON for one scan. Its ON or OFF state is not
externally output. It only operates within a program.
● Turns ON only when Leading Edge Detection Out (OT↑) or Trailing Edge Detection Out
(OT↓) instructions are executed.
● When used as the trigger, the pulse relay only operates for one scan when the leading edge
or trailing edge is detected.

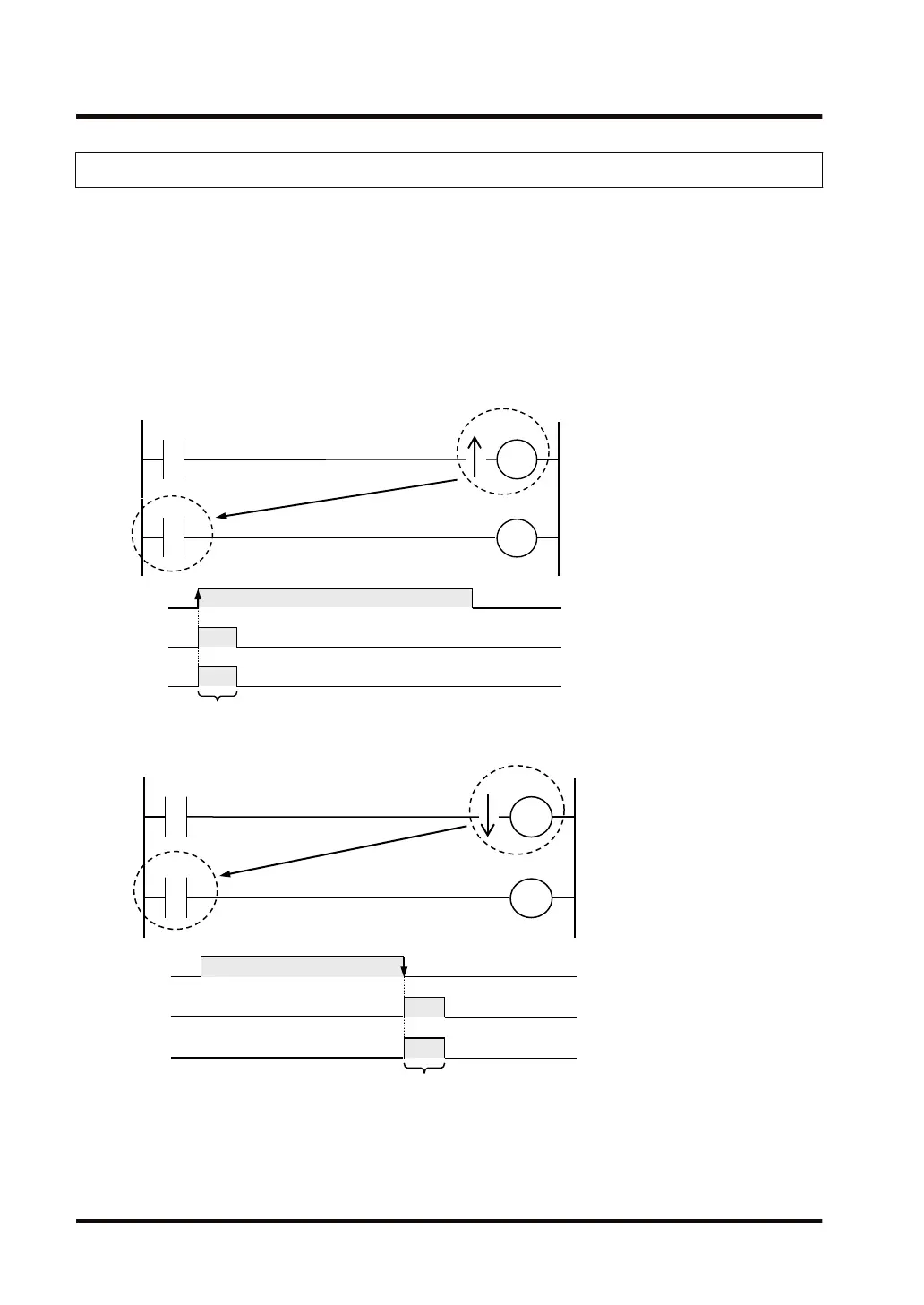

<Example 1> Differential execution at the leading edge for input X100
X100
P0
P0
R100
X100
P0
R100
Single scan
<Example 2> Differential execution at the trailing edge for input X101
P1
R101
X101
P1
X101
P1
R101
Single scan
■
Usage restrictions
● Pulse relays are cleared when the power is turned off.
2.5 Explanations about Relays
2-22 WUME-FP7CPUPGR-12
