Panasonic FP7 Series Command Reference Manual

7.10 UNIT (Digit Unification)
■

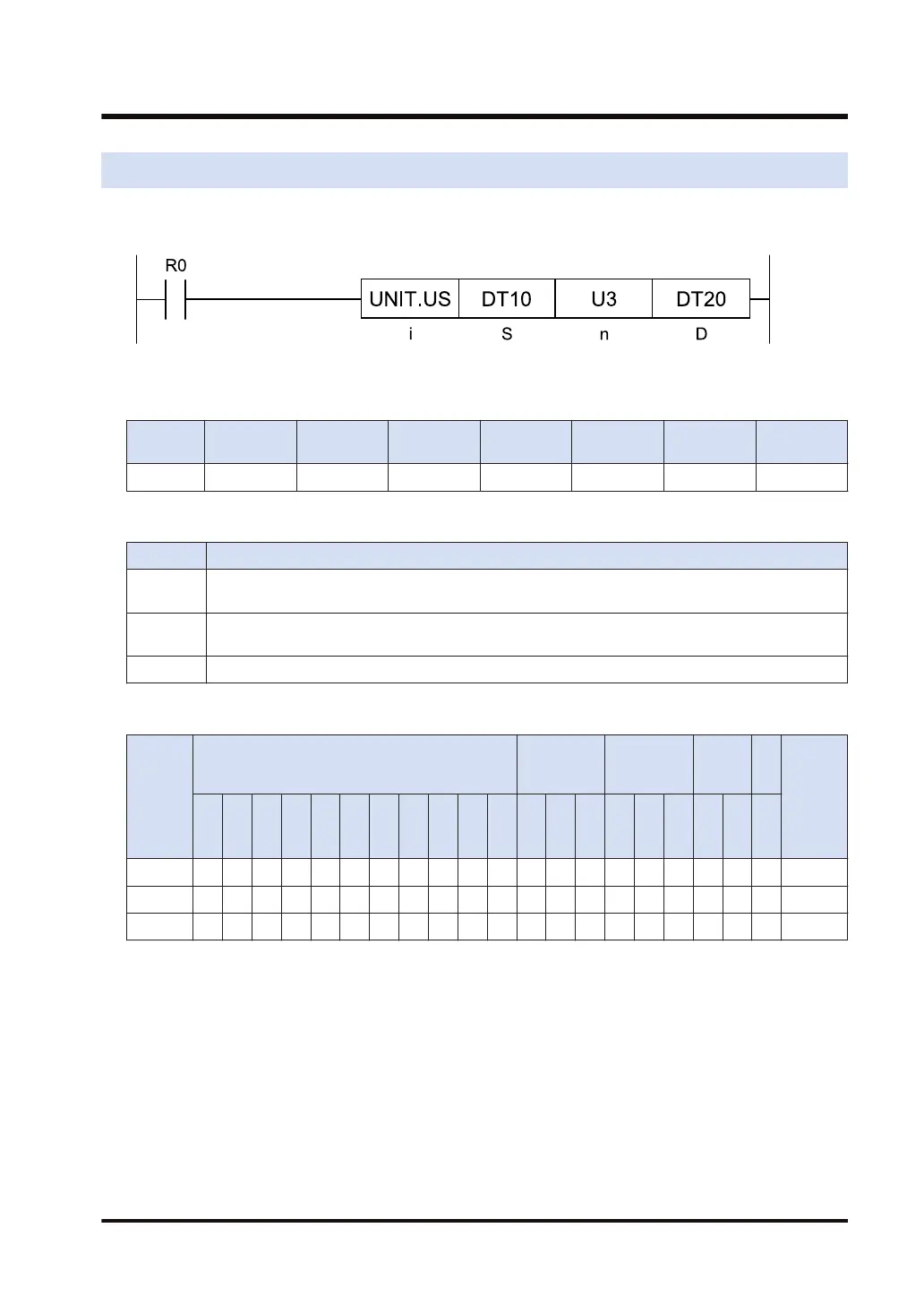

Ladder diagram
■
Available operation units (●: Available)
Operatio
n unit
bit US SS UL SL SF DF
i ●
■
List of operands
Operand Description
S
The device address where the data to be unified are stored, or the constant (data format: unsigned
16-bit integer)
n
The device address where the number of data to be unified is stored, or the constant (data format:
unsigned 16-bit integer)
D Storage device address (data format: according to the operation unit)
■
Available devices (●: Available)
Operan
d
16-Bit device:
32-Bit
device:
Integer
Real
numbe
r
St
rin
g
Index
modifie
r
(Note 1)
W
X
W
Y
W
R
W
L
W
S
S
D
D
T
L
D
U
M
WI
W
O
TS
C
S
TE
C
E
IX K Ｕ H SF
D
F
" "
S ● ● ● ● ● ● ● ● ● ● ● ●
n ● ● ● ● ● ● ● ● ● ● ● ● ● ●
D ● ● ● ● ● ● ● ● ●
(Note 1) Only 16-bit devices, and integer constants can be modified. (32-bit devices, real number constants,
and character constants cannot be specified.)
■
Outline of operation
● The lower 4 bits of the 16-bit data for [n] words starting with [S] are combined into 16-bit
data.
● The available data amount specified by [n] is 0 to 4. No operation needed if [n]=0.
● The other portions of [D] are padded with "0".
