Panasonic FP7 Series Command Reference Manual

13.1 LOGST (Logging Trace Start Request)
■

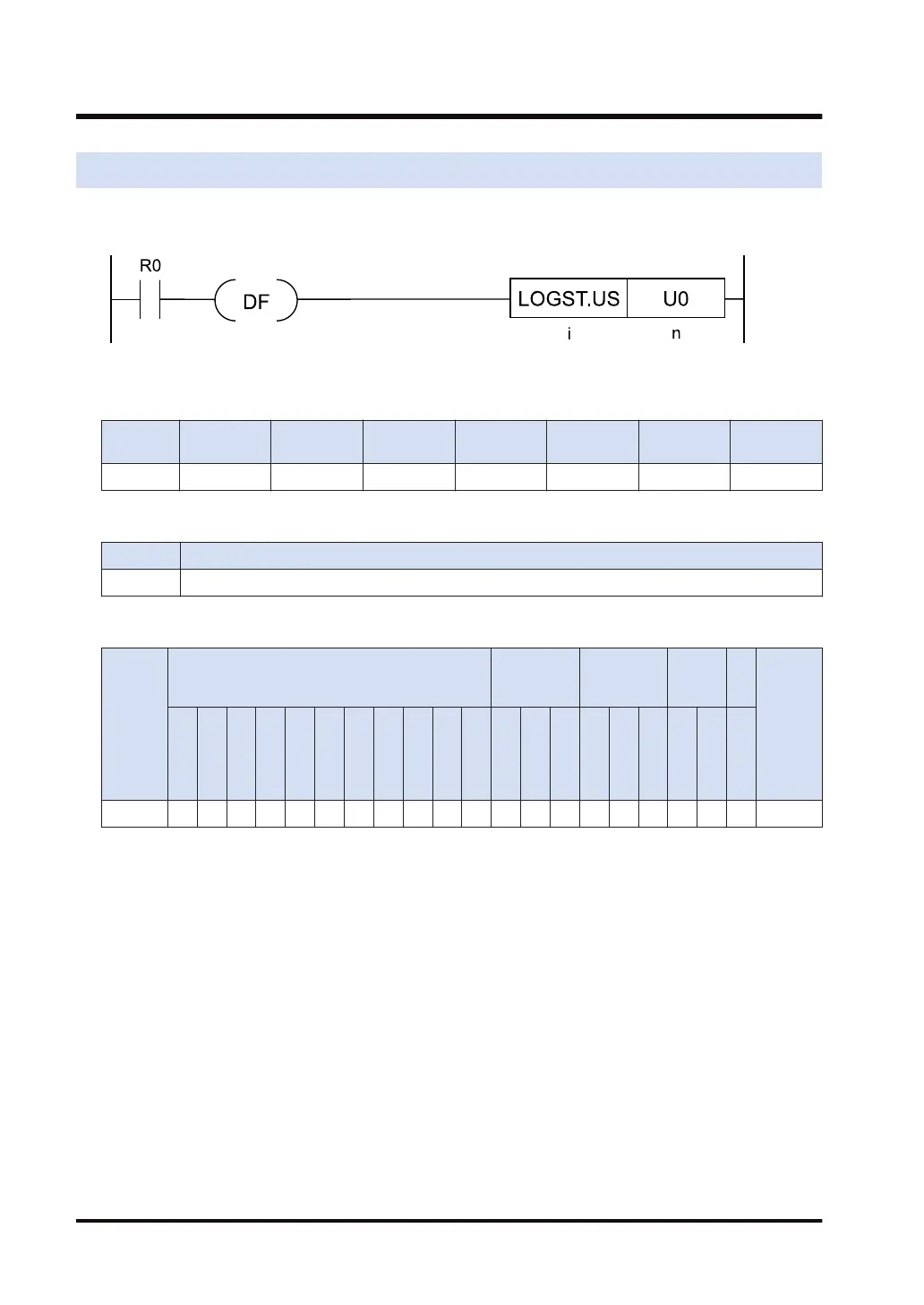

Ladder diagram
■
Available operation units (●: Available)
Operatio
n unit
bit US SS UL SL SF DF
i ● ●
■
List of operands
Operand Description
n Number of logging trace requested to start
■
Devices that can be specified (indicated by ●)
Operan
d
16-Bit device:
32-Bit
device:
Integer
Real
numbe
r
St
rin
g
Index
modifie
r
(Note 3)
W
X
W
Y
W
R
W
L
W
S
S
D
D
T
L
D
U
M
WI
W
O
TS
C
S
TE
C
E
IX
K
(N
ote
1)
Ｕ
(N
ote
2)
H SF
D
F
" "
n ● ● ● ● ● ● ● ● ● ●
(Note 1) Can be specified only when the operation unit is signed integer (SS).
(Note 2) Can be specified only when the operation unit is an unsigned integer (US).
(Note 3) Only 16-bit devices, 32-bit devices, and integer constants can be modified. (Real number constants,
and character constants cannot be specified.)
■
Outline of operation
● This instruction requests to start the logging trace function for the number specified by [n].
● There is no problem even if the logging trace start request is made while the logging trace is
being started or the logging trace start is being processed.
● The logging trace is set using the configuration menu of the tool software FPWIN GR7.
● For setting the logging trace to be automatically started, or starting it with the tool software
FPWIN GR7, there is no need to execute the LOGST instruction.
13.1 LOGST (Logging Trace Start Request)
13-2 WUME-FP7CPUPGR-12
