17.38 EIP_OT (EtherNet/IP Output Refresh)
■

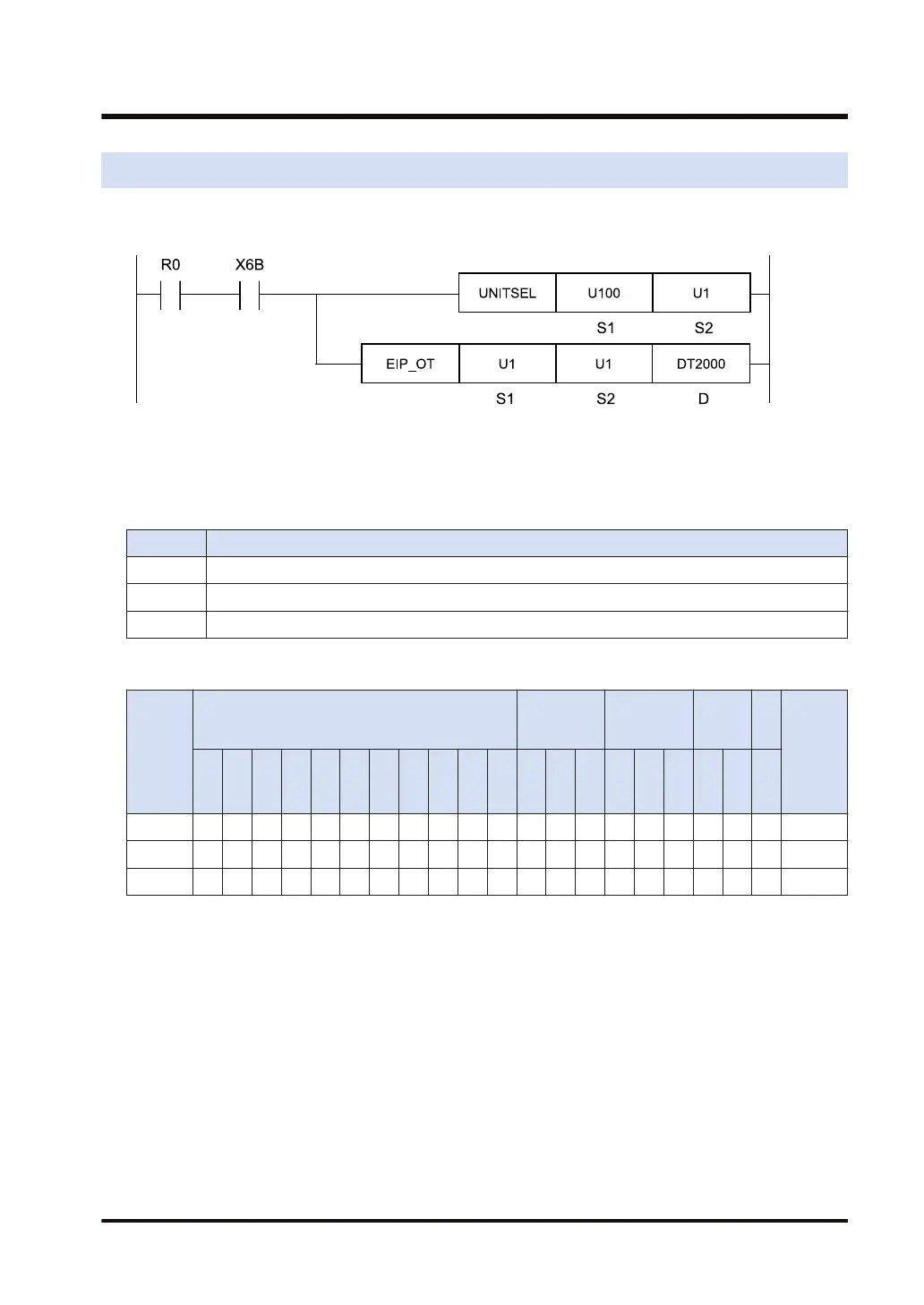

Ladder diagram
(Note 1) The above figure shows the case that S1=U100 (built-in ET-LAN in the CPU unit) and S2=U1
(connection number 1) are specified by the UNITSEL instruction.
■
List of operands
Operand Description
S1 Specify a target node number of output fresh.
S2 Specify a target connection number of output refresh.
D Specify the device address storing refresh results.
■
Devices that can be specified (indicated by ●)
Operan
d
16-Bit device:
32-Bit
device:
Integer
Real
numbe
r
St
rin
g
Index
modifie
r
W
X
W
Y
W
R
W
L
W
S
S
D
D
T
L
D
U
M
WI
W
O
TS
C
S
TE
C
E
IX K Ｕ H SF
D
F
" "
S1 ● ● ● ● ● ● ● ● ●
S2 ● ● ● ● ● ● ● ● ●
D ● ● ● ● ● ● ●
■
Processing
● This instruction executes the output refresh for connections to be refreshed. "Output refresh"
means that the data is copied from the allocated devices to the send buffers.
■
Precautions for programming
● Execute this instruction after the EtherNet/IP preparation done flag (X6B) turns ON. If the
instruction is executed before the flag turns ON, the EtherNet/IP communication preparation
incomplete error occurs.
● This instruction causes a processing load. Do not execute the instruction successively in one
scan.
● Before executing this instruction, use the cyclic communication normal node table to confirm
that the communication of the specified connection is performed normally. The cyclic
17.38 EIP_OT (EtherNet/IP Output Refresh)
WUME-FP7CPUPGR-12 17-191
