Every scan
execution
Program block

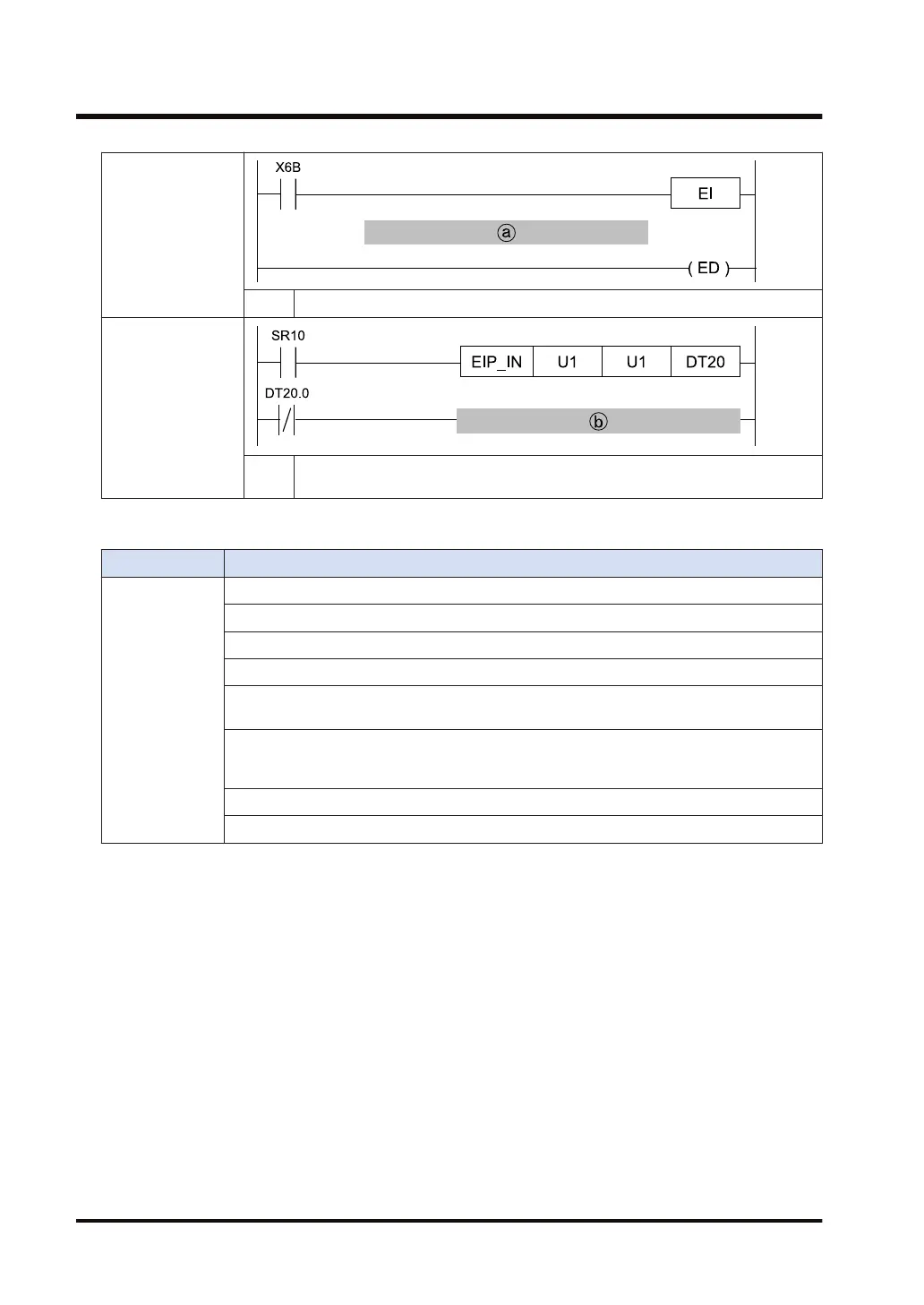

(a) Processing that takes 10 ms or more
Constant period
execution time
(0.1 ms units)
Program block
0.5-ms cyclic
program
(b)
Only when refresh is completed successfully, data can be adopted (LD0 and LD1
in this case).
■
Flag operations
Name Description
SR7
SR8
(ER)
To be set when the unit specified by UNITSEL is not the built-in ET-LAN.
To be set when the EtherNet/IP function is set to Not Use in the Ethernet unit configuration.
To be set in case of out-of-range values in indirect access (index modification).
Set when a value outside the range is specified for the parameter.
To be set when the node that is specified by [S1] or the connection that is specified by [S2]
does not exist.
Use this instruction only for the connections in which the refresh method of the EtherNet/IP
setting is set to Instruction. An operation error occurs when the connection that other refresh
method other than that has been specified is specified.
To be set when the connection for which the number of input data is 0 is specified.
To be set when the connection for which the number of refreshed data is 0 is specified.
17.37 EIP_IN (EtherNet/IP Input Refresh)
17-190 WUME-FP7CPUPGR-12
