17.13 FTPcLOG (FTP Client Logging/Trace Transfer Setting)
■

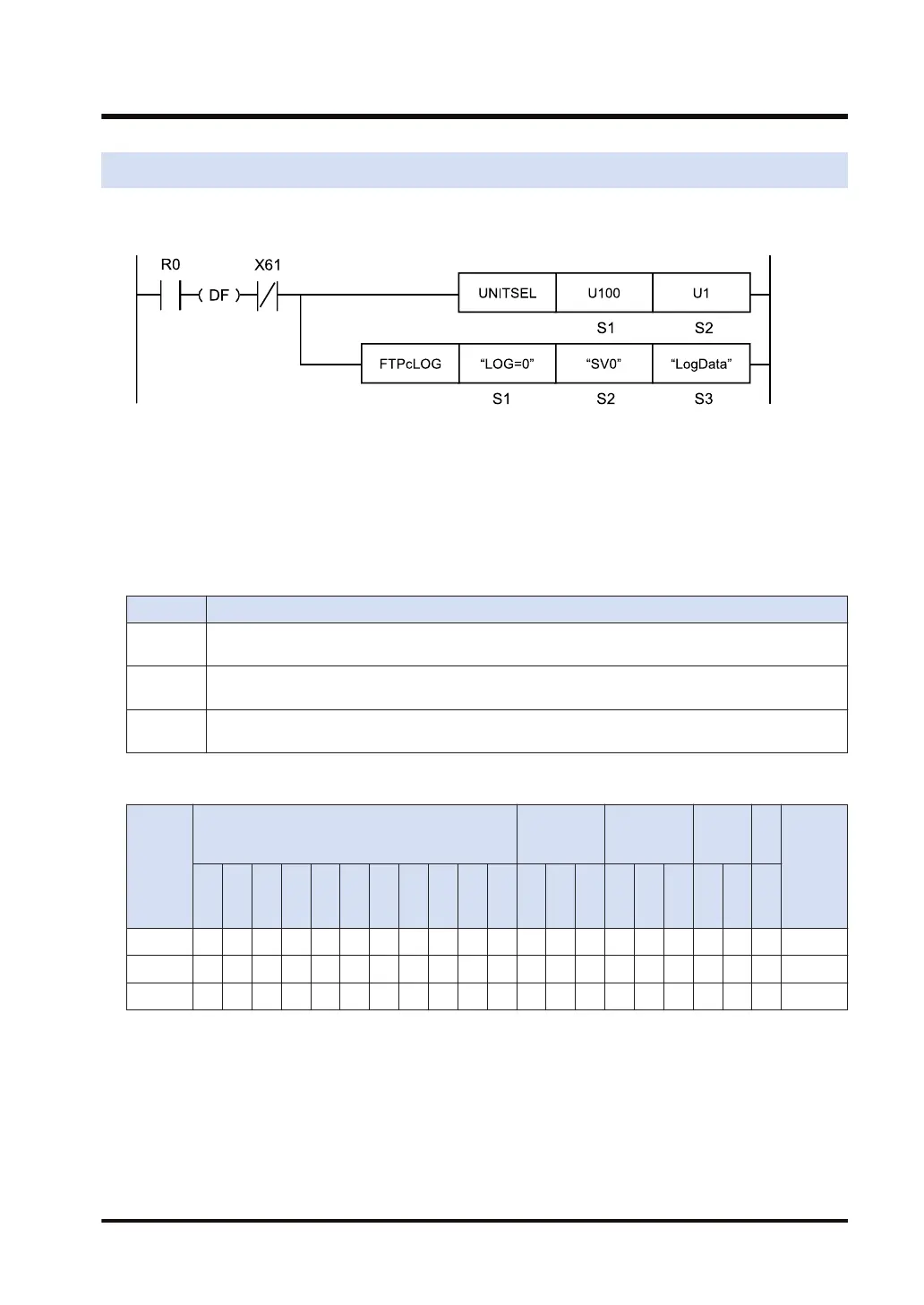

Ladder diagram
(Note 1) The above figure shows the case that S1=U100 (built-in ET-LAN in the CPU unit) and S2=U1
(connection number 1) are specified by the UNITSEL instruction.
(Note 2) By copying and pasting the following text in the instruction list box of FPWIN GR7, the operand part of
the above program can be input.
FTPcLOG "LOG=0" "SV0" "LogData"
■
List of operands
Operand Description
S1
Starting address of the device area that stores the string data that indicates a logging/trace number,
or a character constant.
S2
Starting address of the device area that stores the string data that indicates the parameters for
operation setting, or a character constant.
S3
Starting address of the device area that stores the string data that indicates a destination folder
name, or a character constant.
■
Devices that can be specified (indicated by ●)
Operan
d
16-Bit device:
32-Bit
device:
Integer
Real
numbe
r
St
rin
g
Index
modifie
r
W
X
W
Y
W
R
W
L
W
S
S
D
D
T
L
D
U
M
WI
W
O
TS
C
S
TE
C
E
IX K Ｕ H SF
D
F
" "
S1 ● ● ● ● ● ● ●
S2 ● ● ● ● ● ● ●
S3 ● ● ● ● ● ● ●
■
Outline of operation
● This instruction configures the logging/trace transfer setting.
■
Processing
● The logging/trace transfer settings of [S2] to [S3] are stored in the logging/trace transfer
setting area that is specified by [S1].
17.13 FTPcLOG (FTP Client Logging/Trace Transfer Setting)
WUME-FP7CPUPGR-12 17-69
