Panasonic FP7 Series - BTM (Bit Block Transfer)

5.7 BTM (Bit Block Transfer)
■

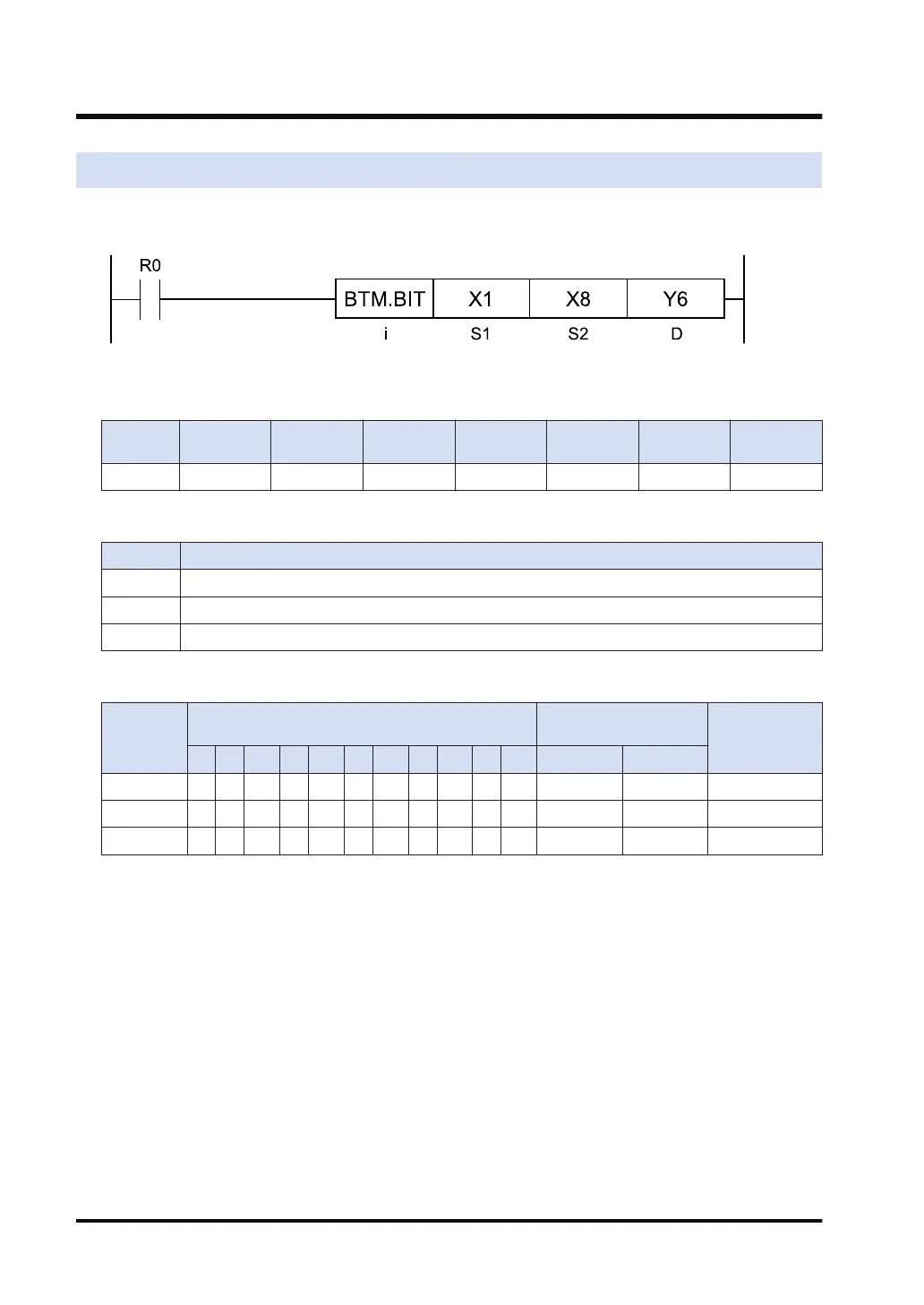

Ladder diagram
■
Available operation units (●: Available)
Operatio
n unit
bit US SS UL SL SF DF
i ●
■
List of operands
Operand Description
S1 Starting bit address of the source data
S2 End bit address of the source data
D Starting bit address of the data destination
■
Available devices (●: Available)
Operand
Bit device
Specification of bit of
word device
Index modifier
X Y R L T C P E SR IN OT DT.n LD.n
S1 ● ● ● ● ● ● ● ● ● ● ● ● ● ●
S2 ● ● ● ● ● ● ● ● ● ● ● ● ● ●
D ● ● ● ● ● ● ● ●
■
Outline of operation
● This instruction performs bit transfer, from the area (bit address) specified by [S1] through
the area (bit address) specified by [S2], to the area specified by [D].
5.7 BTM (Bit Block Transfer)
5-16 WUME-FP7CPUPGR-12
