Panasonic FP7 Series Command Reference Manual

17.20 SMTPcBDY (Mail Text Setting)
■

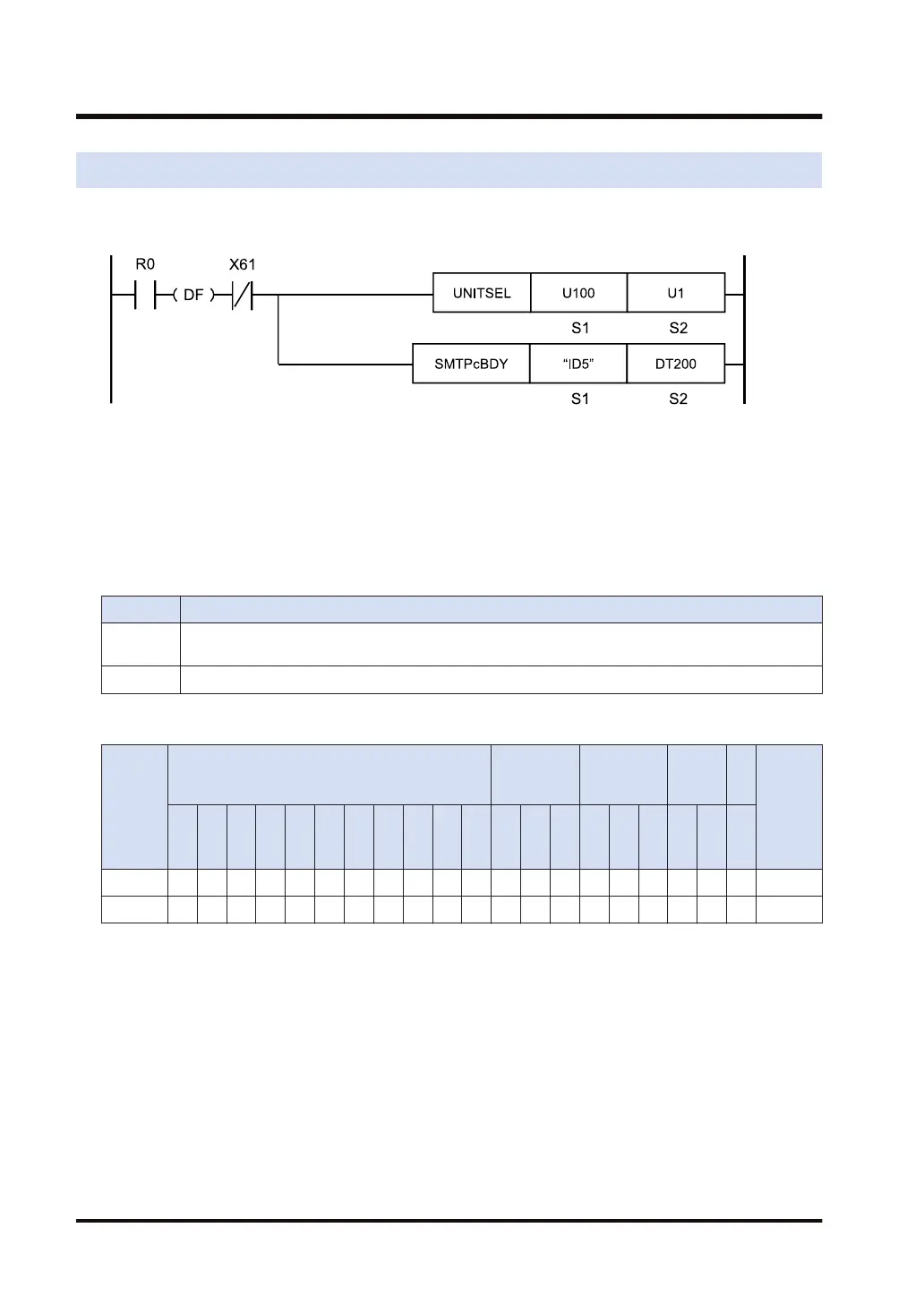

Ladder diagram
(Note 1) The above figure shows the case that S1=U100 (built-in ET-LAN in the CPU unit) and S2=U1
(connection number 1) are specified by the UNITSEL instruction. Set a desired value for [S2].
(Note 2) By copying and pasting the following text in the instruction list box of FPWIN GR7, the operand part of
the above program can be input.
SMTPcBDY "ID5" DT200
■
List of operands
Operand Description
S1
Starting address of the device area that stores the string data that indicates a setting number, or a
character constant.
S2 Device address that stores mail text
■
Devices that can be specified (indicated by ●)
Operan
d
16-Bit device:
32-Bit
device:
Integer
Real
numbe
r
St
rin
g
Index
modifie
r
W
X
W
Y
W
R
W
L
W
S
S
D
D
T
L
D
U
M
WI
W
O
TS
C
S
TE
C
E
IX K Ｕ H SF
D
F
" "
S1 ● ● ● ● ● ● ●
S2 ● ● ● ● ● ● ●
■
Outline of operation
This instruction sets the specified text as mail text.
■
Processing
● The text that is specified by [S2] is set in the mail text for the setting number that is specified
by [S1].
● The instruction can be executed when the mail send request relay for the specified setting
number is OFF (0: No request). As an execution condition of the instruction, insert a program
that checks the state of the mail send request relay. The state of the send request relay can
be read with the ETSTAT instruction. Store the state that is read in a device such as an
internal relay. An operation error occurs if this instruction is executed when the send request
relay is ON.
