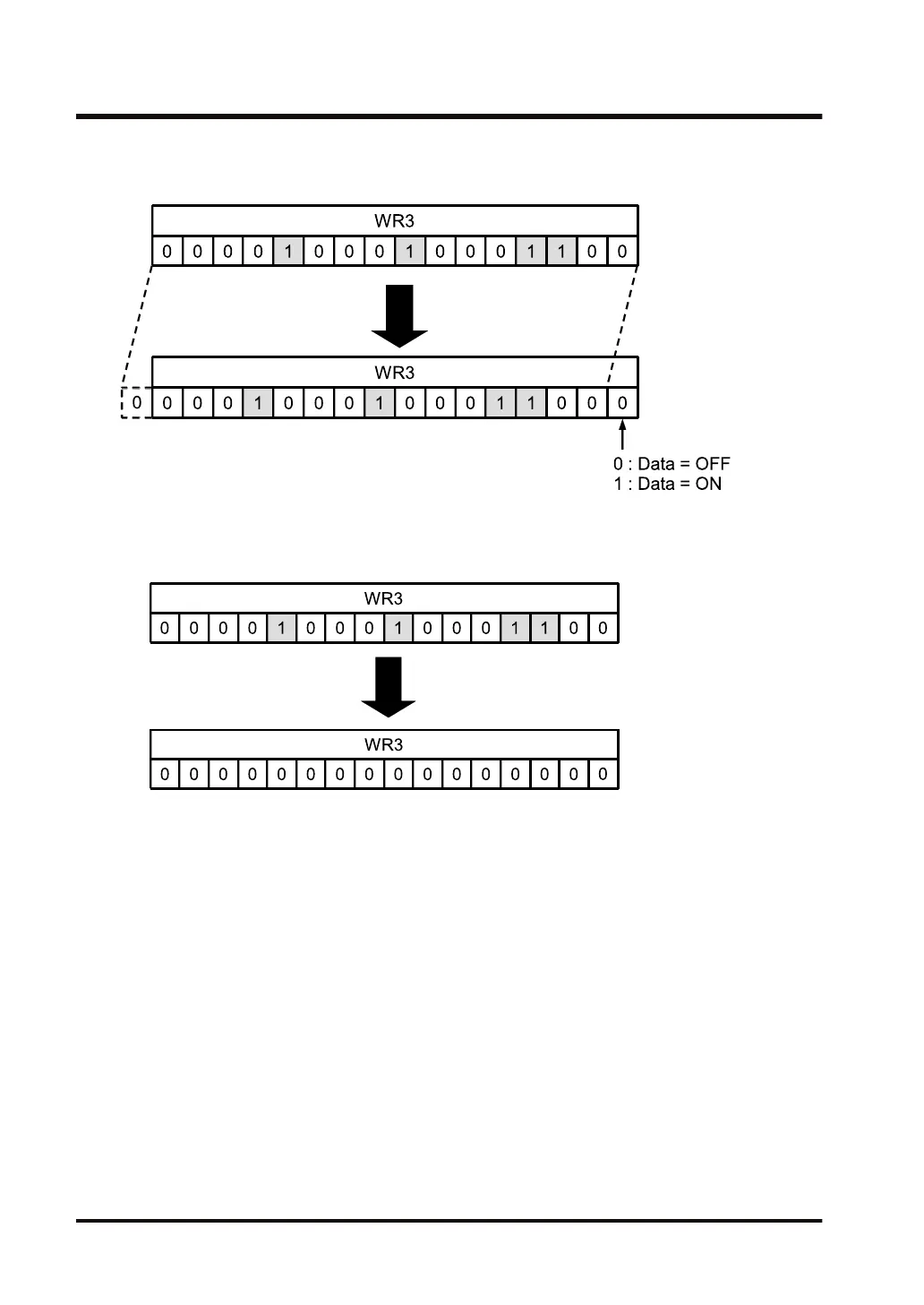

2) Upon shifting, sets 1 or 0 to the blank bit (least significant bit) if the data input is

ON or OFF, respectively.

3) When the reset input turns ON, the specified register contents will be cleared.

3.23 SR (Shift Register)

3-70 WUME-FP7CPUPGR-12
