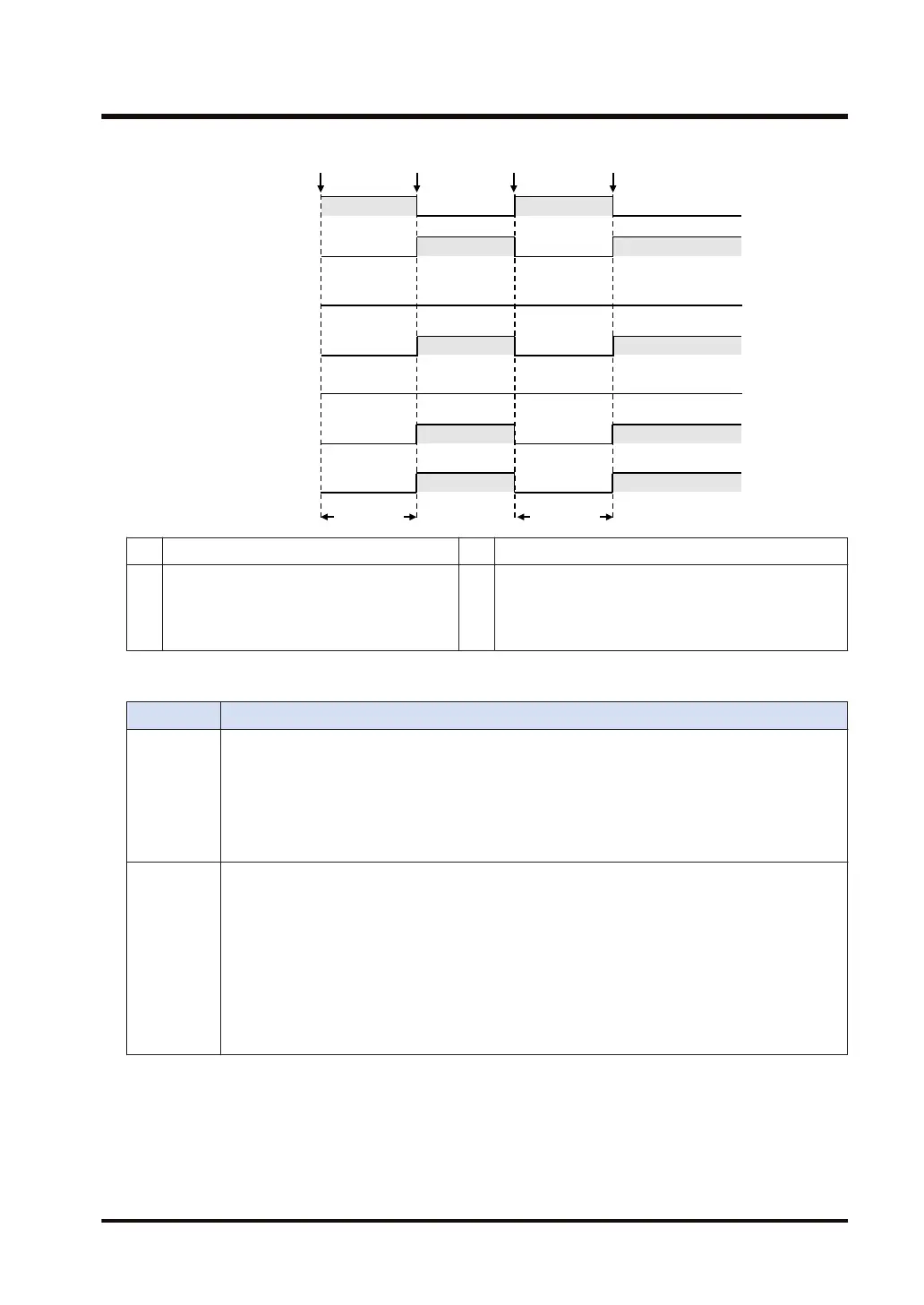

Panasonic FP7 Series Command Reference Manual

IP address established
(X62)
Ethernet initialization active
(X61)
(1) (2) (3) (4)
FTP server preparation done
(X64)
FTP client preparation done
(X65)
HTTP client preparation done
(X68)
SMTP client preparation done
(X69)
Master communication clear to
send flag
General-purpose communication
clear to send flag
About 3 sec.
About 3 sec.
(1) PROG > RUN (Power ON) (3) IPv4 address setting (Executes IPv4SET instruction)
(2)
Ethernet initialization completed
FTP client/SMTP client preparation
completed
Connection established
(4)
Ethernet initialization completed
FTP client/SMTP client preparation completed
Connection established
■
Flag operations
Name Description
SR7
SR8
(ER)
Set when a value outside the range is specified for the parameter.
Set when the same keyword is specified redundantly.
To be set when the slot number [S1] specified with UNITSEL is not 100 (built-in ET-LAN).
To be set when the setting is other than IPv4.
To be set when executed in an interrupt program.
Set when the number of characters for operand specifying character constant exceeds 256.
CY
(SR9)
Set when the instruction is executed while the specified IP address is incorrect. The detail code
set in SD29 is "1: Specification of incorrect IP address".
Set when the instruction is executed while the specified subnet mask is incorrect. The detail code
set in SD29 is "2: Specification of incorrect subnet mask".
Set when the instruction is executed while the specified default gateway is incorrect. The detail
code set in SD29 is "3: Specification of incorrect default gateway".
To be set when executed in combination with incorrect IP addresses. The detail code set in SD29
is "4: Combination of incorrect IP addresses".
Set when the instruction is the initialization of Ethernet. The detail code set in SD29 is "11:
Ethernet initialization active".
(Note 1) For details of the error codes stored in the system data SD29, refer to "20.2 List of System Data
Registers".
17.4 IPv4SET (IP Address Setting)
WUME-FP7CPUPGR-12 17-27
