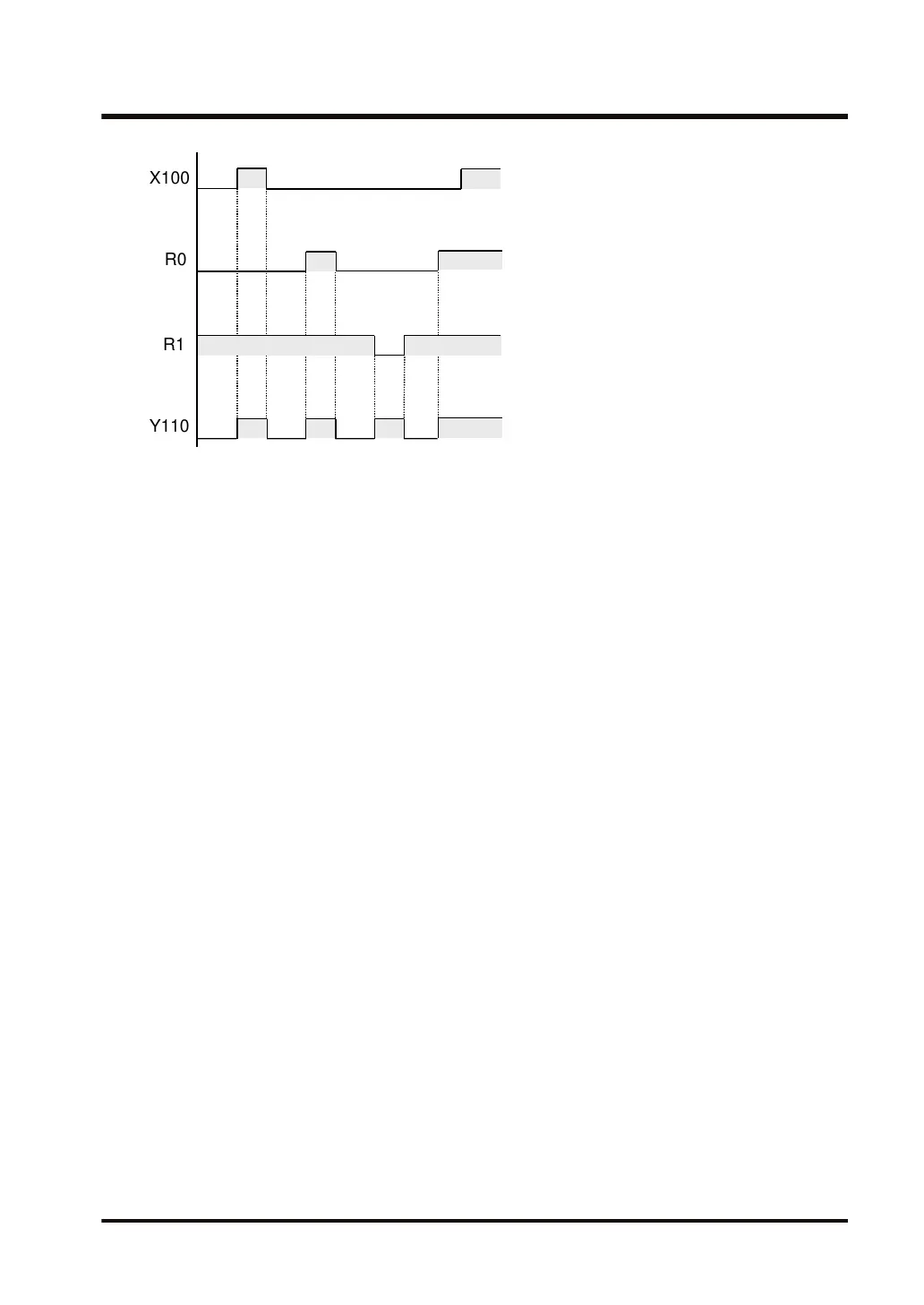

X100

Y110

■

Precautions for programming

● The "OR" and "OR/" instructions are initiated from the bus bar.

● The "OR" and "OR/" instructions can be used consecutively.

3.3 OR, OR/ (OR, OR NOT)

WUME-FP7CPUPGR-12 3-7
