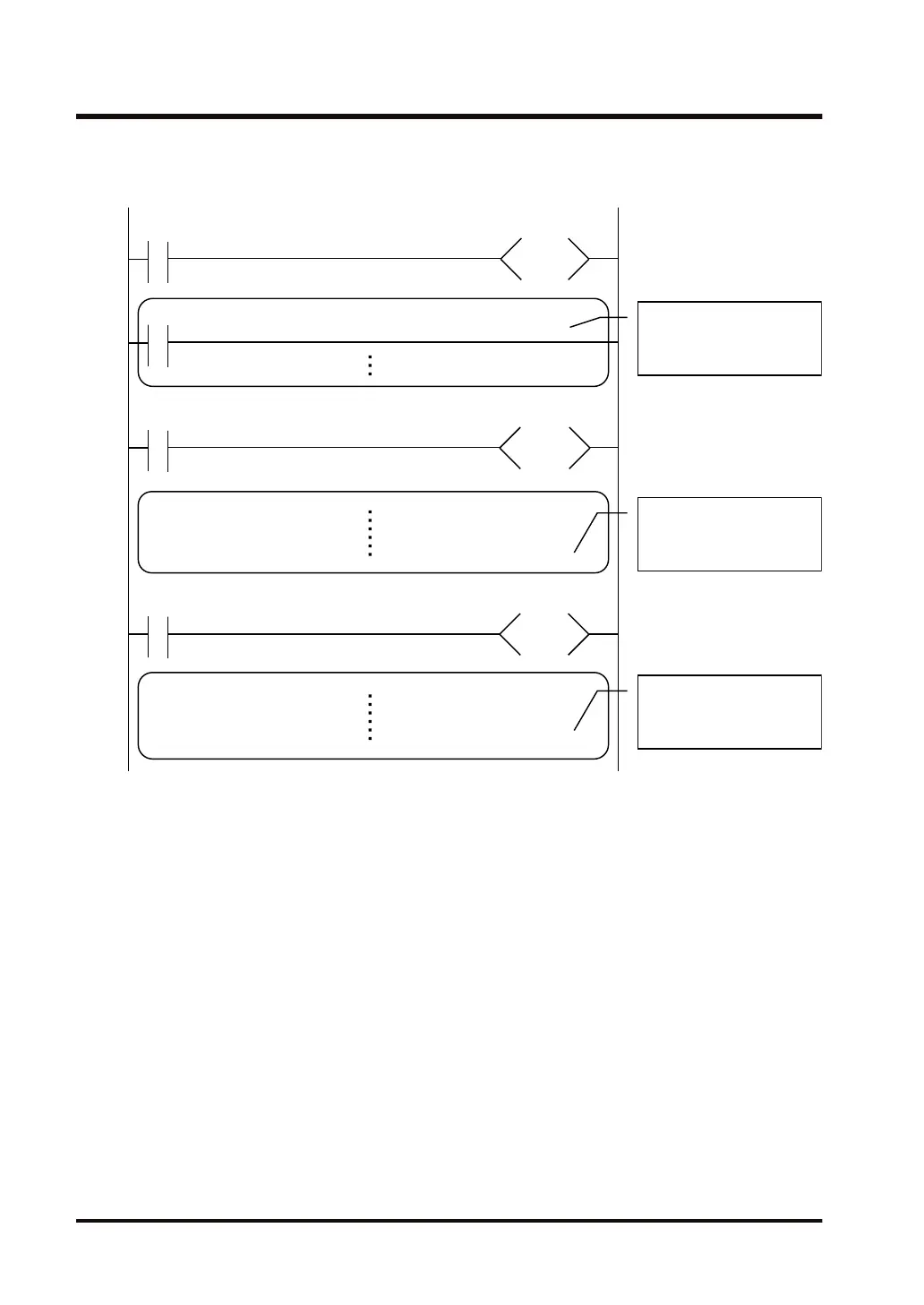

Example) Processing when the SET, RST and OT instructions are used (with X100 to
X102 all ON)
R0
X0
X1
X2
This part of the
program is processed
as R0 = ON.
This part of the
program is processed
as R0 = OFF.
SET
R0
R0
RST
R0
SET
This part of the
program is processed
as R0 = ON.
■
Determination of operation result
● If the same output is used in duplicate by several instructions such as the OT instruction, KP
instruction, SET instruction, RST instruction, or a transfer instruction, the output obtained
when I/O refresh is performed is determined by the final operation results.
19.6 Use of Duplicate Output
19-12 WUME-FP7CPUPGR-12
