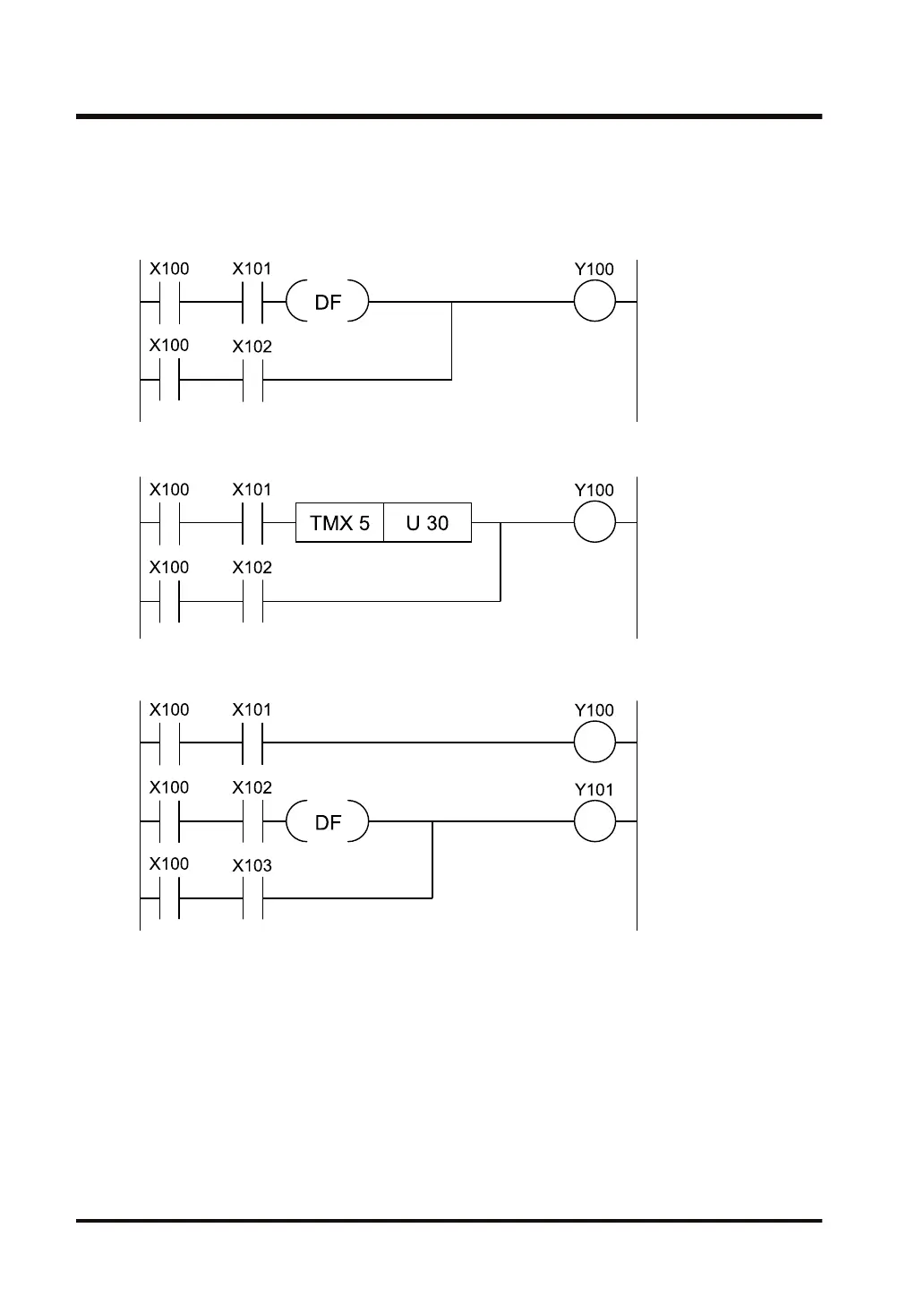

Examples for correcting invalid programs

● The invalid programs above can be respectively corrected in the following manner.

Program for correcting example 1

Program for correcting example 2

Program for correcting example 3

19.8 Precautions for Programming

19-20 WUME-FP7CPUPGR-12
