Panasonic FP7 Series Command Reference Manual

■

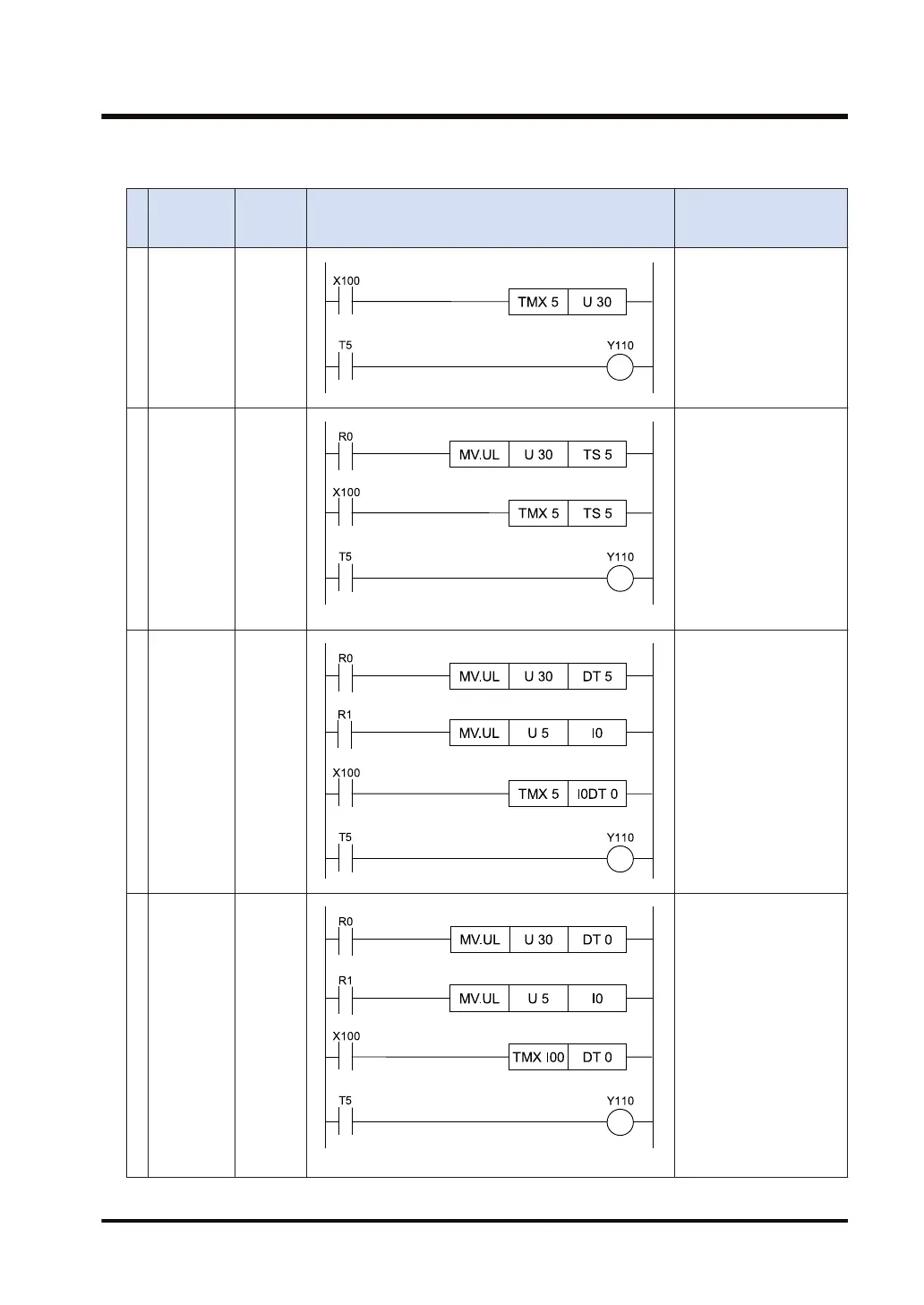

Timer number and timer setting value combinations
Timer
number
Timer
set
value
Ladder diagram Description
1 Constant Constant
Setting both the timer
number and timer setting
value with a constant
2 Constant
Device
No.
Setting a constant for the
timer number, and a
device number for the
timer setting value
3 Constant
Device
number
with
index
modificati
on
Setting a constant for the
timer number, and a
device number with index
modification for the timer
setting value
On FPWIN GR7, input
the timer instruction in
the following order:
[TM/CT (F5)]
[TMX (F1)][5][ENTER]
→[INDEX (F9)][I0 (F1)]
[DT (F5)][0][ENTER]
4
Timer
number
with index
modificatio
n
Device
No.
Setting a constant with
index modification for the
timer number, and a
device number for the
timer setting value
On FPWIN GR7, input
the timer instruction in
the following order:
[TM/CT (F5)]
[TMX (F1)]
[INDEX (F9)]
[I0 (F1)][0][ENTER]
→[DT (F5)][0][ENTER]
(Note 1) Refer to "I0 to IE Index Register" in "2.6 Description of the memory area".
3.17 TM (Timer)
WUME-FP7CPUPGR-12 3-45
