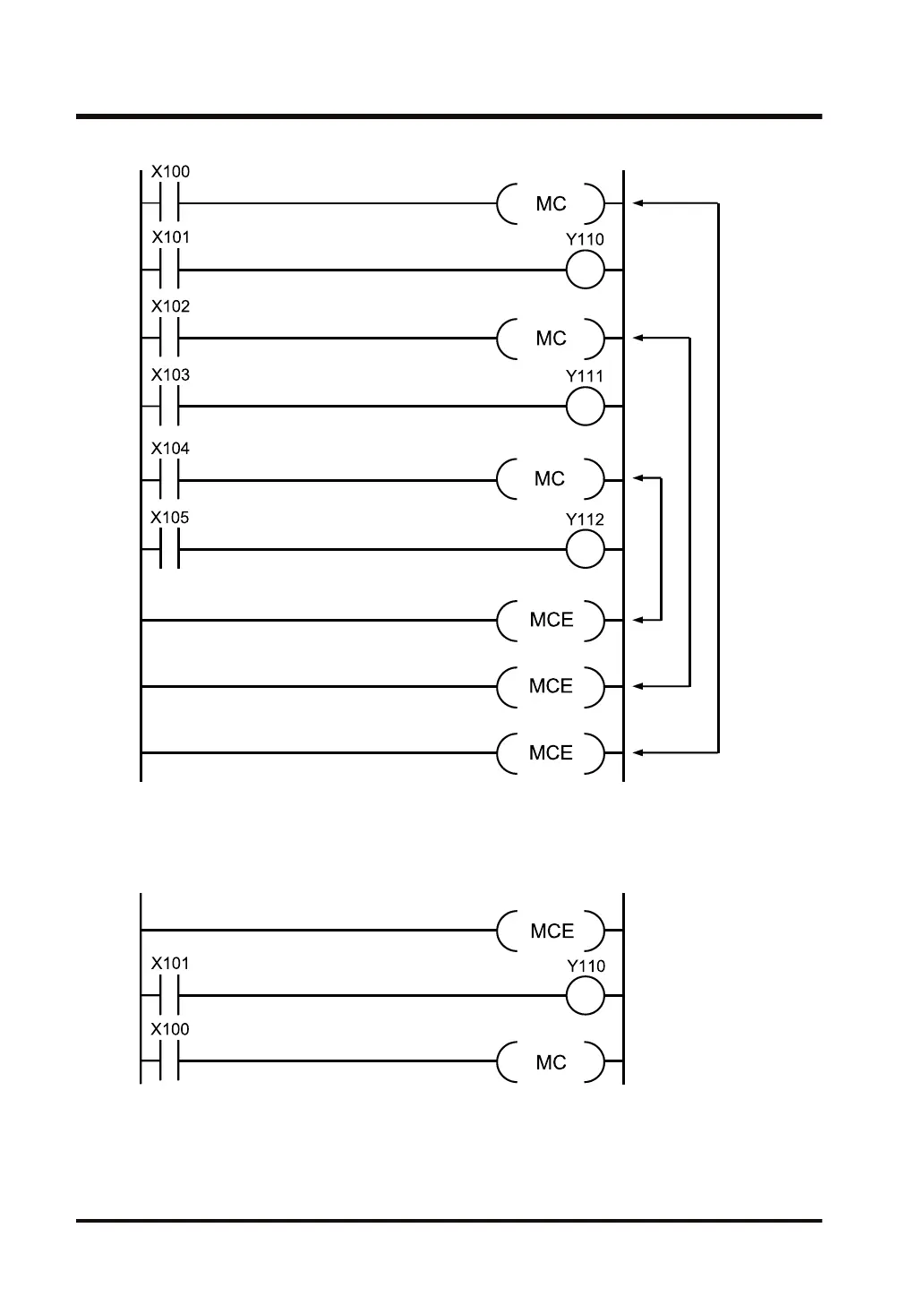

● The program cannot be executed in the following cases.

(1) "MC" or "MCE" is missing in a pair.

(2) The order of "MC" and "MCE" is reversed.

3.25 MC (Master Control Relay), MCE (Master Control Relay End)

3-80 WUME-FP7CPUPGR-12
