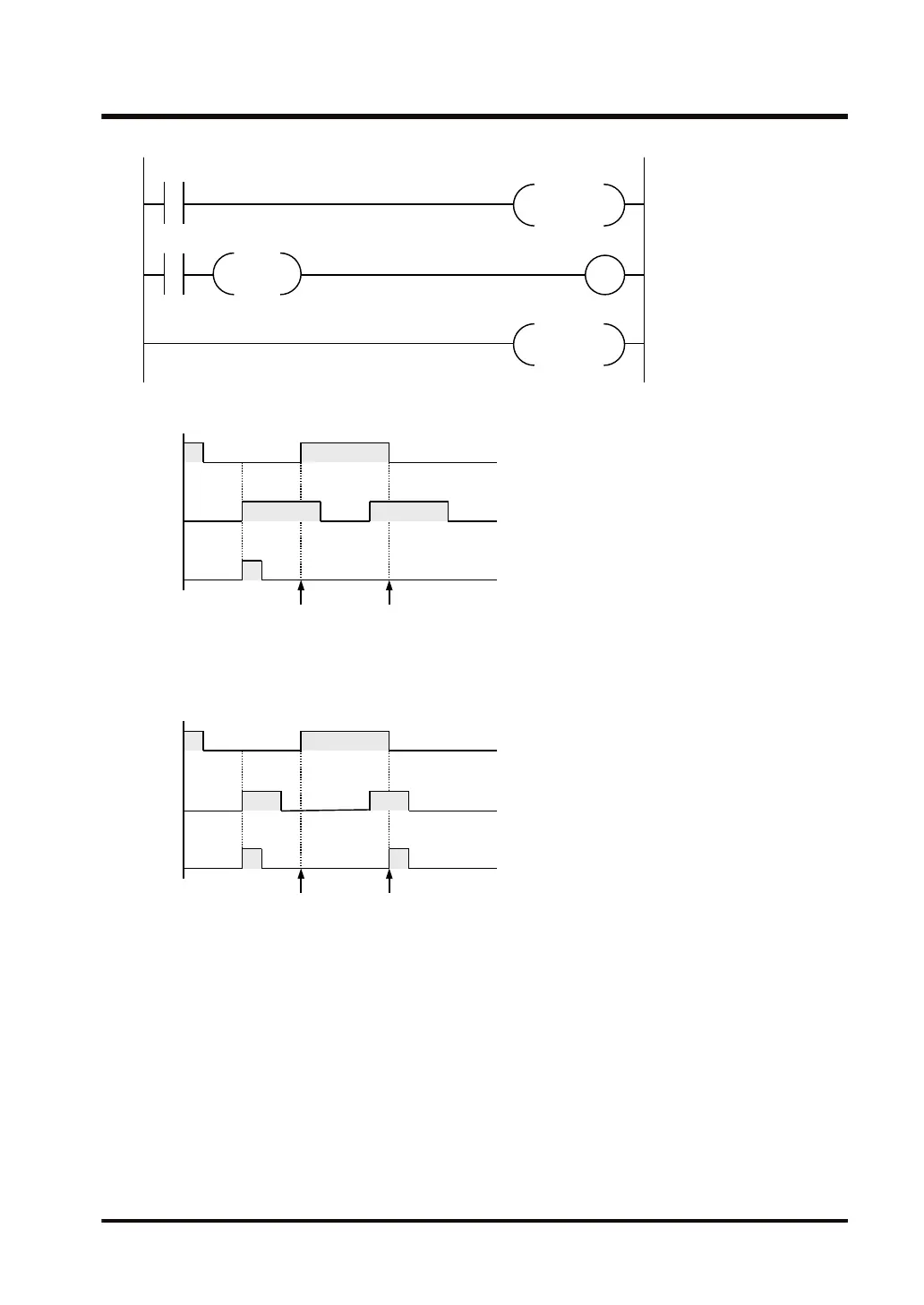

LBL 1
JP 1
X100
DF
X101
Y110
X100
X101
Y110
<Timing Chart 2>
X100
X101
Y110
Since the execution condition X101 for the differential
instruction has not changed from t he final timing with no
execution of the last JP instruction, no differential output is
obtained.
Final timing with no
execution of the last
JP instruction
Since the execution condition X101 for the differential
instruction has changed from OFF to ON from the final timing
with no execution of the last JP instruction, differential output is
obtained.
Final timing with no
execution of the last
JP instruction
<Timing Chart 1>
● If the same execution condition is used for the JP and differential instructions, rising (or
falling) of the execution condition for the differential instruction will not be detected. If the
differential output is necessary, be sure to write the differential instruction outside the range
between JP and LBL.
3.26 JP/LBL (Jump/Label)
WUME-FP7CPUPGR-12 3-85
