Panasonic FP7 Series Command Reference Manual

■

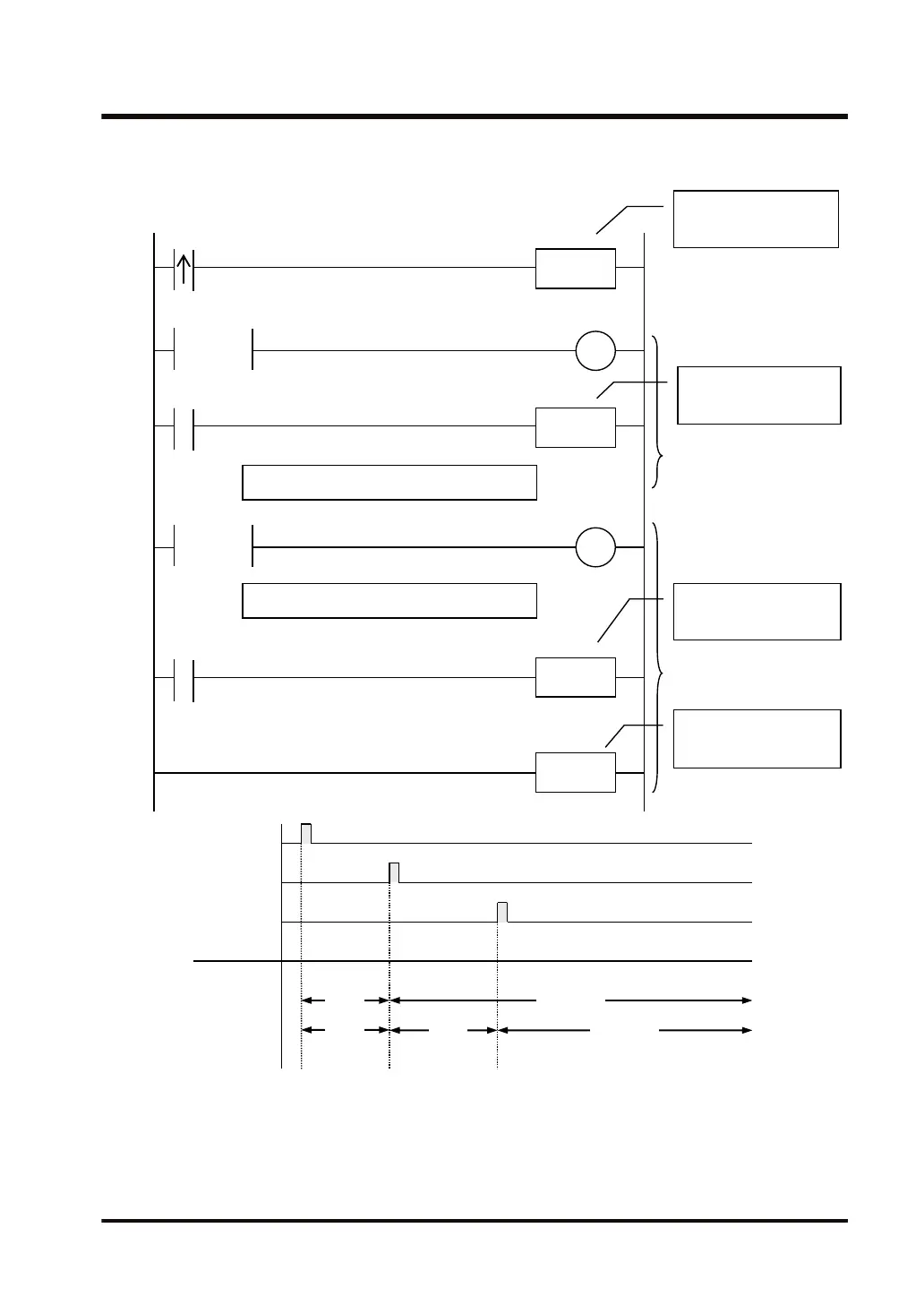

Operation Example
Process 1
R1
X101
R1
SSTP
Y110
NSTL
R2
X102
NSTL
(Program)
R2
SSTP
Y111
STPE
Process 2
X103
CSTP
X102
X103
Process 1 (R1)
X101
Process 2 (R2)
Start
(Program)
Starts the process
1 by NSTL.
R2
Stops the process
2 by CSTP.
Indicates that
process stopped.
Starts the process
2 by NSTL.
StopStart
Stop
Stop
■
SSTP Start Step Instruction
● This instruction indicates "Start of output number [n]." Be sure to write the "SSTP n" at the
beginning of the program of the output number [n].
● Program code between "SSTP n" and the next "SSTP" or "STPE" is handled as the area with
the output number [n].
3.32 SSTP (Start Step) / NSTL (Next Step) / CSTP (Clear Step) / STPE (Step
End)
WUME-FP7CPUPGR-12 3-97
