Panasonic FP7 Series Command Reference Manual

● The calculation result is stored in the address starting with [D].
● When the mask data specified for [S3] is ON for the bit, the combination starts from [S1].
When it is OFF, the combination starts from [S2].
{ [S1] ˄ [S3] } ˅ { [S2] ˄ /[S3] } → [D]
■
Processing

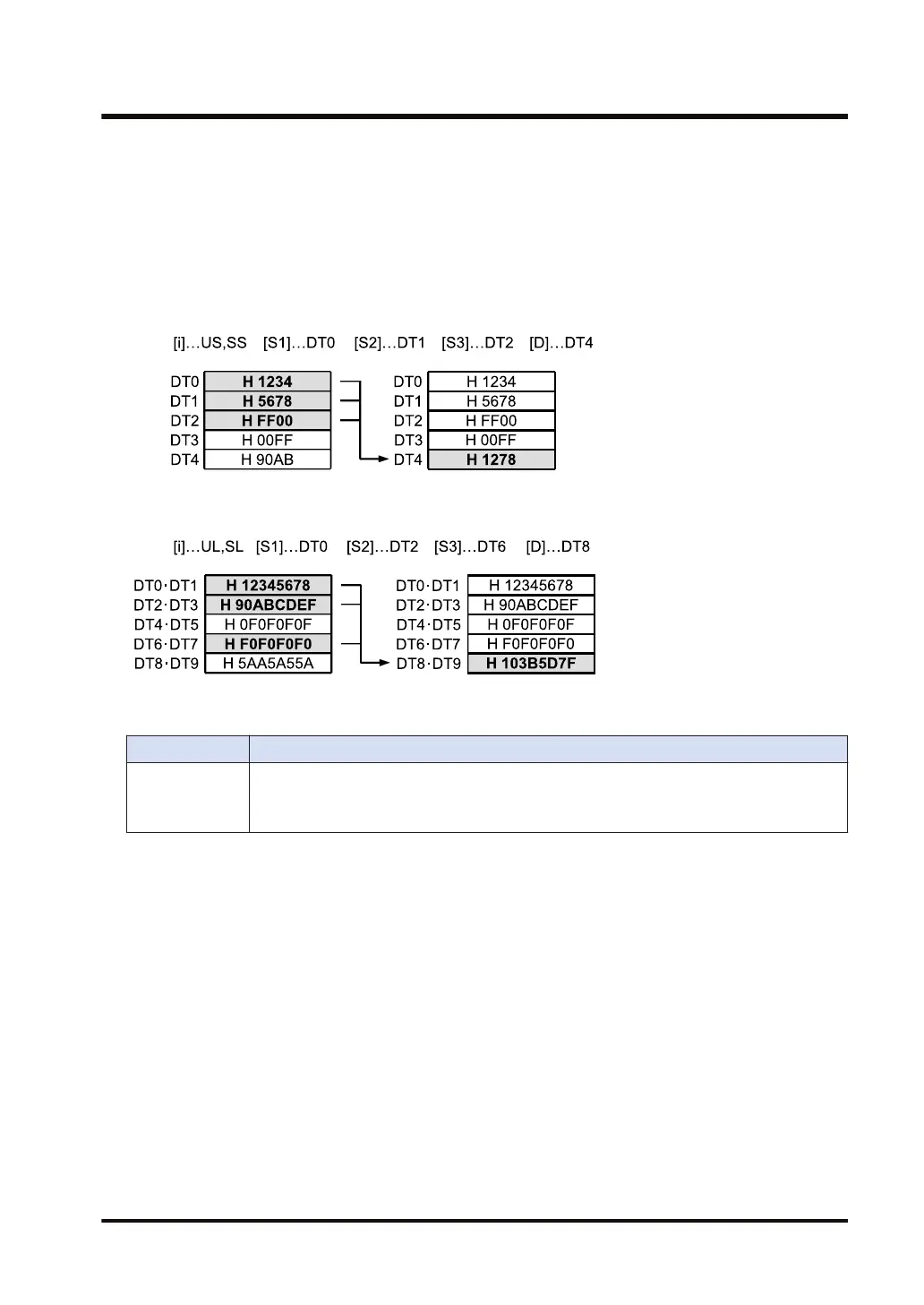

Example 1) When the operation unit is 16-bit (US, SS)
Example 2) Operation unit: 32 bits (UL, SL)
■
Flag operations
Name Description
SR7
SR8
(ER)
To be set in the case of out-of-range in indirect access (index modification).
6.20 COMB (Combination)
WUME-FP7CPUPGR-12 6-43
