Processing

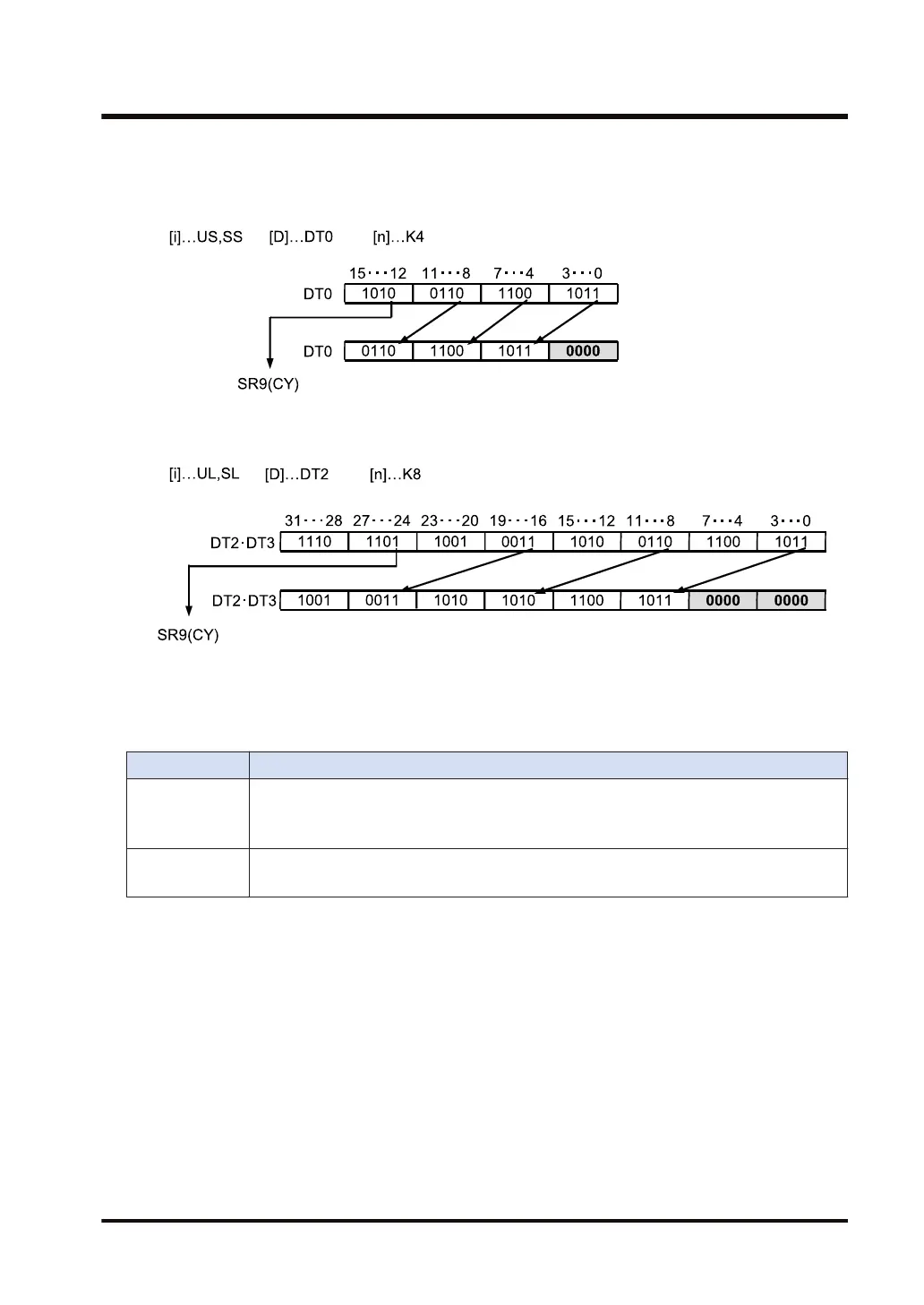

Example 1) When the operation unit is 16-bit (US, SS)
Example 2) Operation unit: 32 bits (UL, SL)
Isn't the shift destination for 11 ... 8 "0110"?
■
Flag operations
Name Description
SR7
SR8
(ER)
To be set in the case of out-of-range in indirect access (index modification).
SR9
(CY)
To be reset if the [n] (no. of shift bits) is larger than the operation unit. In other cases, data in
the [n]th bit from the most significant bit are to be set
8.2 SHL (Left Shift for n Bits)
WUME-FP7CPUPGR-12 8-5
