● If the operation unit is 16 bits (US, SS), the amount of shift is specified between 1 to 4 digits.
● If the operation unit is 32 bits (UL, SL), the amount of shift is specified between 1 to 8 digits.
■

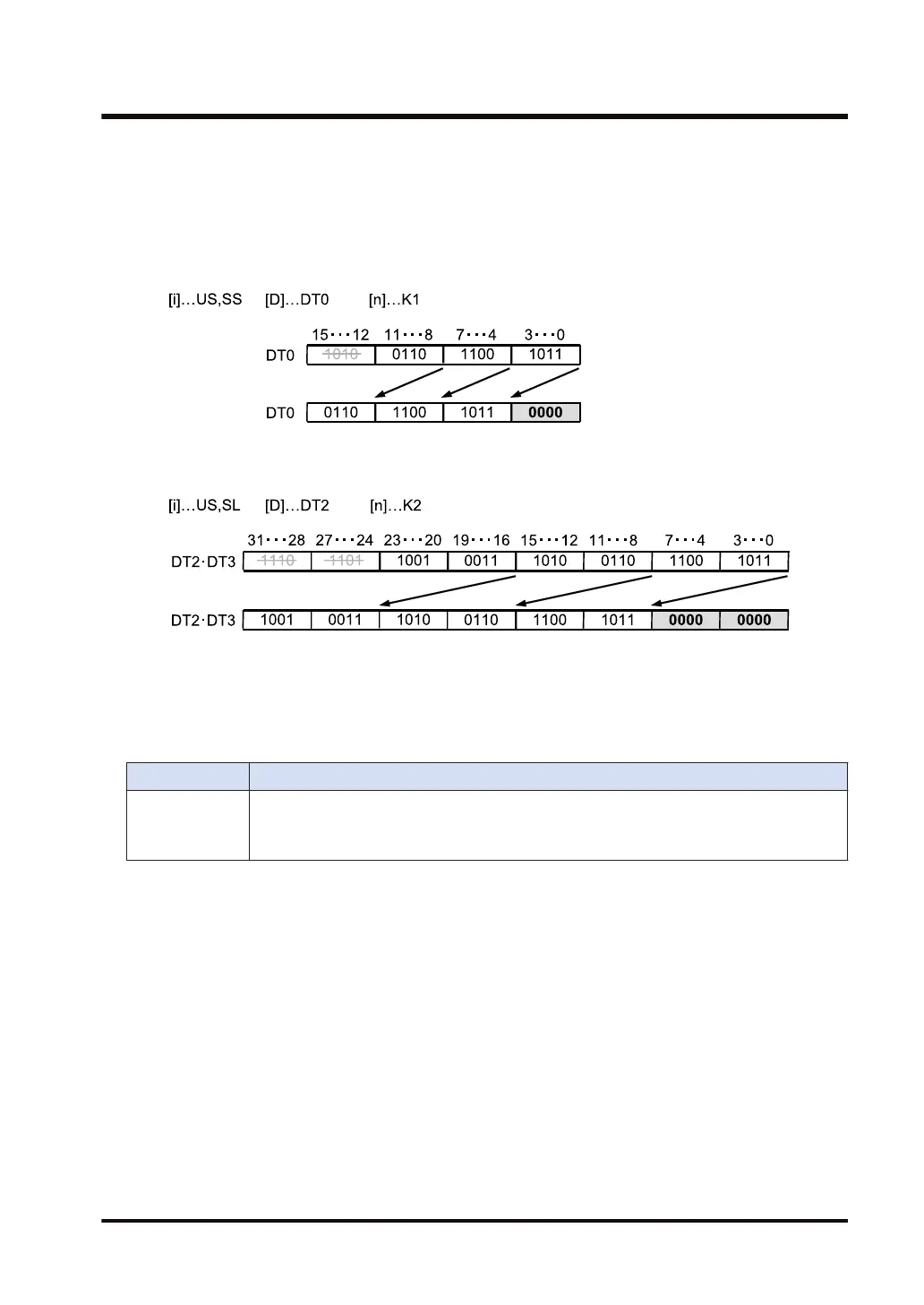

Processing
Example 1) When the operation unit is 16-bit (US, SS)
Example 2) Operation unit: 32 bits (UL, SL)
■
Precautions for programming
The digit data that have been shifted out are cleared.
■
Flag operations
Name Description
SR7
SR8
(ER)
To be set in the case of out-of-range in indirect access (index modification).
8.4 BSL (Left Shift for n Digits)
WUME-FP7CPUPGR-12 8-9
