● If the specified number of shift digits is larger than the shift target range, the entire shift target
range is padded with H0000.
■
Processing

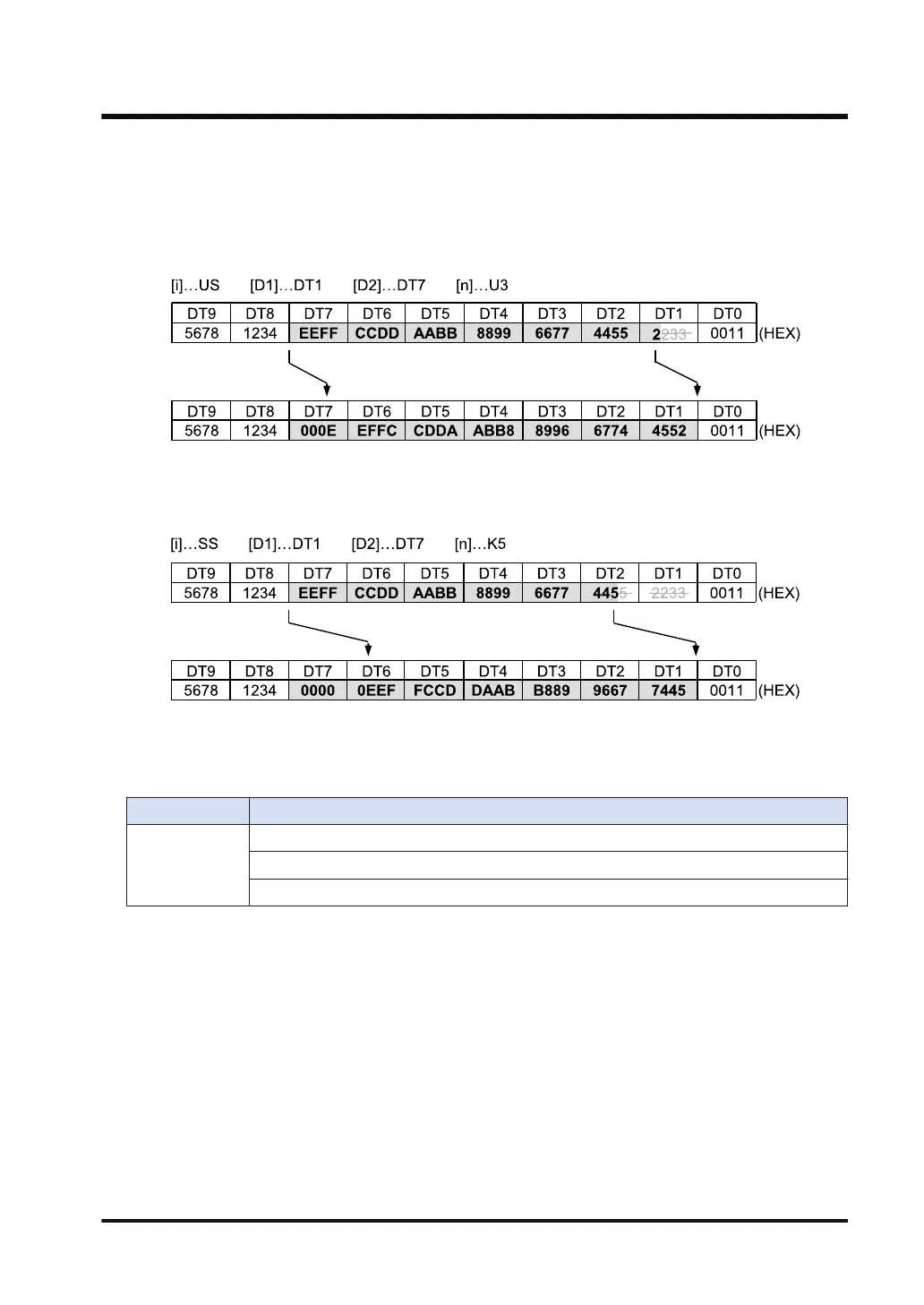

Example 1) Operation unit: 16 bits (US)
↑The shifted digits are padded with H0
Example 2) Operation unit: 16 bits (SS)
↑The shifted digits are padded with H0
■
Flag operations
Name Description
SR7
SR8
(ER)
To be set in the case of out-of-range in indirect access (index modification).
To be set when [D1] is larger than [D2].
To be set when [n] (specified number of shift digits) is out of the available range.
8.9 WBSR (Right Shift of Block Area for n Digits)
