Processing

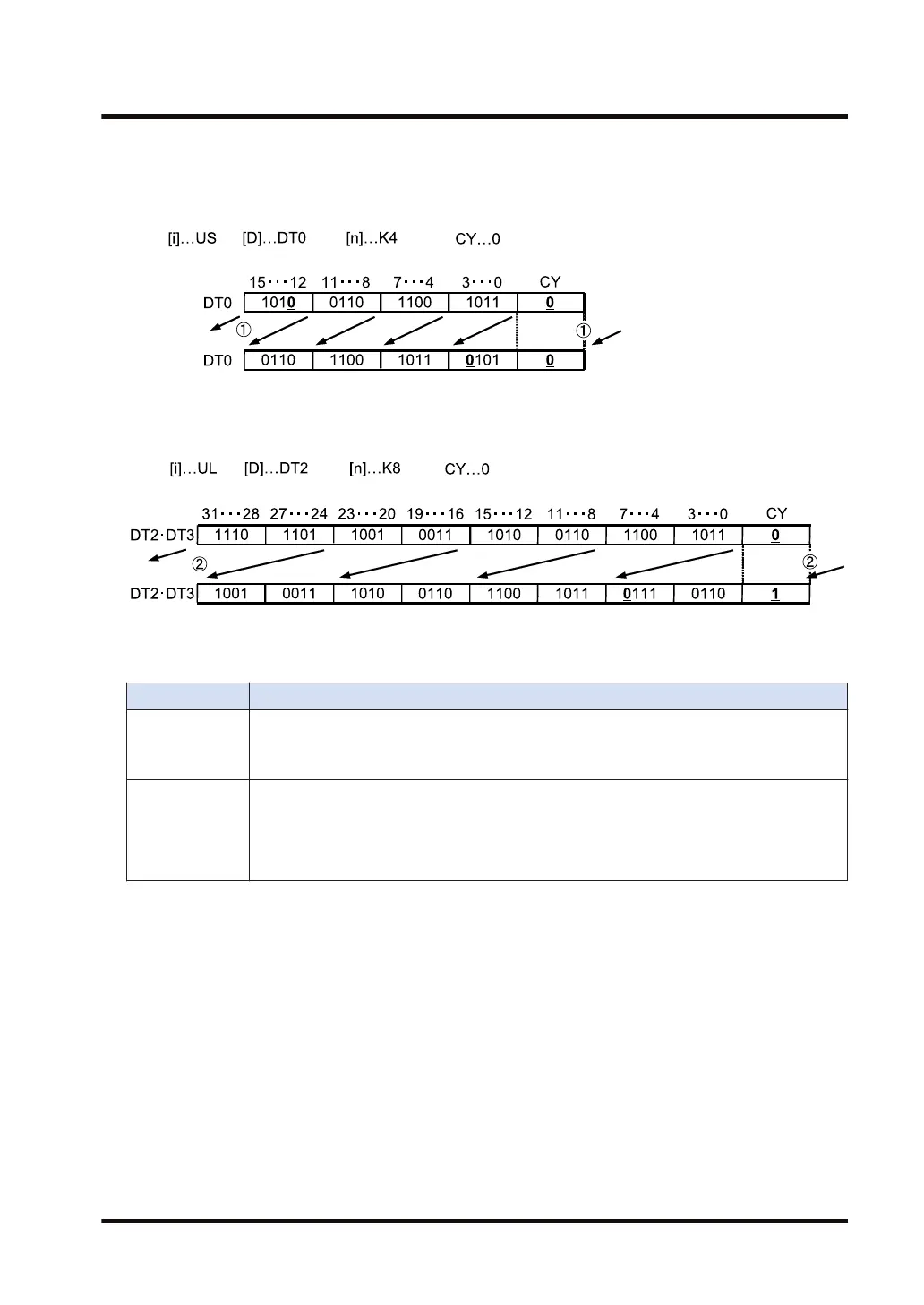

Example 1) Operation unit: 16 bits (US)
Output bit 12 of the pre-operation data to CY. Output CY of the pre-operation data to bit 3
Example 2) Operation unit: 32 bits (UL)
Output bit 24 of the pre-operation data to CY. Output CY of the pre-operation data to bit 7
■
Flag operations
Name Description
SR7
SR8
(ER)
To be set in the case of out-of-range in indirect access (index modification).
SR9
(CY)
(Bit length of the operation unit - rotation amount) bits of the pre-operation data are output
When the operation unit is 16 bits (US), if [n] is either 0 or a multiple of 17, the rotation
amount is regarded as 0, and no change occurs.
When the operation unit is 32 bits (UL), if [n] is either 0 or a multiple of 33, the rotation
amount is regarded as 0, and no change occurs.
8.14 RCL (Left Rotation of Data with Carry-Flag Data)
WUME-FP7CPUPGR-12 8-29
