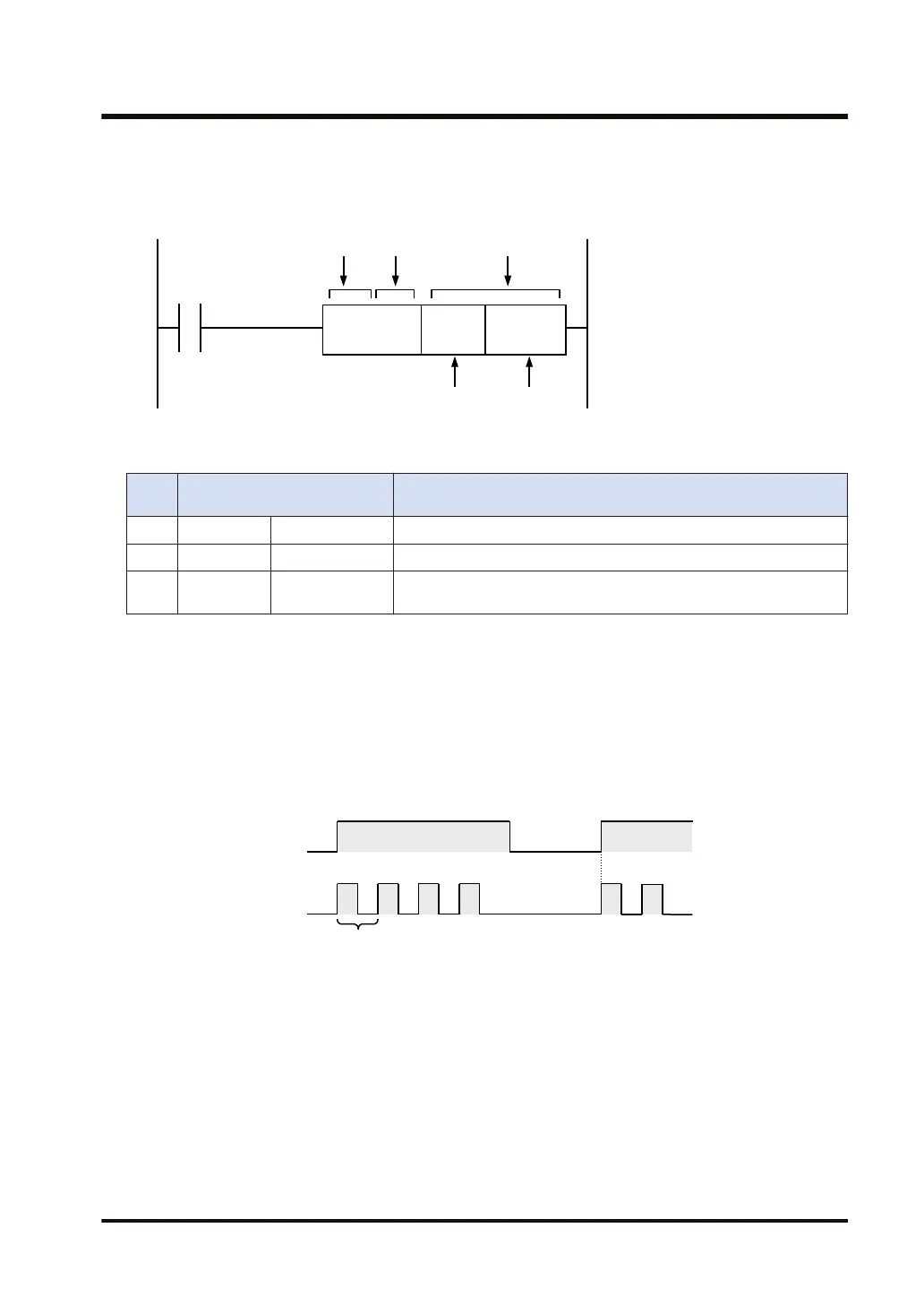

● Operands indicate the targets of operation and/or methods for operation processes. There
are three types of operands: [S], [D], and [n]. The number and types of operands that need to
be specified vary by instruction.
MV. SS K0 DT0
Mnemonic OperandOperation unit
DS
R0
■
Types of operands
Symb
ol
Abbreviation Function
S Source Source Specify data targeted by operation and/or methods for processing.
D Destination Destination Specify the storage location for operation result.
n Number Number
Numerical data that specify data targeted by operation and/or
methods for processing.
■
Every Scan Execution Type and Differential Execution Type
● For high-level instructions, there are two execution types: every scan execution type and
differential execution type.
(1) Every Scan Execution Type
This type of instruction is executed repeatedly for every scan while the internal relay is
established.
Internal relay
High-level instruction
ON
OFF
Executed
Single scan
(2) Differential Execution Type
This type of instruction is executed only for a single scan when a leading edge or trailing edge
of the internal relay is detected.
2.1 Structure of Instructions
WUME-FP7CPUPGR-12 2-5
