(3) LOOP to LBL instructions
(4) CNDE instruction
(5) Step ladder instructions
(6) Subroutine instructions
● For details, refer to "19.7 Rise Detection Method".
● Please take care that the program is not described incorrectly when combining the differential
execution type high-level instruction with the AND stack instruction or pop stack instruction. For
details, refer to "19.8 Precautions for Programming".
■
High-level instructions and internal relay
● High-level instructions are always used as a pair with internal relay.
● When the operation result of the relay sequence circuit specified for an internal relay is ON,
the high-level instruction is executed.

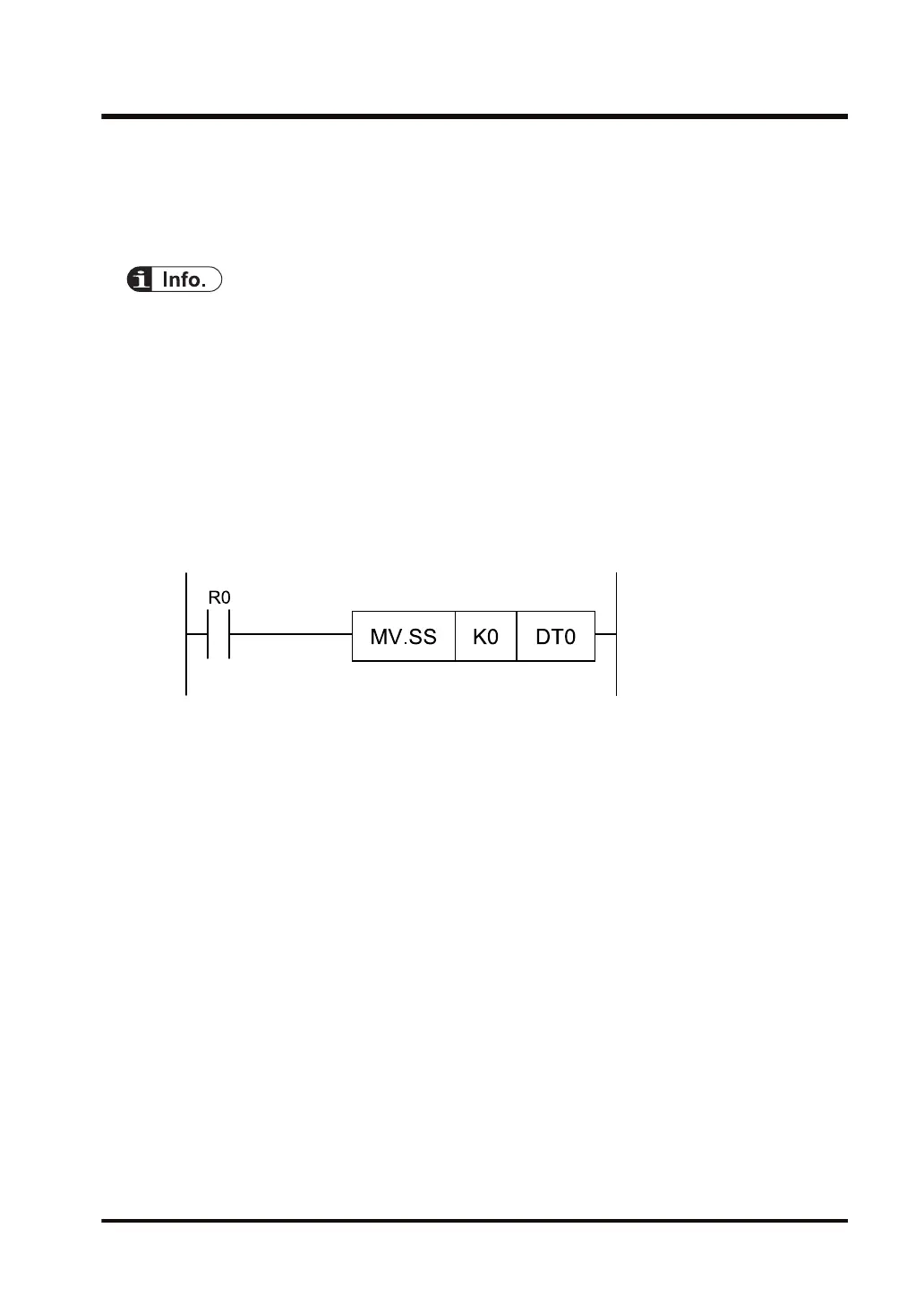

Example) When the internal relay R0 is ON, the MV instruction is executed, and K0
is transferred to DT0.
● When using high-level instructions repeatedly and the internal relay is the same, from the
second time the internal relay can be omitted.
2.1 Structure of Instructions
WUME-FP7CPUPGR-12 2-7
