Panasonic FP7 Series - Page 611

■
Processing
K 1
K 1
[S1]…DT0 [S2]…DT10 [D]…DT20
－
(year)
(month)
(day)
(hours)
(minutes)
(seconds)

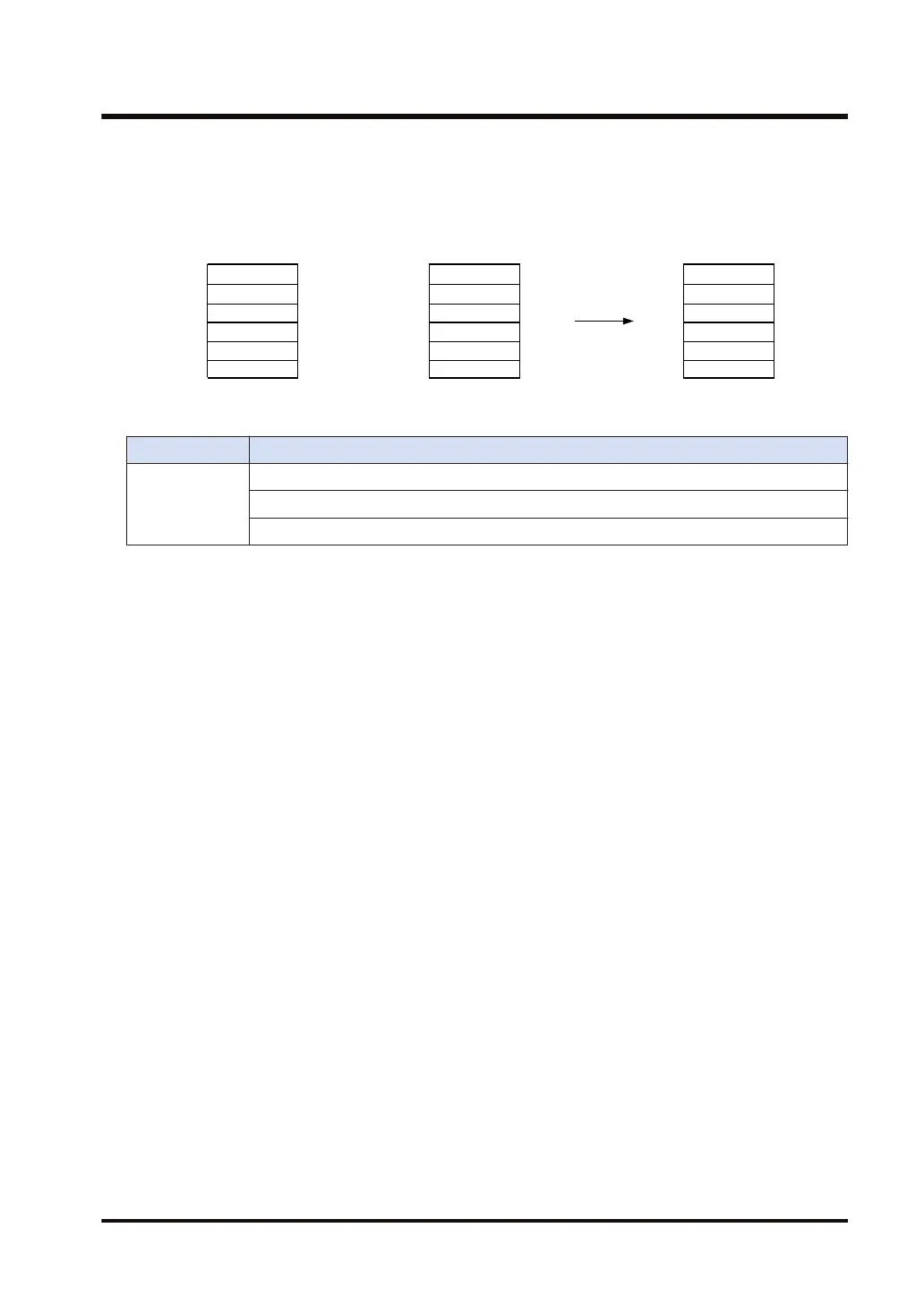

Example) Subtract 20 hours, 23 minutes and 45 seconds from 08:54:19, January 1, 2012
K 12
K 8
DT0
DT1
DT2
DT3
DT4
DT5
K 54
K 19
(hours)
(minutes)
(seconds)
K 20
K 23
K 45
K 31
K 12
(year)
(month)
(day)
(hours)
(minutes)
(seconds)
K 11
K 12
K 30
K 34
DT10
DT11
DT12
DT20
DT21
DT22
DT23
DT24
DT25
■
Flag operations
Name Description
SR7
SR8
(ER)
To be set in the case of out-of-range in indirect access (index modification).
To be set when the clock data range and/or the time data range is exceeded.
To be set when the subtraction result is out of the accessible range.
