Panasonic FP7 Series Command Reference Manual

②
①
④
③
⑥
⑤
⑧
⑦
⑤⑥
⑦⑧
③④
①②
[D+1] [D]
ASCII Code

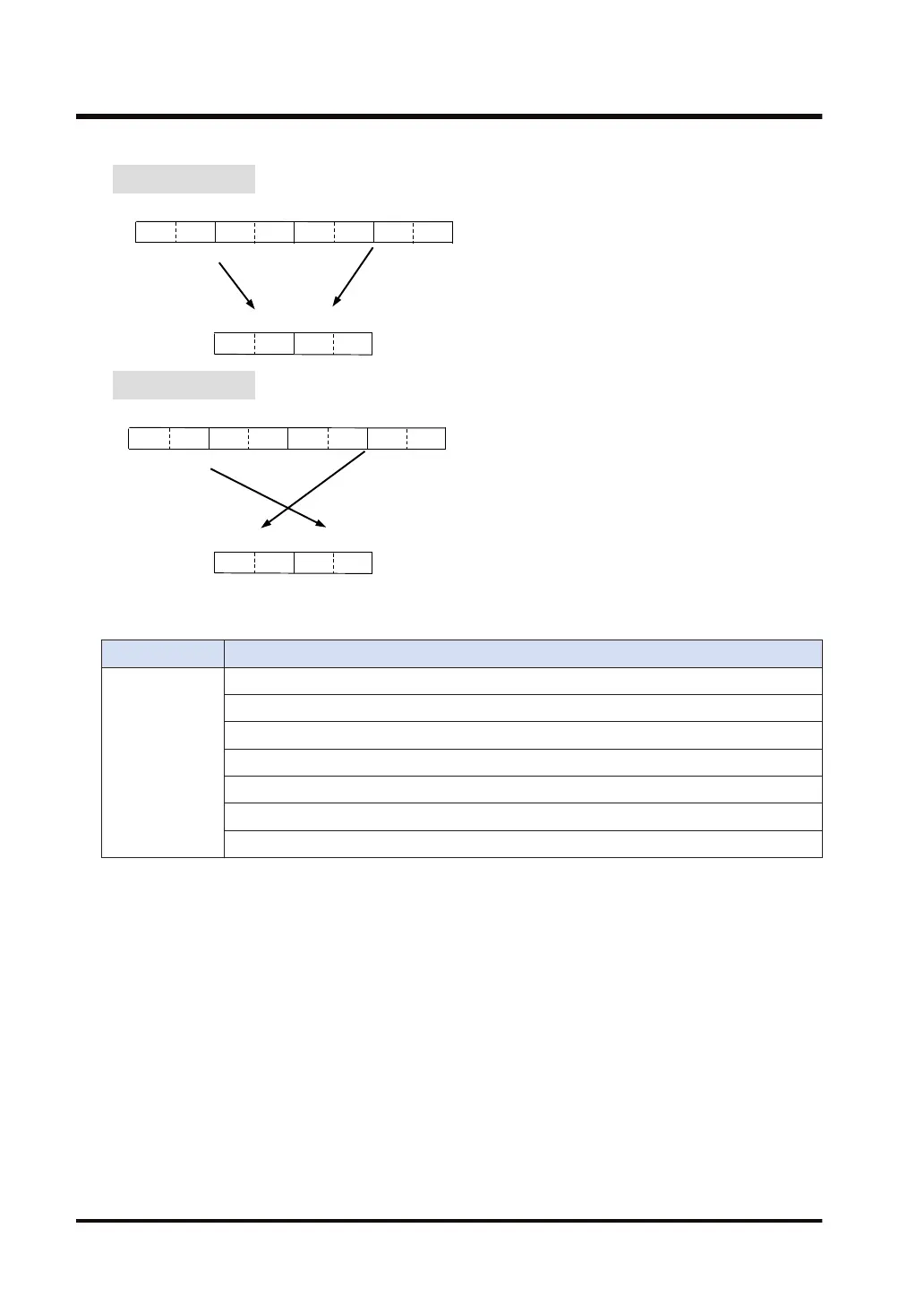

[S1+3] [S1+2] [S1+1] [S1]
[Forward direction]
⑧
⑦ ⑥
⑤
④ ③
②
①
⑤⑥
⑦⑧
③④
①②
[D+1] [D]
ASCII Code
[S1+3] [S1+2] [S1+1] [S1]
[Reverse direction]
BCD
BCD
■
Flag operations
Name Description
SR7
SR8
(ER)
To be set in the case of out-of-range in indirect access (index modification).
To be set when the ASCII codes specified by [S1] contain data other than 0 to 9.
To be set when the number of bytes specified by [S2] exceeds the [S1] area.
To be set when the conversion result exceeds the area.
To be set when [S2] is specified as '0'.
To be set when the conversion direction of [S2] is out of the range.
To be set when the conversion data size of [S2] is out of the range.
14.6 ABCD (Conversion: Decimal ASCII → BCD)
14-22 WUME-FP7CPUPGR-12
