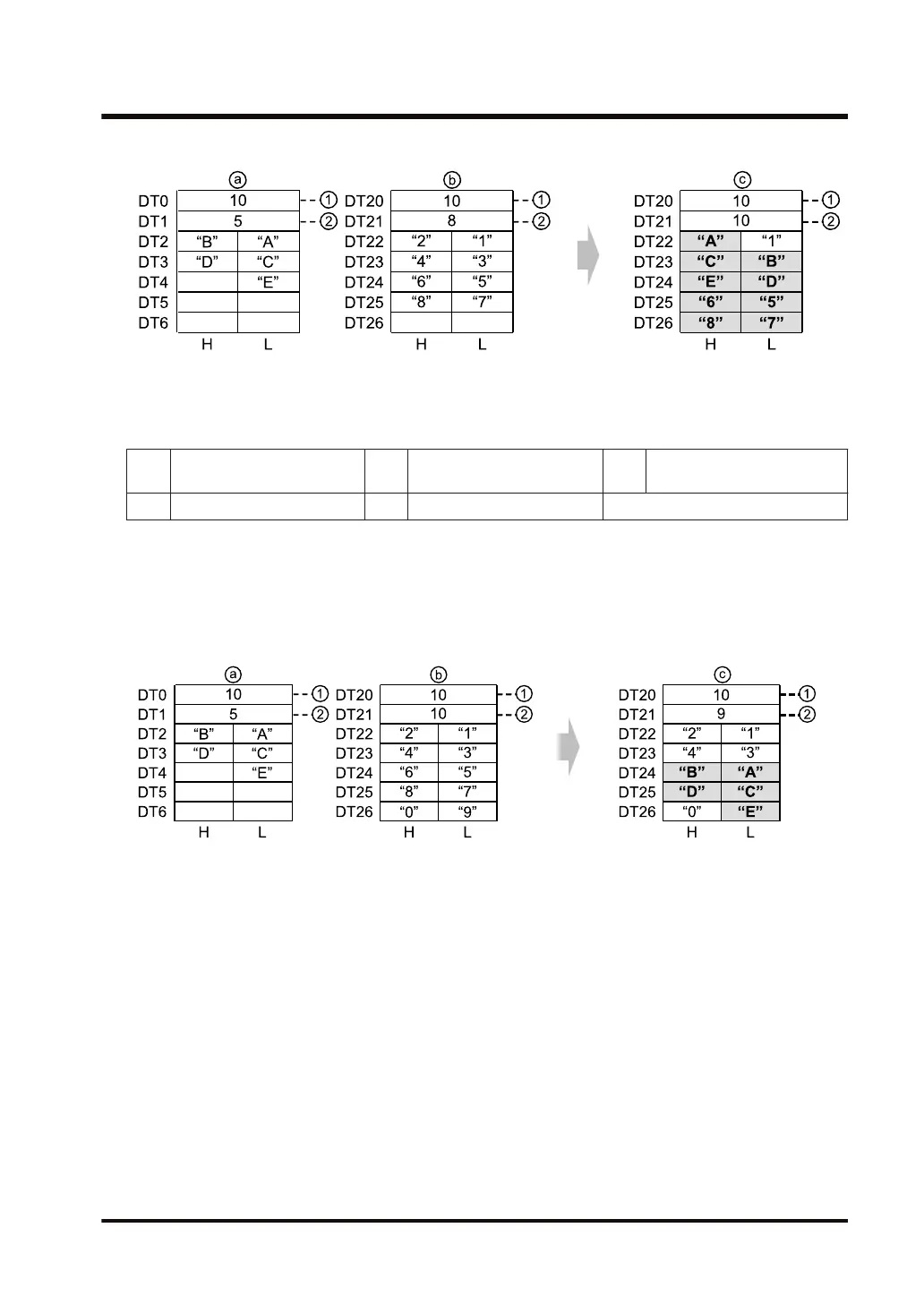

(Note 1) The data "234", from the 2nd to the 4th character in the destination area (before transferring), is
deleted, and the data "5678", from the 5th to the 8th character, is shifted.
(a)
Area in which the string to
be taken out is stored
(b)
Destination area (before
transferring)
(c)
Destination area (after
transferring)
(1) Storage area size (2) Character count -
Example 2) Taking out the five characters "ABCDE" from the DT0 string to transfer
them to the 4th byte (5th character) of the DT20 string
This indicates that the number of characters specified for [n] is larger than the number of
characters for the string that is stored in [S1].
[S]...DT0 [D]...DT20 [p]...U4 [n]...U8
Example 3) When the number of characters that were taken out exceeds the storage
area size for [D]
Only the amount of characters that can be stored in [D] starting from the 5th byte (6th
character) is transferred, and carry flag SR9 (CY) is set to ON.
[S]...DT30 [D]...DT50 [p]...U5 [n]...U3
14.37 ESREP (Replacement of a String: With Storage Area Size)
WUME-FP7CPUPGR-12 14-143
