Panasonic FP7 Series Command Reference Manual

● Using the SSET instruction, convert any given message into an ASCII string. Set the number
of sent characters to the data register DT100, and the sent message to the data register
DT101.
● The UNITSEL instruction is used to specify a slot number (LAN port: U100) and the
connection number (U1).
● In the GPTRNS / pGPSEND / GPSEND instruction, specify and execute the start of the table
that stores the message to be sent (DT101) and the number of characters in the data
(DT100).

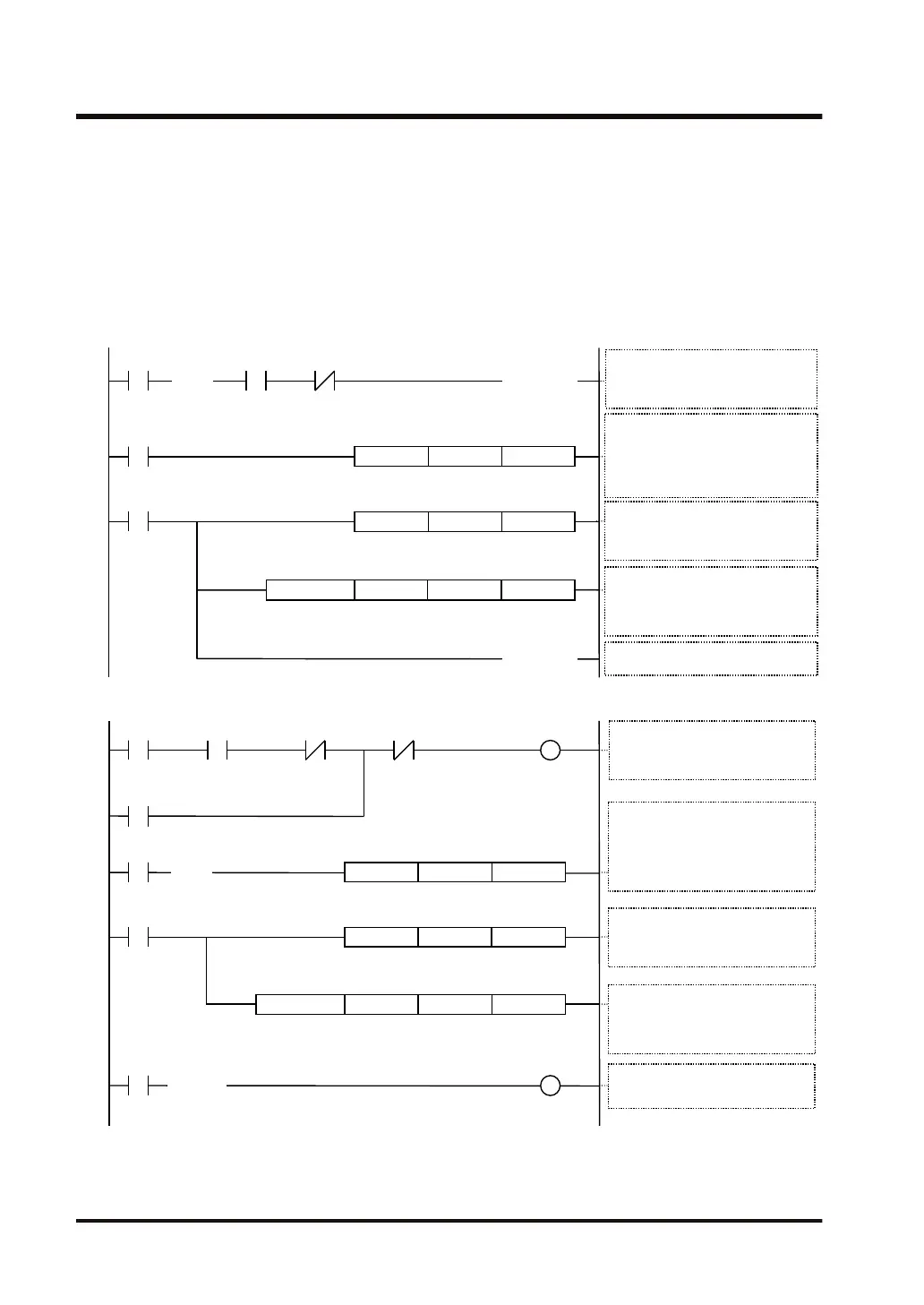

GPTRNS instruction
R0
( )DF
SSET DT100"ABCDE"
R100
R100
UNITSEL U1U100
GPTRNS.US
DT101 DT0DT100
X80 Y80
GPTRNS execution conditions
X80: Clear to send flag: ON
Y80: Send active flag: OFF
Transmission processing
S: Header for sent data (DT101)
n: Number of sent characters (DT100)
D: Execution result code (DT0)
Data conversion
S1: Sent data
S2: Sent data storage
DT100: Number of sent characters
DT101 and after: Sent data
GPTRNS execution conditions reset
S1 S2
S n D
S1 S2
R100
< >
RST
R100
< >
SET
Communication port settings
S1: CPU LAN port (U100)
S2: Connection 1 (U1)
GPSEND instruction
R0
SSET DT100“ABCDE”
R100
R100
R100
UNITSEL U1U100
GPSEND.US
DT101 DT0DT100
X80 Y80
GPSEND execution conditions
X80: Clear to send flag：ON
Y80: Send active flag：OFF
Transmission processing
S: Header for sent data (DT101)
n: Number of sent characters(DT100)
D: Execution result code (DT0)
R100
Data conversion
S1: Sent data
S2: Sent data storage
DT100: Number of sent characters
DT101 and after: Sent data
R101
（（ ））
DF
Y80 R101
（（ ））
DF /
Transmission completion check
GPSEND execution conditions reset
S1 S2
S n D
Communication port settings
S1: CPU LAN port (U100)
S2: Connection 1 (U1)
S1 S2
15.2 GPTRNS / pGPSEND /GPSEND (General-Purpose Communication
Send Instruction)
