Drum
D093/D09
4 5-50
SM
5.5.2 CLEANING
BLADE
1. Drum
(
p.5-47 "Drum Unit")
2.

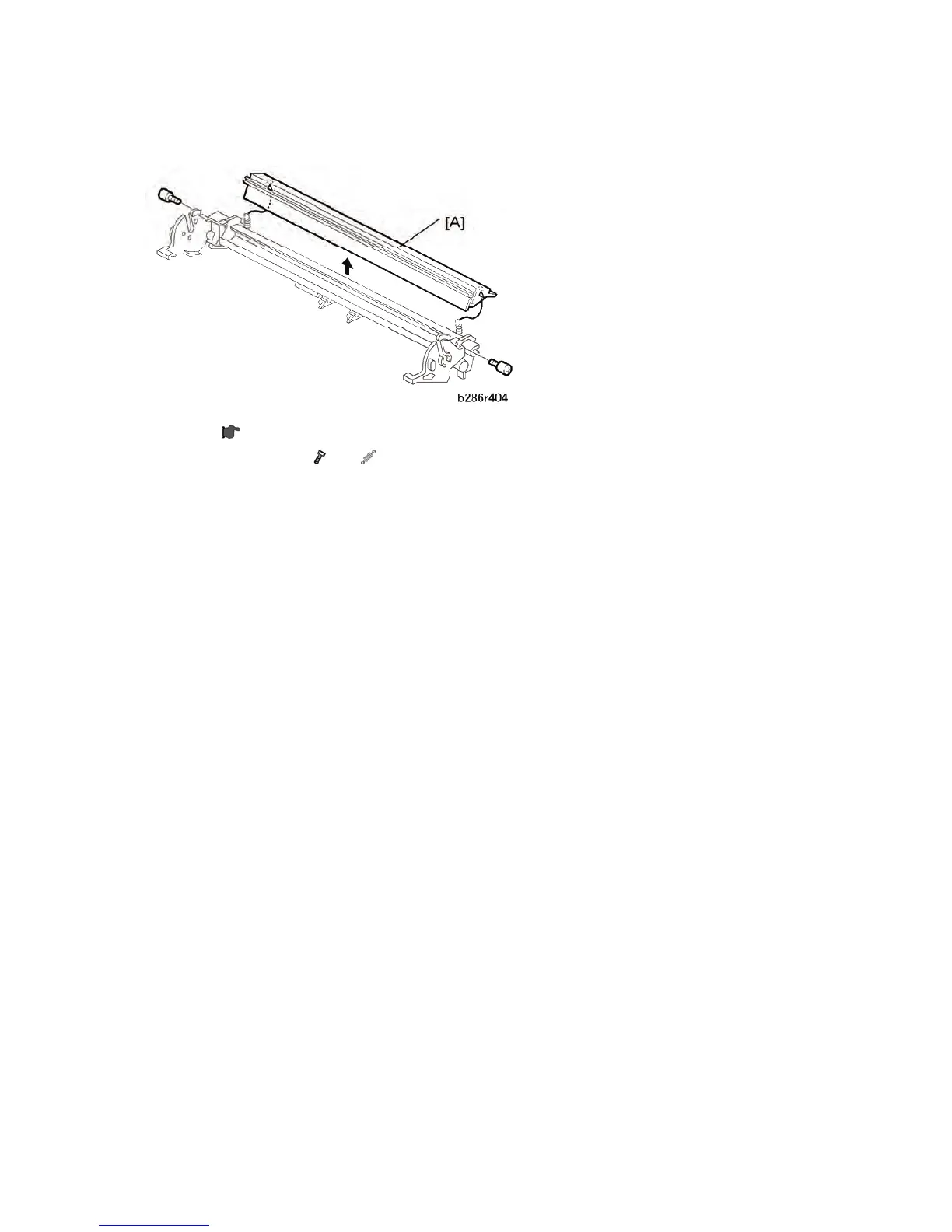

Cleaning blade [A] (
x 2,
x 2)
Reinst
allation
After you replace the cleaning blade:
Do SP2923 (Execute Cleaning Blade Replace Mode)
to apply t
oner to the drum and blade.
The coating of toner reduces friction
between the drum and the cleaning blade and
prevents scratching the drum
surface or bending the blade.
231
233
