Ricoh D093 - Roll Feeder, Table Accessories

Main Machine Installation (D093/D094)
SM 3-27 D093/D094
Installation
Roll Feeder, Table Accessories

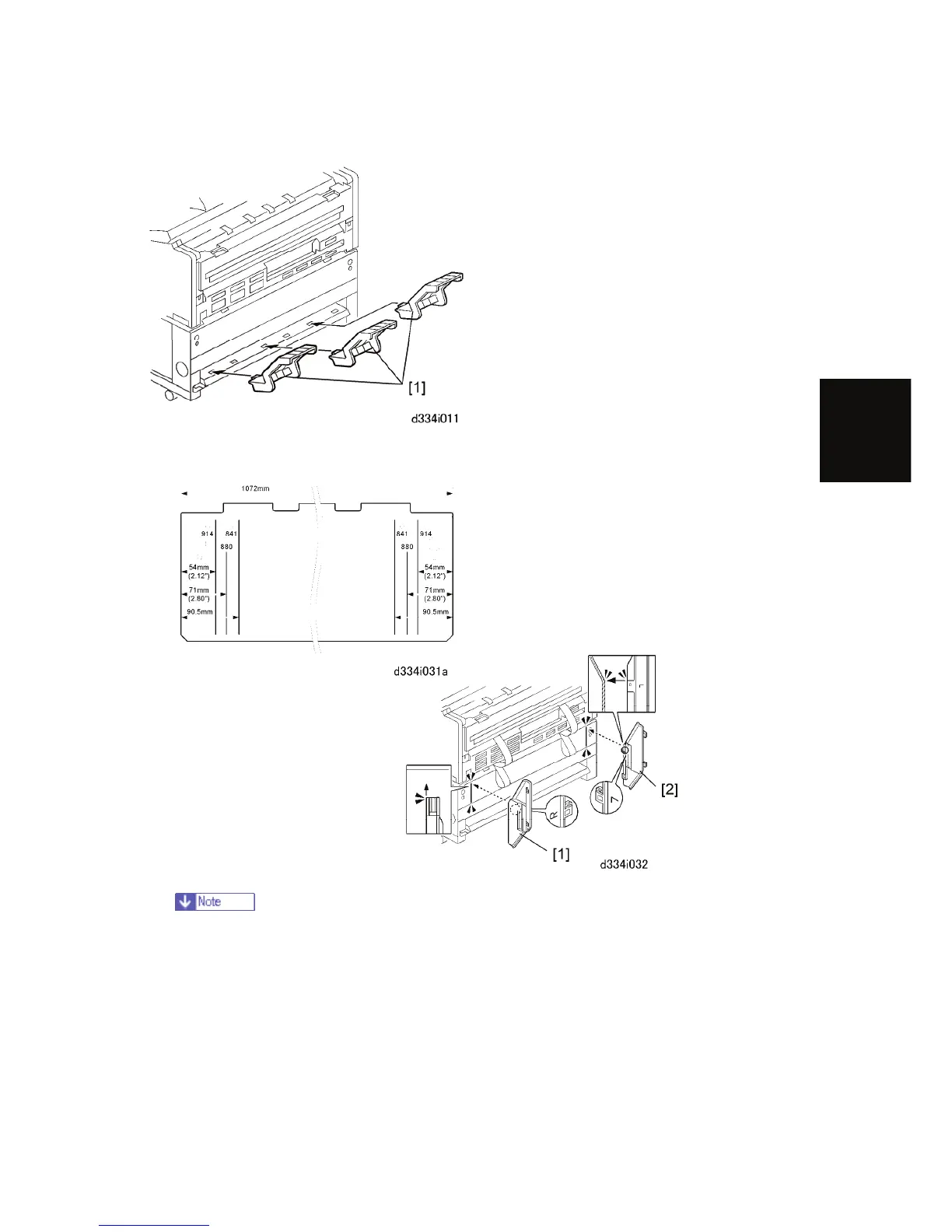

1. Attach the lower output trays [1] to the lower rear of the roller feeder or table (x 3).
 The lines and numbers embossed on the back of the main machine (see the upper
left of the above diagrams) show where to position the exit guide plates for
different paper widths.
2. Position the right exit guide plate [1] as shown, then attach it with its magnet.
3. Position the left exit guide plate [2] as shown, then attach it with its magnet.
