Autoreclosing
Autoreclose Logic Diagrams
External Recloser
If reclosing is performed by an external relay, assert SELOGIC control equations
E3PT, E3PT1, and E3PT2 via control inputs (for example):
E3PT := IN104 Three-Pole Trip Enable (SEL
OGIC Equation)
E3PT1 := IN105 Breaker 1 Three-Pole Trip (SEL
OGIC Equation)
E3PT2 := IN106 Breaker 2 Three-Pole Trip (SEL
OGIC Equation)
Connect the external recloser single-pole trip output signal to IN104, the Circuit
Breaker BK1 trip type signal to IN105, and the Circuit Breaker BK2 trip type sig-
nal to IN106. Other external recloser signals are required; consult the external
recloser documentation for interconnection with the relay.
In installations where the external reclosing relay does not provide three-phase
trip control signals, the TOP (Trip during Open-Pole) Relay Word bit can be used
in the E3PT setting. This Relay Word bit will assert just after a single- or two-
pole trip, and remain asserted until the TOPD timer expires. If a new trip occurs
during this time, the E3PT := TOP setting would then cause a three-pole trip.
Autoreclose Logic Diagrams

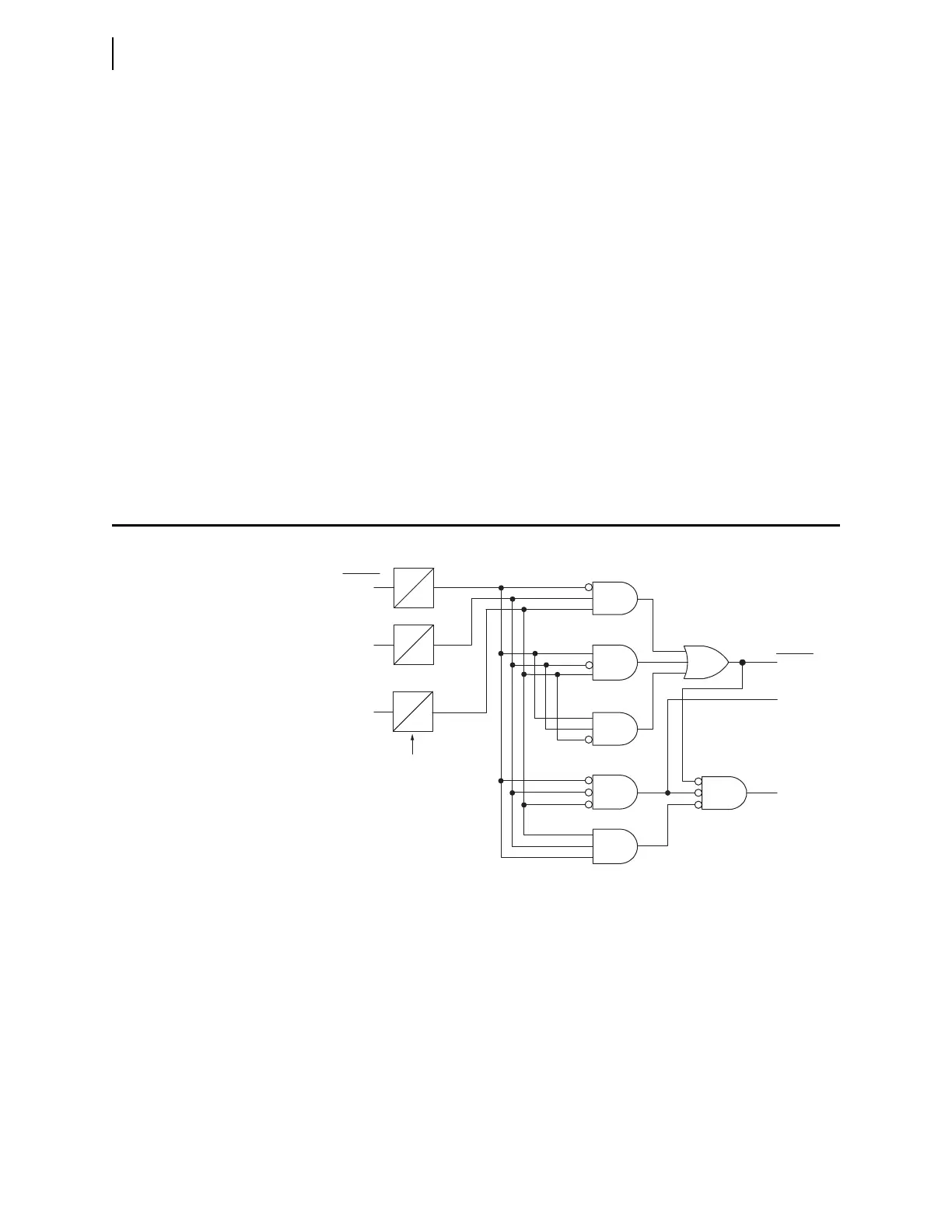

Figure 6.5 Circuit Breaker Pole-Open Logic Diagram—Single-Pole Relays
52AA1
52AB1
52AC1
SPOBK1
3POBK1
52AA1D
52AB1D
52AC1D
Timers in cycles
2POBK1
Note: Similar logic for Breaker 2
0
1.0
0
1.0
0
1.0
Relay
Word Bits
Relay
Word Bits
To Next Page
